Project Overview
Recently, an off-grid energy storage system project undertaken by MECC's local partner in Mexico was successfully commissioned and officially put into operation. Tailored for the local 60Hz power grid environment, MECC 125kW/215kWh all-in-one energy storage cabinets support stable multi-unit grid-tied and off-grid parallel operation, fully matching the actual application demands of local commercial and industrial scenarios.
The system realizes peak load shifting and valley filling, effectively alleviating power supply tension during industrial peak power consumption periods, balancing regional power load distribution, and comprehensively improving the power supply quality, stability and reliability of local industrial and commercial power grids. Serving as a flexible and efficient distributed energy support asset, the project solves the pain points of unstable grid power and high industrial energy consumption in Mexican industrial parks.
The project adopts a multi-machine grid-tied and off-grid parallel architecture. In off-grid mode, the PCS modules operate as voltage sources to dominate microgrid voltage and frequency. Equipped with internal soft-start technology, the system supports smooth belt-load startup and seamless operational transition. It features excellent scalable expansion capability, allowing up to 16 PCS units to run synchronously in grid-tied and off-grid parallel operation to meet the incremental power demand of subsequent industrial expansion.
Core On-site Technical Pain Points
During the deployment of multi-unit parallel off-grid microgrids for Mexican C&I scenarios, the project faced two typical technical challenges prevalent in Latin American power grid environments:
Pain Point 1: Circulating current risk and unstable current sharing in multi-PCS parallel off-grid operation
Traditional multi-inverter parallel systems are prone to inconsistent output parameters among modules, impedance deviation of parallel branches, and microgrid load fluctuations in off-grid mode. These problems easily induce internal circulating current between PCS units, resulting in unbalanced current sharing, local overheating of equipment, reduced overall system efficiency, and even accidental shutdown of individual modules. In addition, most conventional parallel systems require physical DIP switch coding for host machine configuration during multi-machine networking, which leads to cumbersome on-site debugging, difficult later maintenance, and low operational flexibility, failing to adapt to the frequent load changes of local industrial production.
Pain Point 2: Poor regional grid adaptability and high site construction & transformation costs
The Mexican power grid adopts 60Hz frequency and 400Vac three-phase three-wire/four-wire system, with strict EU grid access certification standards. Most conventional energy storage equipment on the market has narrow voltage and frequency adaptation ranges, poor environmental protection grades, and non-integrated design. Discrete equipment requires large-area installation space and complicated wiring construction, resulting in high initial investment and long construction cycles. Moreover, mismatched battery voltage ranges and poor grid compatibility often lead to failure of grid connection filing and low operational income.
MECC Targeted Technical Solutions
Solution 1: Self-developed multi-machine off-grid parallel algorithm + autonomous host competition technology
To eliminate circulating current and unbalanced current sharing risks in multi-unit parallel operation, MECC equips the system with a self-optimized dedicated off-grid parallel algorithm. The system achieves real-time synchronous sampling and dynamic power distribution for all parallel PCS modules, precisely suppressing inter-module circulating current and realizing stable and balanced current sharing output of each unit under full load conditions. No module overload or light-load idling occurs during long-term operation.
In terms of intelligent networking maintenance, MECC adopts software autonomous host competition logic, replacing the traditional physical DIP switch setting method. All PCS modules automatically identify operating status, compete for host authority and complete synchronous networking without manual on-site coding and parameter setting. The design greatly simplifies on-site commissioning procedures, improves system operation and maintenance convenience, and supports random capacity expansion and unit replacement in the later stage without affecting the overall system operation.
Solution 2: High-adaptability integrated all-in-one design to adapt to local grid standards and reduce customer costs

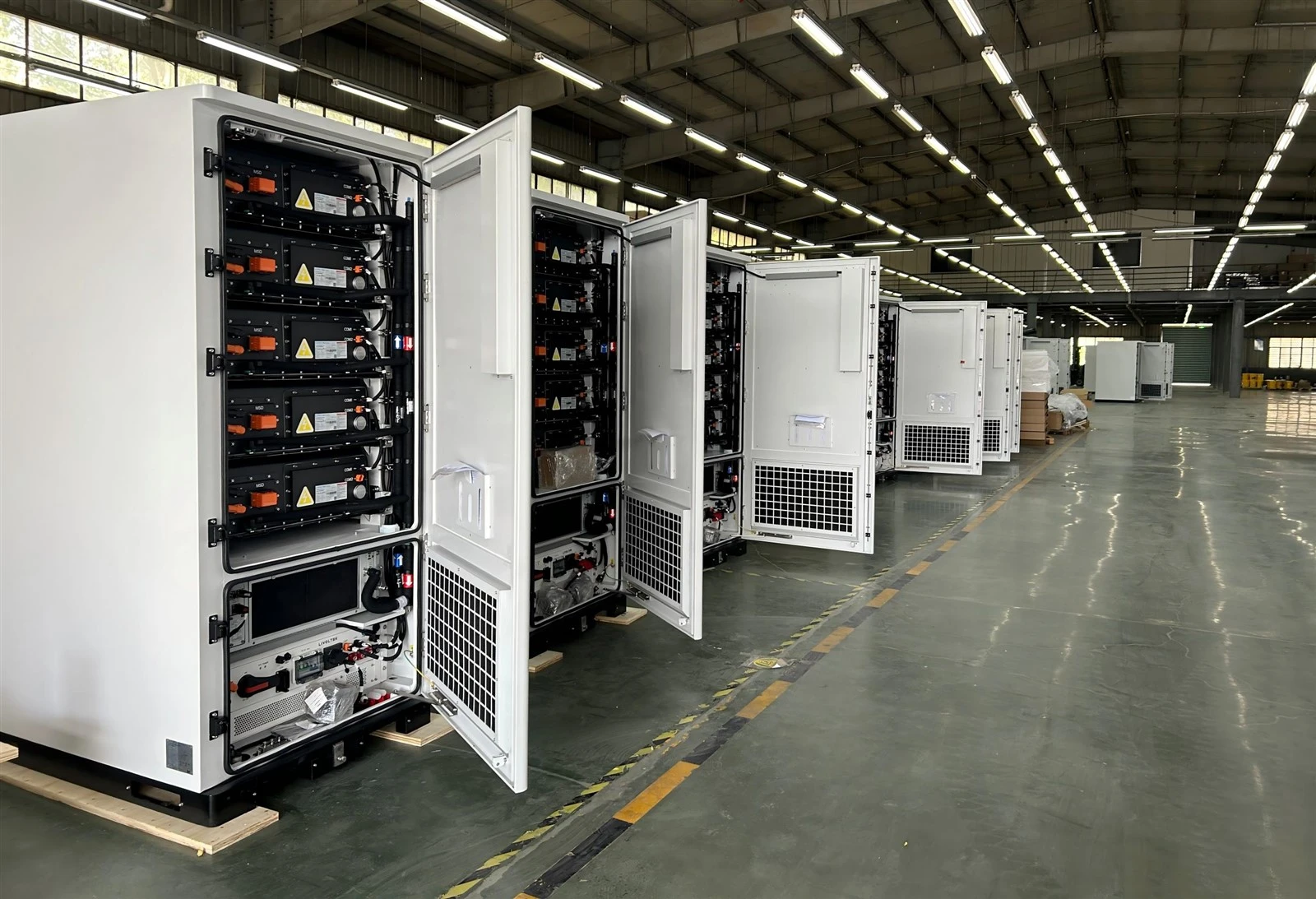

MECC 125kW/215kWh all-in-one cabinet is fully customized for North American and Mexican grid scenarios. The product supports standard 60Hz grid frequency and 400Vac three-phase three-wire/four-wire output, fully complying with EU grid access standards and obtaining complete CE and international grid certification qualifications. It features ultra-wide battery voltage adaptation, compatible with 600V–950V battery systems, covering mainstream lithium iron phosphate and new battery systems in the market.
In terms of protection and environmental adaptability, the control cabin achieves IP6X high dust-proof protection level, and the power cabin adopts IP20 protection, adapting to complex outdoor industrial environments. The highly integrated modular design realizes high power density and compact layout, effectively saving on-site installation floor space, reducing customer civil construction and equipment investment costs, and shortening project delivery cycles. Supported by cloud monitoring and mobile APP remote management functions, the system realizes unattended intelligent operation, further reducing daily operational and maintenance costs.
Product Core Advantages & Operational Value
The MECC 125kW string-type modular PCS adopted in the project has fully verified market maturity and scalability:
1. Full-scenario compatibility: Standard string-type modular architecture adapts to source-grid-load integration and various commercial and industrial energy storage scenarios;
2. Global certification compliance: Passed national standard, CE and multiple European and American grid certifications, meeting local grid access specifications;
3. Multi-battery compatibility: Applicable to lithium iron phosphate, sodium-ion, lead-carbon and various new energy battery systems;
4. Strong grid adaptability: Mature grid-tied, off-grid and multi-unit parallel algorithms ensure stable operation under complex grid fluctuation conditions;
5. High operational reliability: Verified by long-term field operation in multiple overseas scenarios, with low failure rate and strong environmental adaptability.
Project Functions & Industry Impact
For local Mexican industrial and commercial enterprises, the project realizes dual value of economic benefit and power supply resilience. Through peak-valley load shifting, it effectively cuts high electricity costs during industrial peak production periods and creates stable energy arbitrage income. The multi-unit off-grid backup capability solves the problem of unstable local grid power supply, avoids production shutdown losses caused by grid fluctuations or power outages, and guarantees continuous and stable operation of industrial loads.
Technically, the project fully verifies the excellent performance of MECC all-in-one energy storage cabinets in 60Hz Latin American grid scenarios, especially the superior stability of multi-unit parallel off-grid operation and intelligent networking capabilities. It provides a replicable and scalable standard technical solution for commercial and industrial energy storage and microgrid construction in Mexico and even the whole Latin American region.
From the industry perspective, the highly integrated, low-cost and high-reliability product model injects new vitality into the North American energy storage market, helping local customers achieve refined energy management, energy saving and efficiency improvement, and green low-carbon transformation.
Future Outlook
In the future, MECC will further deepen the Latin American local market, fully leverage regional resource advantages, and continuously consolidate core competitiveness in products, brands and services. By quickly responding to personalized customer needs and creating long-term operational value for clients, MECC will steadily advance global strategic layout. Rooted in the North American market and facing the world, MECC will continue to empower regional energy transformation and upgrading with professional energy storage technology and high-quality solutions, opening a new chapter for globalized brand development.
