Solar Air Conditioner

Working Principles



Photovoltaic Conversion: Solar panels convert solar energy into electrical energy, which is then used to power the compressor, evaporator, and other components of the air conditioner, thus achieving the refrigeration effect, similar to the operation of a traditional electric air conditioner, except that the power source is solar energy.

Solar Thermal Conversion: Solar collectors are used to heat the heat transfer medium, such as water or antifreeze. The heated heat transfer medium is then used to power an absorption chiller or other thermally activated cooling systems. For example, in a solar absorption air conditioning system, the heat from the solar collector is used to evaporate the refrigerant in the absorber, which then goes through a series of processes to cool the air.





System Composition



Solar Collector: It is used to collect solar energy and convert it into heat energy. There are various types of solar collectors, with vacuum tube collectors being the most commonly used. Vacuum tube collectors can be further divided into heat pipe vacuum tube collectors, all-glass vacuum tube collectors, and through-flow vacuum tube collectors.

Refrigeration System: The refrigeration system of solar air conditioners is mainly based on absorption refrigeration technology. Working fluid pairs such as lithium bromide-water and ammonia-water are used. Among them, the lithium bromide-water working fluid pair is more widely used due to its good safety and economy.

Automation Control System: This system is used to control various operating parameters of the device and provide safety protection, ensuring the stable and efficient operation of the solar air conditioner.





Types



Off-grid Solar Air Conditioners: These air conditioners can operate independently without being connected to the power grid. They are usually equipped with a backup power source like a solar battery to ensure energy supply during evenings or cloudy days.

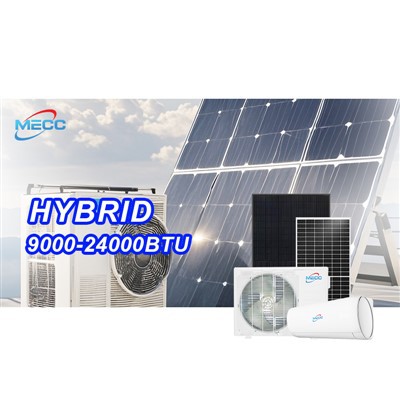

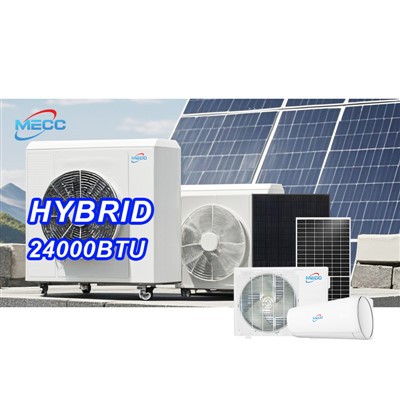

Hybrid Solar Air Conditioners: These systems need to be connected to the power grid and use grid power at night or on overcast days. They give priority to solar energy when available and switch to grid power when solar energy is insufficient.





Advantages



Energy Conservation and Environmental Protection: Solar air conditioners use solar energy, a renewable energy source, without consuming non-renewable energy sources such as coal and oil, and do not produce greenhouse gases or harmful substances during operation, which helps reduce environmental pollution and ease the pressure on energy supply.

Good Seasonal Adaptability: The solar radiation intensity is high in summer when the demand for air conditioning is the greatest. The cooling capacity of solar air conditioners can increase with the increase in solar radiation energy, which can well meet the cooling needs in summer.

Low Operating Costs: Although the initial installation cost of solar air conditioners is relatively high, solar energy is free, and the operating costs are low during long-term use.





FAQ



Q: How much does a solar air conditioner cost?

A: The cost of a solar air conditioner can vary significantly. It depends on factors like the capacity, type (off grid or hybrid), quality of components, and installation requirements. Generally, the initial investment is higher than that of a traditional air conditioner, ranging from a few thousand to over ten thousand dollars, including the cost of solar panels, the air conditioning unit, and installation.



Q: Can a solar air conditioner work on cloudy days?

A: Off grid solar air conditioners with battery storage can still operate on cloudy days, drawing power from the stored energy in the batteries. Hybrid solar air conditioners can switch to grid power when solar energy is insufficient on cloudy days. However, the overall performance may be affected as the amount of solar energy collected is reduced.



Q: How long does a solar air conditioner last?

A: High quality solar air conditioners can have a lifespan of 15 - 25 years. The solar panels usually have a warranty of 20 - 25 years, while the air conditioning unit itself can last 10 - 15 years with proper maintenance. Regular maintenance, such as cleaning the solar panels and checking the refrigerant levels, can help extend its lifespan.



Q: Do I need a large space to install a solar air conditioner?

A: The space required depends on the capacity of the solar air conditioner and the number of solar panels. For a typical residential unit, you may need around 10 - 20 square meters of rooftop space to install the solar panels. But if you have limited rooftop space, some compact solar air conditioner models or those with more efficient panels may be suitable.



Q: Is it difficult to maintain a solar air conditioner?

A: Maintenance is not overly difficult. Regularly clean the solar panels to ensure maximum sunlight absorption. Check the refrigerant levels and the operation of the air conditioning unit periodically, similar to a traditional air conditioner. Also, monitor the battery condition if it's an off grid system. Professional maintenance is recommended at least once a year to ensure optimal performance.

We're well-known as one of the leading solar air conditioner manufacturers and suppliers in China. If you're going to wholesale custom made solar air conditioner with competitive price, welcome to get more information from our factory.
