Energy Storage Cabinet
High-Capacity Energy Storage Cabinet Manufacturer for C&I
MECC energy storage cabinets are integrated solutions combining LiFePO4 battery modules, intelligent BMS, PCS (Power Conversion System), and thermal management systems, designed for commercial & industrial (C&I) and utility-scale energy storage projects. With a modular design, single cabinet capacity ranges from 50kWh to 500kWh, and multiple cabinets can be paralleled to meet 1MWh+ large-scale energy storage needs. The cabinet adopts a sealed and dustproof structure (IP54 rating) with independent fire protection and temperature control systems, effectively preventing thermal runaway and ensuring safe operation in high-temperature, humid, or dusty environments. Equipped with a remote monitoring platform, it supports real-time tracking of battery status, power output, and fault alerts, facilitating efficient operation and maintenance.
An energy storage cabinet, also known as an energy storage box or energy storage container, is a device or facility used to store electrical energy. It plays a crucial role in the fields of new energy and smart grids. The following presents a detailed account:
Structure
Battery Module: This is the core component of the energy storage cabinet, usually composed of multiple battery cells connected in series or parallel. Common battery types include lithium-ion batteries, lead-acid batteries, and flow batteries. Lithium-ion batteries are widely favored for their high energy density, long cycle life, and low self-discharge rate.
Power Conversion System (PCS) : The PCS is responsible for converting the DC power stored in the battery into AC power for grid connection or supply to electrical equipment. It can also control the charging and discharging process of the battery, adjusting parameters such as voltage and current to ensure the stable operation of the energy storage system.
Management System: The energy storage cabinet management system monitors and manages the entire energy storage system in real-time. It monitors parameters such as the voltage, current, temperature, and state of charge of each battery cell, and performs equalization and protection operations to prolong the service life of the battery and ensure its safe operation.
Electrical Protection and Control Equipment: This includes circuit breakers, fuses, relays, and other devices to protect the energy storage cabinet and the entire power system from overcurrent, overvoltage, short circuits, and other faults.
Functions
Energy Storage: The most fundamental function of the energy storage cabinet is to store electrical energy. It can store the excess electricity generated by new energy power generation equipment such as solar panels and wind turbines during periods of low electricity consumption and release it during peak electricity consumption periods to achieve the time-shifted utilization of electrical energy.
Peak Shaving and Valley Filling: In the power grid, energy storage cabinets can play the role of peak shaving and valley filling. They absorb electricity from the grid during low-load periods (valley periods) and supply electricity to the grid during high-load periods (peak periods), thereby balancing the load of the power grid, improving grid stability and reliability, and reducing the construction cost of power grid infrastructure.
Backup Power Supply: Energy storage cabinets can serve as backup power sources in the event of power outages or emergencies. For example, in data centers, hospitals, and other places with high power reliability requirements, energy storage cabinets can provide temporary power support to ensure the normal operation of key equipment and prevent data loss and other losses.
Frequency and Voltage Regulation: By quickly charging and discharging, energy storage cabinets can help regulate the frequency and voltage of the power grid, maintaining the stability of the power grid's electrical parameters and improving the quality of power supply.
Applications
Power Generation Side: It is widely used in photovoltaic power plants and wind farms to store the unstable electrical energy generated by new energy sources and improve the predictability and stability of power generation.
Grid Side: It is used for grid peak shaving, valley filling, frequency modulation, and voltage regulation to enhance grid operation efficiency and reliability.
User Side: It is used in industrial and commercial enterprises and residential communities for energy management. Users can use energy storage cabinets to store electricity during low electricity price periods and use it during high electricity price periods, reducing electricity costs.

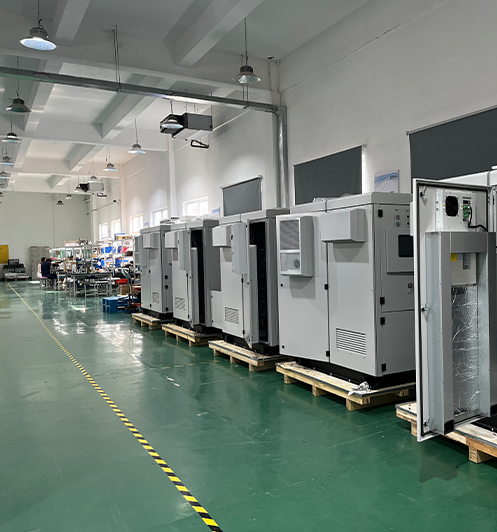

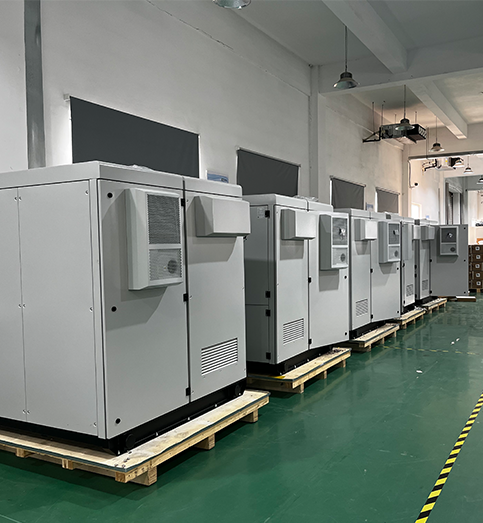

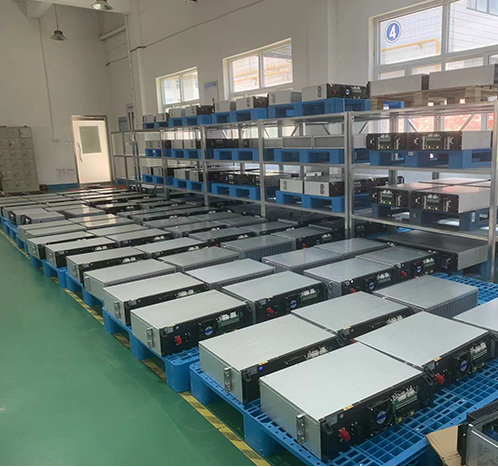

Factory And Cases
FAQ
Q1: What are the main components of an energy storage cabinet?
A: The main components include a battery module (such as lithium - ion or lead - acid batteries), a Power Conversion System (PCS) for converting DC to AC power and controlling charge - discharge processes, a management system for monitoring and protecting the whole system, and electrical protection and control equipment like circuit breakers and fuses.
Q2: How does an energy storage cabinet help with power grid stability?
A: It helps by performing peak - shaving and valley - filling. During low - load (valley) periods, it absorbs electricity from the grid, and during high - load (peak) periods, it supplies electricity back to the grid. It also regulates grid frequency and voltage by quickly charging and discharging, maintaining stable electrical parameters.
Q3: What types of batteries are commonly used in energy storage cabinets?
A: Lithium - ion batteries are very common due to their high energy density, long cycle life, and low self - discharge rate. Lead - acid batteries are also used in some cases, especially where cost - effectiveness is a major concern. Flow batteries are also emerging as an option for large - scale energy storage applications.
Q4: Can an energy storage cabinet be used as a backup power source for homes?
A: Yes, it can. In case of power outages, an energy storage cabinet at home can provide temporary power to essential appliances. It stores electricity during normal times, and when the power grid fails, it discharges to supply power, ensuring continuous operation of important devices like refrigerators, lights, and communication equipment.
Q5: What are the applications of energy storage cabinets on the power generation side?
A: On the power generation side, especially in photovoltaic power plants and wind farms, energy storage cabinets store the intermittent electrical energy generated by solar panels and wind turbines. This helps to make the power output more predictable and stable, reducing the impact of weather - dependent generation on the grid.
We're well-known as one of the leading industrial and commercial pv energy storage cabinets manufacturers and suppliers in China. If you're going to wholesale custom made industrial and commercial pv energy storage cabinets with competitive price, welcome to get more information from our factory.
