Model |
L48200 |
|
|
Specification |
48V200Ah |
|
|
Capacity |
9.6KWh |
|
|
Standard discharge current |
50A |
|
|
Max. discharge current |
100A |
|
|
Working voltage range |
40.5-54VDC |
|
|
Standard Voltage |
48VDC |
|
|
Max. charging current |
50A |
|
|
Max. charging voltage |
54V |
|
|
Protection level |
IP20 |
|
|
Max of parallel |
15PCS |
|
|
Warranty |
5~ 10 Years |
|
| Product Size |
489*925*170mm
|
|
| Package Size |
525*910* 375mm
|
|
| Net weight | 102kg | |
| Gross weight | 112kg | |
-
Safer
-
Reliable
-
Flexible
-
Convenient

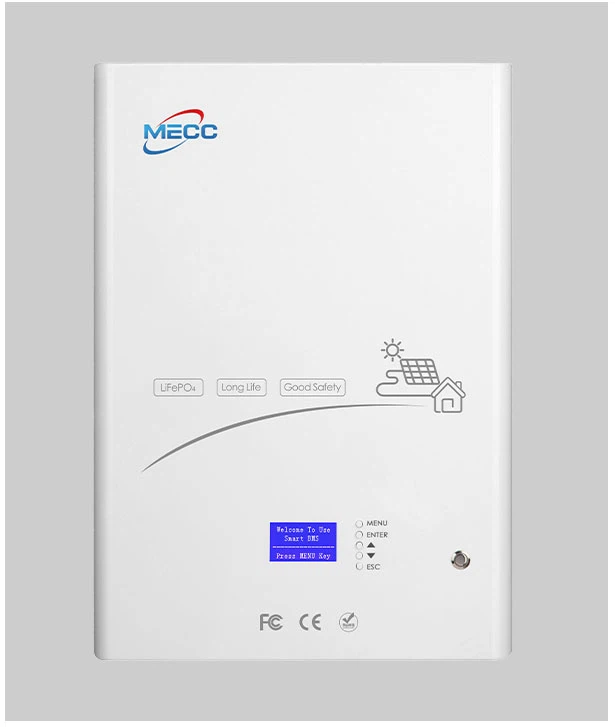

Power wall 48V 100AH

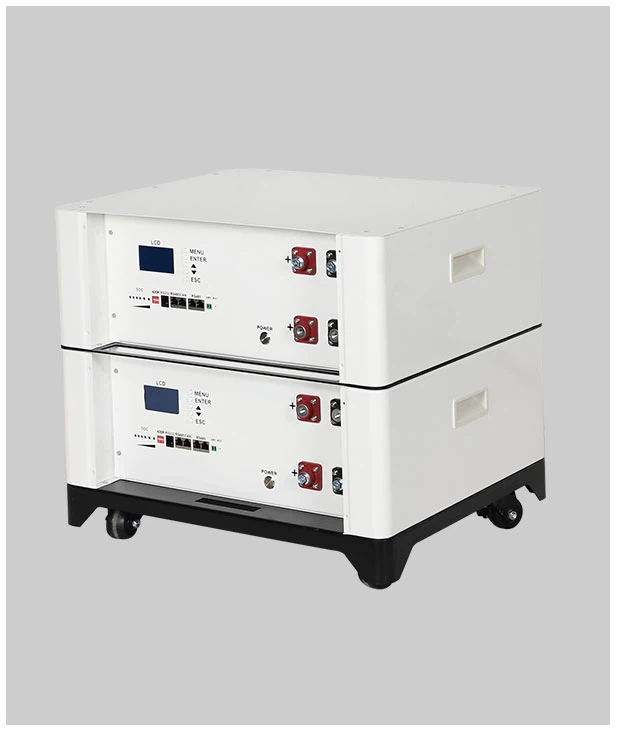

Stacked 48V 100AH

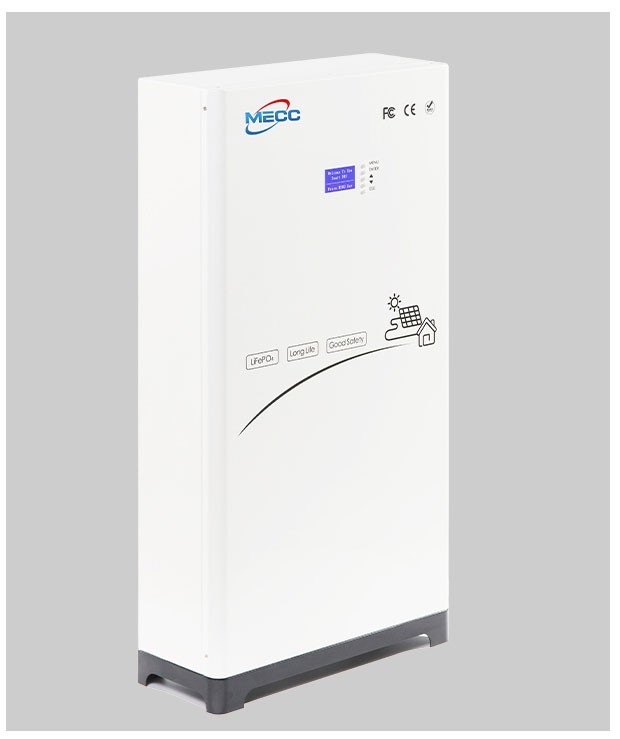

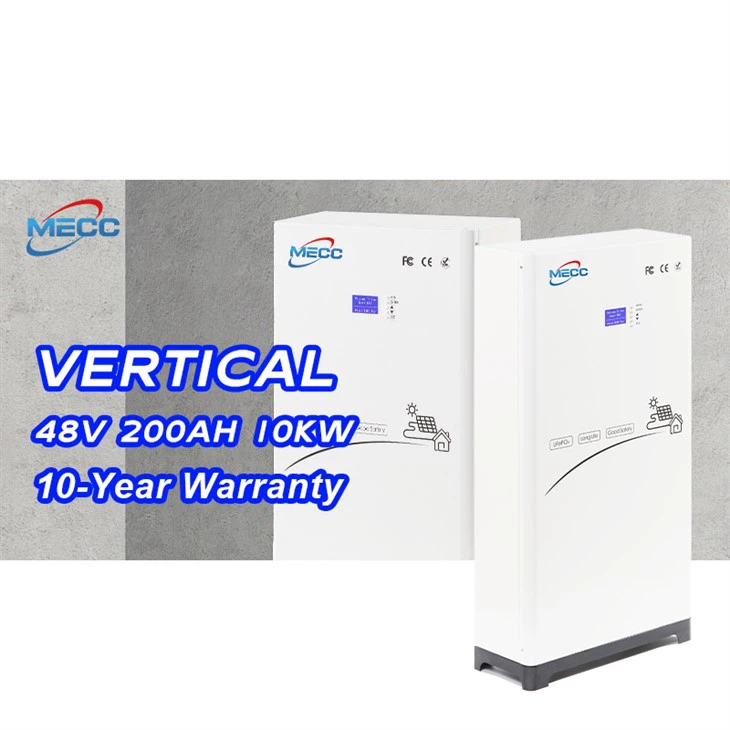

Vertical 48V 200AH
Advantages
Role of the Electrolyte
The electrolyte in a 48V 200AH LiFePO₄ battery plays a crucial role in the battery's operation. It acts as a conductive medium for the lithium ions. The electrolyte's composition is carefully designed to allow the smooth movement of ions between the cathode and the anode. It has a specific ionic conductivity that enables efficient charge and discharge cycles. For example, a good electrolyte should have a low resistance to ion movement, which helps in minimizing energy losses during the transfer of lithium ions. Moreover, the electrolyte also helps in separating the cathode and the anode, preventing direct contact that could lead to short - circuits. It provides a stable environment for the chemical reactions to occur, and its properties influence the overall performance, safety, and lifespan of the battery.
Skilled and Professional Workforce
The success of our lithium battery factory also depends on our skilled and professional workforce. Our employees are trained in the latest battery manufacturing technologies and techniques. They have in-depth knowledge of lithium battery chemistry and engineering. The production team works with great precision and attention to detail, while the research and development team is constantly striving to improve battery performance and innovate new battery designs. Our dedicated employees are the driving force behind the factory's growth and reputation for excellence.
Commitment to Environmental Sustainability
Our lithium battery factory is committed to environmental sustainability. We have implemented various measures to reduce our environmental impact. The production processes are designed to minimize waste and energy consumption. We recycle and reuse as much of the waste materials as possible, such as the scrap from electrode production. Additionally, we are constantly exploring and adopting new technologies and materials that are more environmentally friendly. By producing lithium batteries, which are a key component in clean energy storage and electric vehicles, we are also contributing to the global transition towards a more sustainable energy future.
