51.2V 314Ah Lifepo4 Lithium Battery

Nominal Capacity: 51.2V 314Ah
Battery Type: LiFePO4 Battery pack
DOD: 90%
Lifespan: ＞6000 Cycles
Communication: CAN/RS232/RS485
Certification: IEC/CE/UN38.3/MSDS
Application: Home solar system, UPS, Solar battery Energy Storage System
Installation: Ground mounted

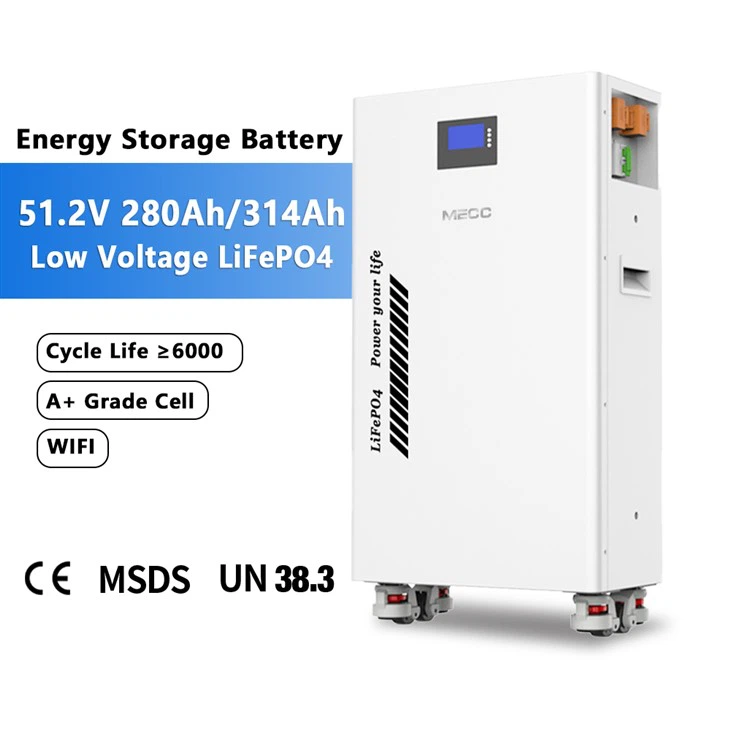

51.2V 314AH LiFePO4 Lithium Battery For Residential Energy Storage System

Our 51.2V 314Ah energy storage battery is a high-performance power solution designed for demanding residential applications. Built with advanced lithium iron phosphate (LFP) technology, it delivers exceptional energy density, long cycle life, and unmatched safety.

Detailed Product Features:

Massive Capacity: Store abundant energy to power your operations during peak demand or grid outages.

Long Cycle Life: Enjoy thousands of cycles without significant capacity degradation, ensuring long-term reliability and cost-effectiveness.

Superior Safety: LFP chemistry provides inherent safety, preventing thermal runaway and fire hazards

Scalable System: Easily combine multiple units to create customized energy storage solutions for any scale.

Efficient Charging and Discharging: Optimize energy utilization and minimize charging times.

Robust Construction: Built to withstand harsh environments and heavy-duty use.

Ideal Applications:

Solar and Wind Energy Storage: Maximize self-consumption, reduce electricity bills, and achieve energy independence.

Backup Power: Protect critical operations from power outages with reliable and long-lasting backup power.

Solar Energy System: Home/ Residential solar system, household off-grid solar systems

Innovative Design

Sleek, modern, and user-friendly design tailored for home use

Safe & Reliable

Advanced safety mechanisms for maximum reliability in every environment

Quick & Easy Installation

Simplified installation process for a hassle-free setup experience

Certified Quality

Meets all required industry certifications for quality and safety standards

product parameters

Nominal Voltage	51.2V
Nominal Capacity	280Ah/314AH
Nominal Energy	14.336KWH/16KWH
Battery Type	liFePO4(LFP)
Cycle life	≥6000 cycles @80% DOD
Charge voltage	56
Operation Voltage Range	43.2～58.4V
Max.charge current	140A ( Optional 250A )/160A ( Optional 250A )
Max.discharge current	140A ( Optional 250A )/160A ( Optional 250A )
Discharge cut-off voltage	43.2
Charge cut-off voltage	58.4
IP class	IP20
*Pack dimension LWH*	500233880mm
*Package dimension LWH*	943563396mm
Net weight	117KG/125KG
Gross weight	130KG/147KG
Protocol (Optional)	Canbus / RS485 / RS232
Monitoring	Bluetooth / WLAN Optional
Pack Certificates	UN38.3, MSDS
Cell Certificates	UN38.3, MSDS, IEC62619, CE, UL1973
10 Years Warranty, More than 20 Years Lifetime

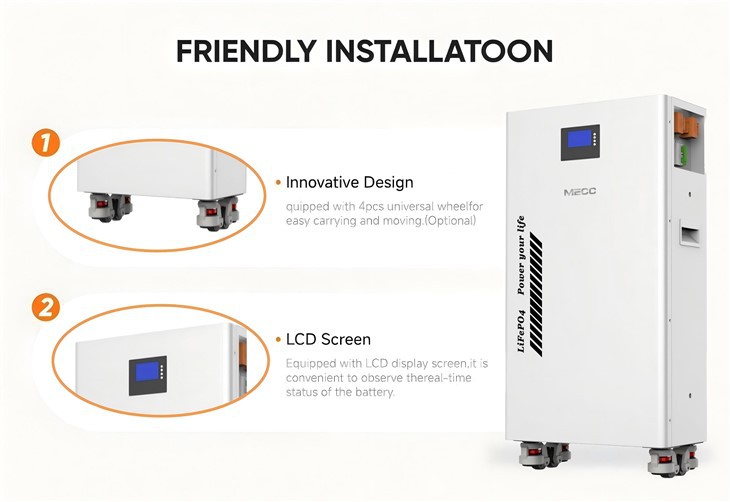

Friendly Installation

Innovative Design

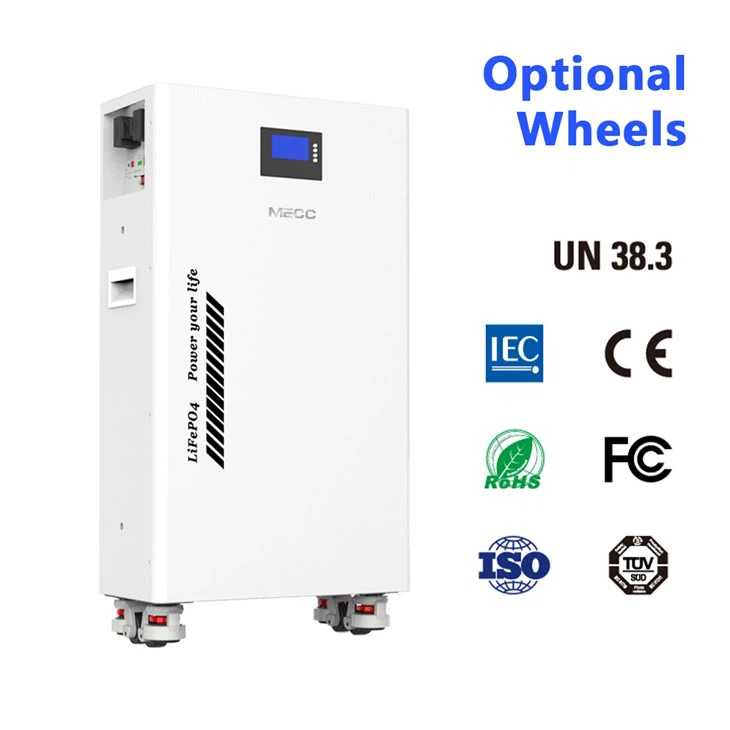

Equipped with 4pcs universal wheel for easy carrying and moving.(Optional)

LCD Screen

Equipped with LCD display screen, it is convenient to observe the real-timestatus of the battery.

314Ah lifepo4 battery
