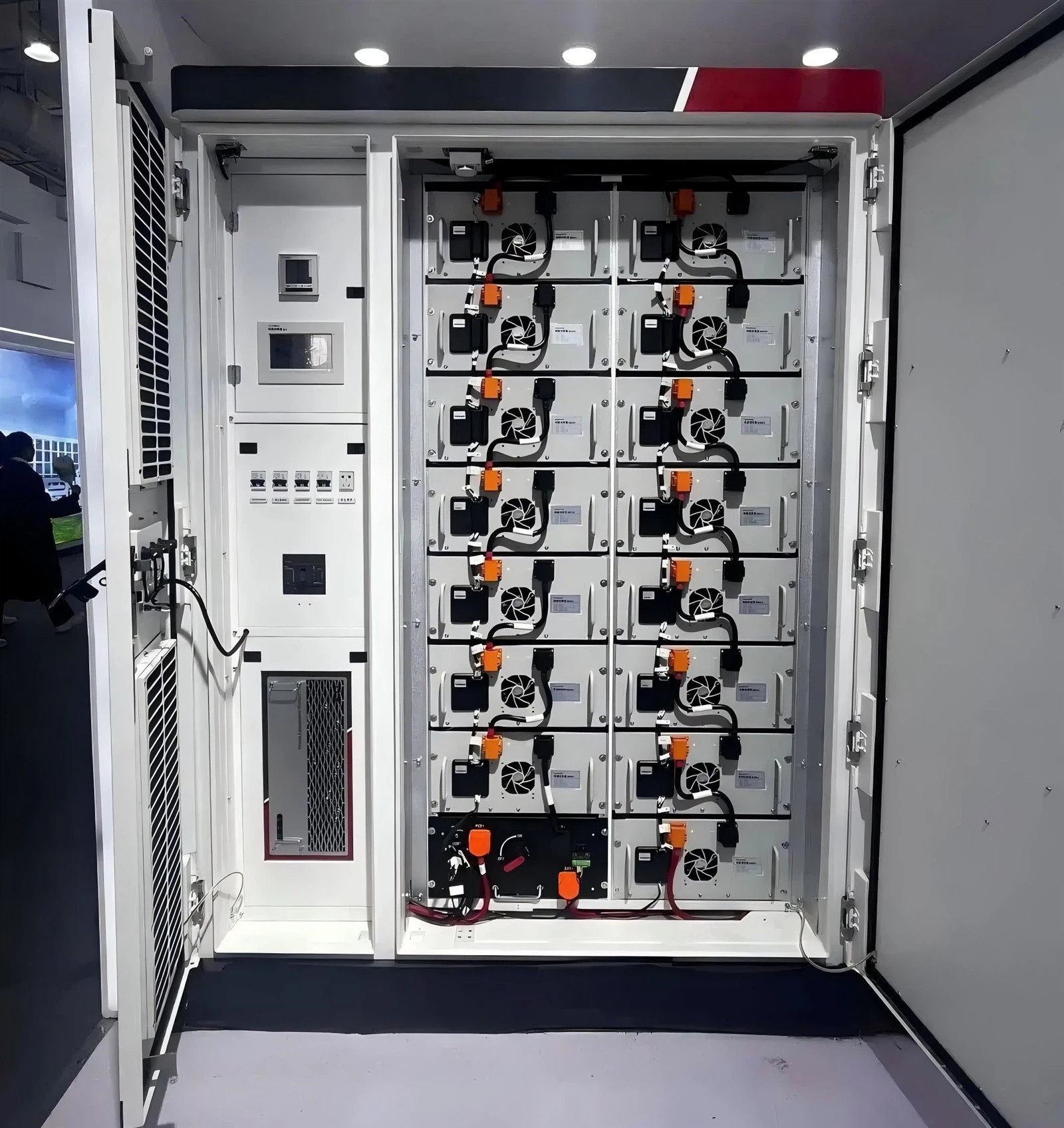

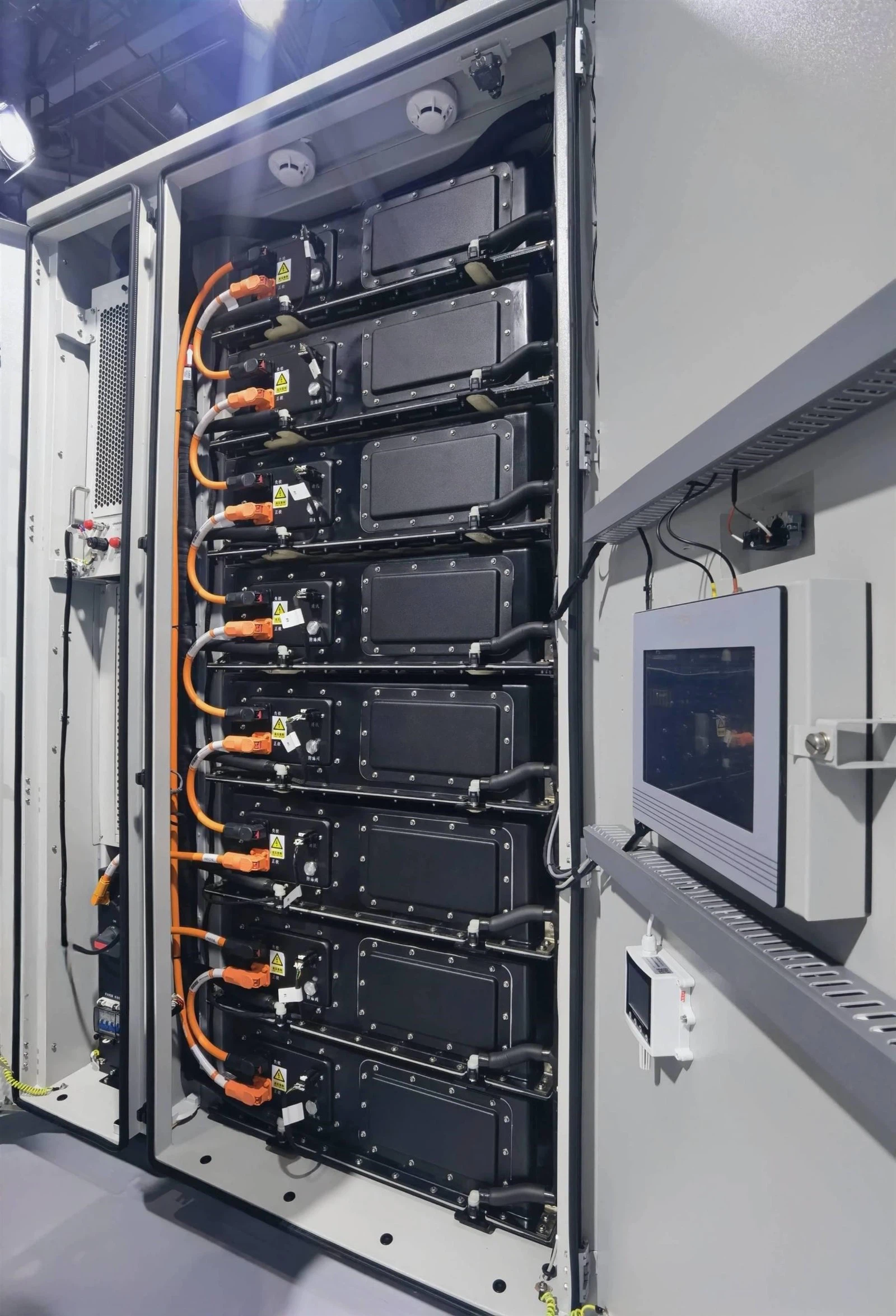

An energy storage cabinet is a device or system primarily used for storing electrical energy. It usually consists of one or more energy storage units, such as batteries, as well as related power electronics and control systems. Energy storage cabinets play a crucial role in various applications, including renewable energy integration, as they store excess energy generated by solar panels or wind turbines for future use. It can also be used in the power grid to improve stability and reliability by providing additional power or compensating for power fluctuations during peak demand periods. In addition, energy storage cabinets are commonly used in off grid or distributed energy systems to ensure a continuous and stable power supply for various electrical loads.
Components
Battery module: It is the core component for storing electrical energy, and common types include lithium-ion batteries and lead-acid batteries.
Battery Management System (BMS): monitors and controls the status, charging, and discharging processes of batteries, protecting them from overcharging, overdischarging, overcurrent, and other abnormal conditions.
Inverter: converts stored DC power into AC power, making it suitable for electrical appliances and the power grid.
Control system: Manage the overall operation of the energy storage cabinet, coordinate battery modules, BMS, and inverters to optimize performance.
Cooling system: keeps the temperature of the energy storage unit within a safe range, usually composed of components such as fans and radiators.
Housing and connectors: provide protection and mechanical support, and ensure connections with other devices for efficient energy transfer.
Discrete energy storage cabinet: Each component is independently placed inside the cabinet and connected by cables, with low failure rate, easy maintenance and expansion, but occupying more space.
Combination energy storage cabinet: Components are installed in separate cabinets and can be combined freely, with high flexibility, but the connection is complex and installation is difficult.
Base type energy storage cabinet: The battery pack and power electronic equipment are installed on a base, which is sealed and suitable for outdoor use. It has a small footprint, but the energy storage capacity is relatively small.
Integrated energy storage container: All components are integrated into one cabinet, compact, portable, and easy to install, but poor scalability makes it difficult to troubleshoot.
Features
High safety: Equipped with advanced battery management system to ensure the safe operation of the battery pack in various environments.
Efficient: With high energy conversion efficiency, it can quickly convert electrical energy into chemical energy, and vice versa.
Flexible Expansion: The battery pack can be flexibly increased or decreased as needed to meet different application scenarios.
Intelligent management: Through advanced battery management system, real-time monitoring of battery status can be achieved, realizing intelligent charging and discharging management.
Application Scenarios
Power system: It can release electrical energy during peak load periods to alleviate grid pressure, provide emergency power in case of grid faults or power outages, and participate in grid frequency regulation, voltage regulation, and other auxiliary services to improve grid stability and reliability.
New energy generation: In the fields of wind and photovoltaic power generation, it can solve the intermittent and unstable problems of new energy generation. When there is excess new energy generation, the energy storage cabinet can store the excess electricity and release it when there is insufficient power generation.
In the industrial sector: It can be used as a backup power source and power regulation device in industrial enterprises. It can quickly switch to a backup power source in the event of a power outage or emergency to ensure the continuous operation of the production line.
Household and commercial: For household and commercial users, it can be used as a backup power source and part of an energy management system. It can provide stable power support during peak electricity prices or unstable power supply, reducing electricity costs.
How does an energy storage cabinet work?
An energy storage cabinet works mainly through the following processes: energy storage, energy conversion, intelligent control, and energy release. The specific working principle is as follows:
Energy Storage
Charging: When the power supply is sufficient, such as during low grid loads or when there is excess renewable energy generation, the energy storage cabinet will charge. The charging equipment inside the cabinet converts electrical energy into chemical energy and stores it in battery modules. For example, in a photovoltaic power generation system, when the sunlight is bright and the electricity generated by the solar panels exceeds immediate consumption, the excess electricity is used to charge the energy storage cabinet.
DC to AC conversion: The inverter in the energy storage cabinet converts the DC power stored in the battery module into AC power. This is because the power grid and most electrical equipment in daily life use alternating current. For example, household appliances such as refrigerators, air conditioners, and televisions use AC power, so energy storage cabinets need to convert the stored DC power into AC power to meet the needs of these devices.
Voltage and frequency regulation: According to the needs of the power grid or equipment, the inverter can also regulate the output voltage and frequency. The voltage and frequency of the power grid may fluctuate due to various factors, and energy storage cabinets can adjust the output power to meet the requirements of the power grid or equipment, ensuring stable operation.
Status monitoring: The energy management system (EMS) and battery management system (BMS) in the energy storage cabinet play an important role in intelligent control. BMS monitors the status of the battery in real-time, including parameters such as state of charge (SOC), state of health (SOH), and temperature. EMS monitors the status of the power grid and the operation status of energy storage equipment.
Strategy optimization: EMS optimizes the charging and discharging strategy of the energy storage cabinet based on monitoring data. For example, it can predict the peak and valley periods of electricity consumption based on historical data and real-time information, and control the battery to charge during low load periods and discharge during high load periods, thereby achieving optimal economic benefits and grid stability.
Meeting peak demand: When the grid load is at its peak or renewable energy supply is insufficient, the energy storage cabinet releases the stored energy. The battery module discharges the stored chemical energy in the form of electrical energy, which is converted into alternating current by the inverter and supplied to the power grid or equipment to meet energy demand. For example, in summer, when the air conditioning load is high and the power grid load reaches its peak, the energy storage cabinet can release the stored energy to alleviate the pressure on the power grid.
Provide emergency power supply: In case of power grid failure or outage, the energy storage cabinet can quickly switch to emergency power mode and provide necessary power support. For example, in hospitals, data centers, and other places that require continuous power supply, energy storage cabinets can ensure the normal operation of equipment and the safety of personnel and property by providing emergency power.
1.Q: What are the main components of an energy storage cabinet?
A: An energy storage cabinet mainly consists of energy storage elements like batteries (such as lithium ion batteries), power conversion systems (including inverters and chargers), control units for monitoring and regulating the charging and discharging processes, and thermal management systems to maintain optimal operating temperatures.
2.Q: How long can an energy storage cabinet store energy?
A: The energy storage duration depends on multiple factors, including the battery capacity, the type of batteries used, and the power consumption rate during discharge. For example, a typical residential scale energy storage cabinet with a lithium ion battery capacity of 10 kWh, when discharged at a rate of 1 kW, can store energy for about 10 hours. However, in real world applications, due to factors like battery degradation and inefficiencies in the system, the actual storage time may be slightly less.
3.Q: Can an energy storage cabinet be used in extreme weather conditions?
A: Most modern energy storage cabinets are designed to operate within a certain temperature range. For instance, many lithium ion based energy storage cabinets can function properly in temperatures ranging from -20°C to 50°C. Specialized thermal management systems are installed to help the cabinet adapt to extreme temperatures. In extremely cold weather, heating elements may be used to warm the batteries, while in hot weather, cooling systems are activated to prevent overheating. But if the temperature goes far beyond the designed range, the performance and lifespan of the energy storage cabinet may be severely affected.
4.Q: How is the safety of an energy storage cabinet ensured?
A: Safety is a top priority in the design of energy storage cabinets. They are equipped with multiple safety features. Over charge and over discharge protection circuits are installed to prevent battery damage and potential fire hazards. Thermal runaway protection mechanisms are in place to detect and manage abnormal temperature increases. In addition, the cabinets are made of fire resistant materials, and some models have gas detection systems to monitor for any potentially dangerous gas leaks during battery operation.
5.Q: What are the different applications of an energy storage cabinet?
A: Energy storage cabinets have a wide range of applications. In the residential sector, they can store excess solar energy generated during the day for use at night, reducing reliance on the grid and saving electricity costs. In commercial buildings, they can be used for peak shaving, reducing electricity bills by using stored energy during high tariff periods. In the industrial field, they provide backup power to ensure continuous operation of critical equipment during power outages. They are also used in grid scale applications to improve grid stability, store energy from renewable energy sources, and balance power supply and demand.
