For US solar EPC contractors, licensed installers, energy storage system designers and electrical inspectors, understanding the mandatory technical requirements for American Standard inverters is non-negotiable. Many PV and battery storage projects face grid interconnection rejection, inspection failures or utility disapproval simply because the selected split-phase inverter fails to meet official US electrical and grid standards. American standard split phase inverter technical specifications are strictly defined by IEEE 1547, UL safety standards and the National Electrical Code (NEC), covering grid electrical parameters, certifications, safety protection, parallel operation and battery communication rules. This article breaks down every compulsory criterion to help industry practitioners source fully compliant 120/240V 60Hz inverters for residential and commercial energy storage deployments.
Mandatory Grid Electrical Parameter Standards
The core foundation of all US-certified inverters lies in fixed AC and DC electrical specs tailored to North America's unique power grid. First, every unit must deliver native 120/240V split-phase 60Hz AC output with dual L1/L2 live wires and neutral terminals, matching household and commercial load architecture nationwide. A built-in split phase load balance mandatory function is required to automatically adjust power distribution between two legs and prevent dangerous L1-L2 voltage deviation.
On the DC side, inverters feature fixed input voltage windows compatible with mainstream LiFePO4 battery banks. Hard cutoff thresholds for overvoltage and undervoltage are coded into firmware to protect both PV modules and battery packs. All frequency and voltage tolerance ranges must align with IEEE 1547 interconnection rules to avoid grid disconnection events.
Compulsory Third-Party Safety Certifications
No inverter can legally operate on US utility grids without full mandatory UL certifications, the most critical compliance checkpoint for American standard inverters. UL 1741 certification is universal for all grid-tied DER equipment, validating grid interaction, anti-islanding and power conversion safety. Storage hybrid models additionally require UL 9540 and UL 1973 to verify battery-inverter matching safety.
NEC 2020/2023 compliance enforces rigid wiring, grounding, arc-fault and enclosure protection rules that inspectors verify on-site. For cabinet-style integrated storage inverters, UN38.3 transport certification is also mandatory for cross-state shipment of battery-inverter assemblies. Without these labels, systems cannot pass city electrical permits.
Mandatory Grid Protection & Safety Functions
Utility companies nationwide enforce a full suite of embedded protective hardware and software as non-negotiable technical requirements. Anti-islanding protection ranks as the most vital function, combining passive and active detection to shut down grid export within regulated time limits if grid power fails, per UL 1741SA standards.
Additional compulsory trip mechanisms include overvoltage, undervoltage, overfrequency and underfrequency protection with fixed trigger thresholds. Overcurrent, short-circuit and ground fault interruption circuits must activate instantly during wiring faults. Thermal overload protection with automatic power derating and full shutdown prevents permanent damage during high-temperature outdoor operation across hot US climate zones.
Mandatory Technical Rules for Parallel Operation

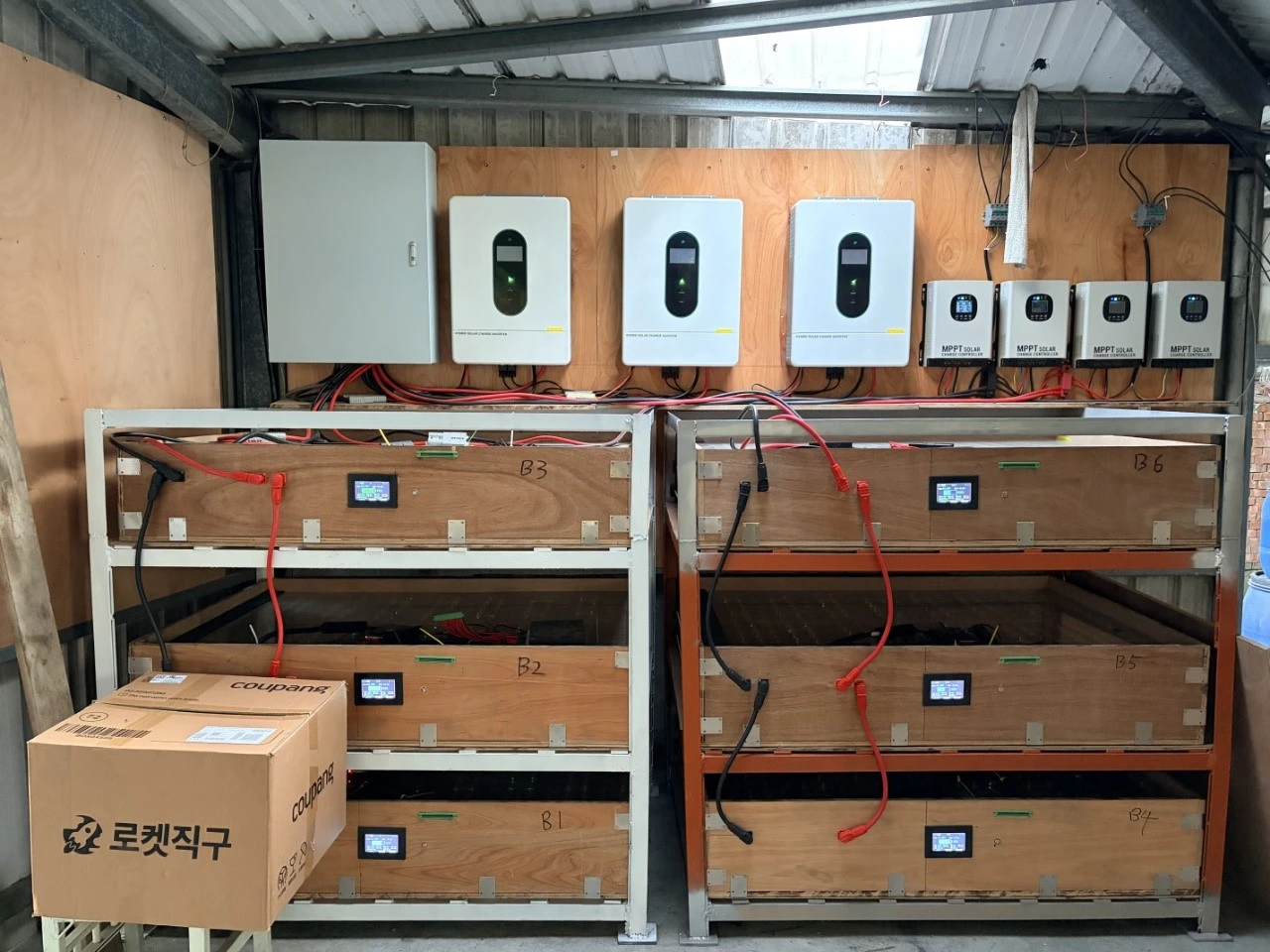

For scalable multi-unit energy storage systems, strict parallel function standards apply to American standard split phase inverters. Hardware must integrate CAN or RS485 communication buses as factory default to enable cross-unit synchronization. The synchronization control logic automatically aligns voltage, frequency and phase angle across all parallel inverters, paired with an active current sharing mandatory function to evenly distribute load power and eliminate single-unit overload. Mismatched firmware or missing communication ports will render parallel operation unstable and violate utility interconnection rules.
Mandatory Battery Matching & Communication Requirements
Hybrid American standard inverters must support two-way BMS communication as a mandatory feature. Real-time transmission of battery state of charge, cell temperature and fault codes allows the inverter to adjust charge/discharge power limits dynamically, avoiding overcharging and deep discharge damage. Fixed DC current limits aligned with battery peak discharge ratings are hard-coded to protect LiFePO4 and lead-acid battery banks connected to split-phase systems.
Quick Compliance Checklist for Verifying American Standard Inverters
Confirm UL 1741, UL 9540 and NEC compliance certification documents
Validate native 120/240V split-phase 60Hz AC output and phase balance control
Inspect full anti-islanding, overvoltage and thermal protection functions
Check factory-installed CAN/RS485 communication ports for parallel expansion
Verify two-way BMS communication compatibility with mainstream storage battery banks
FAQ
What are the mandatory technical requirements for American Standard inverters?
They cover split-phase grid electrical specs, UL safety certifications, grid protection functions, parallel communication hardware and bidirectional battery BMS compatibility aligned with IEEE 1547 and NEC codes.
Is anti-islanding protection mandatory for US split phase inverters?
Yes, UL 1741 requires robust anti-islanding detection for all grid-tied American standard inverters to meet utility interconnection standards.
Can inverters lack split phase balance function be deployed in the US?
No, unbalanced L1/L2 voltage creates fire hazards and will fail all electrical inspections.
Conclusion
To recap the full scope of mandatory technical requirements for American Standard inverters, compliant units must satisfy split-phase grid parameters, hold complete UL and NEC certifications, carry all required grid safety protection, support standardized parallel communication, and feature bidirectional battery BMS interaction. EPCs and installers that validate every technical criterion before procurement eliminate costly project delays and inspection rework. When designing US PV-storage systems, prioritizing fully certified American standard split phase inverters guarantees long-term grid stability, equipment safety and consistent project ROI.
