10kw Off Grid Hybrid Solar Power System

Solar Generation Power: The system's backbone is a 10kW solar array, comprising 25–30 high-efficiency monocrystalline panels (400W each) with a conversion efficiency of 22–23%. This setup generates 40–60kWh of electricity daily in sunny regions-sufficient to power a medium-sized home (including lighting, refrigeration, small appliances, and even a compact AC) with excess energy allocated to battery storage for nighttime or low-light use.

Battery Storage & Autonomy: A large-scale lithium-iron-phosphate (LiFePO4) battery bank (20–40kWh) stores surplus solar energy, ensuring uninterrupted power when sunlight is scarce. Key battery advantages:

Long Lifespan: 3000–5000 deep discharge cycles (8–12 years of use), retaining ≥80% capacity-outperforming lead-acid batteries (300–500 cycles) by 5–7x.

Maximized Usable Energy: Safely discharges to 20% (vs. 50% for lead-acid), meaning a 30kWh battery delivers 24kWh of usable power-critical for extending backup time.

Climate Resilience: Operates reliably in temperatures ranging from -20°C to 60°C, with optional insulated enclosures for cold climates to prevent capacity loss.

System Integration & Performance:

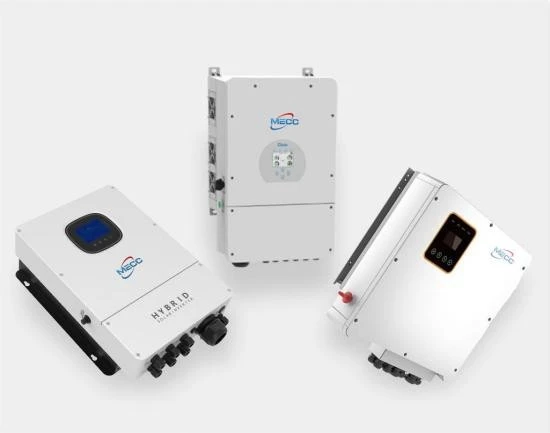

Off-Grid Inverter: A 10–15kW pure sine wave inverter converts DC power from panels and batteries to AC, compatible with all standard appliances and sensitive electronics (laptops, medical devices). It handles continuous loads up to 10kW and peak surges (e.g., for well pumps or power tools) up to 20kW.

MPPT Charge Controller: Optimizes solar energy capture by 15–30% compared to basic PWM controllers, regulating power flow to the battery to prevent overcharging and ensure efficiency, even in low light or partial shade.

Optional Backup Generator: For extended cloudy periods or high-demand events (e.g., winter heating), a 5–10kW generator (propane, diesel, or biogas) can recharge the battery, ensuring the system never depletes entirely.

Durability & Low Maintenance:

Weather Resistance: Solar panels are engineered to withstand extreme conditions-hail (25mm), high winds (160km/h), and temperature extremes (-40°C to 85°C)-backed by a 25–30 year warranty.

Hassle-Free Operation: Sealed, maintenance-free batteries eliminate the need for water refills; panels require only occasional cleaning. A built-in Battery Management System (BMS) protects against overcurrent, short circuits, and thermal issues, ensuring safe, long-term reliability.

Scalability: Easily expandable by adding more panels (up to 15kW) or batteries (up to 60kWh) to meet growing energy needs, such as adding an electric vehicle charger, workshop tools, or additional living space.
