Products Description

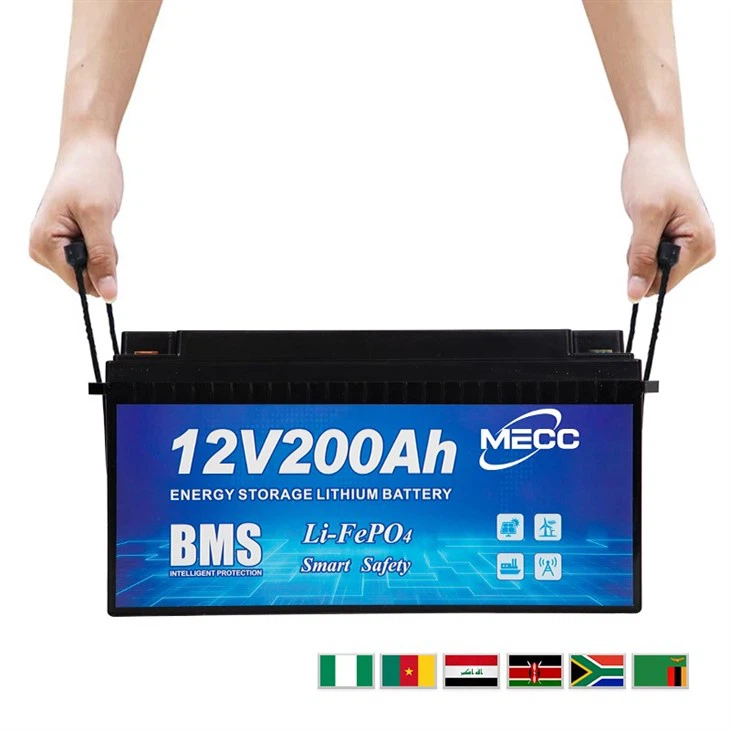

12V 200AH LFP Batteries Pack
200AH High Capacity & Prismatic Cell Design
Generous Energy Storage: A 200AH capacity (at 12V, 24V, or 48V) provides substantial energy-for example, a 12V 200AH pack stores 2.4kWh, enough to run a 100W fridge for 24 hours, 50W LED lights for 48 hours, or a 500W inverter for ~4.8 hours. Higher voltage options (24V/48V) increase energy output (e.g., 48V 200AH = 9.6kWh), suitable for larger homes or commercial use.

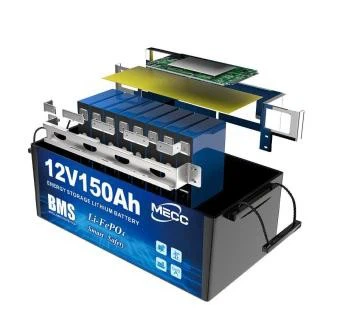

Prismatic Cell Advantage: Uses flat, rectangular prismatic cells (vs. cylindrical cells), which offer:
Higher Energy Density: More capacity per unit volume, saving space in installations (e.g., 48V 200AH pack fits in a 600mm×400mm×250mm enclosure).
Better Heat Dissipation: Larger surface area allows efficient cooling, preventing overheating during high discharge rates (critical for powering heavy loads like air conditioners).
Uniform Performance: Cells are tightly packed and balanced, ensuring consistent energy delivery across the pack.
LiFePO4 Chemistry for Longevity & Safety
Extended Cycle Life: Supports 3,000–5,000 deep charge-discharge cycles (at 80% depth of discharge), outlasting lead-acid batteries (300–500 cycles) by 6–10x. This translates to a 10–15 year lifespan with regular use, reducing replacement costs significantly.
Inherent Safety: LiFePO4 chemistry is non-toxic and thermally stable, with no risk of thermal runaway or toxic gas emissions (unlike lithium-ion or lead-acid). It withstands overcharging, short circuits, and extreme temperatures (-20°C to 60°C), making it safe for indoor or outdoor installation.
Low Self-Discharge: Loses only 2–3% of charge per month (vs. 10–15% for lead-acid), retaining stored energy for extended periods-ideal for seasonal use (e.g., vacation homes) or backup systems.
Advanced BMS & Solar Compatibility
Built-In Battery Management System (BMS): Ensures safe operation by monitoring:
Cell balancing (prevents overcharging/discharging of individual cells).
Overcurrent, overvoltage, and undervoltage protection.
Temperature regulation (shuts down in extreme heat/cold to prevent damage).
Seamless Solar Integration: Works with MPPT charge controllers to optimize solar energy absorption, storing surplus daytime power for evening or cloudy days. Compatible with 12V, 24V, or 48V solar systems, making it flexible for both residential and commercial setups.
Fast Charging: Accepts high charge currents (e.g., 40A for a 48V 200AH pack), reducing charging time from solar panels or grid backup.
Products parameter
| Nominal Voltage | 12V |
| Nominal Capacity | 200Ah |
| Energy | 2400Wh |
| Internal Resistance(AC) | ≤20mΩ |
| Cycle Life | >2000 cycles @ 1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Charge Current | 60A |
| Max. Charge Current | 120A |
| Charge Cut-off Voltage | 15.6±0.2V |
| Continuous Current | 100A |
| Max.Pulse Current | 120A(<3s) |
| Discharge Cut-off Voltage | 8V |
| Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| IP Class | IP65 |
Products characteristics
Real-time Battery Monitoring Application
The lifepo4 battery can be equipped with an optional battery monitoring system, which can display the real-time status of the battery to your mobile phone, including battery health, battery cell efficiency and the battery's internal working environment temperature.
Battery Appearance Details
The interface of the LFP battery shell uses screw grooves made of high-quality conductive materials.
How do solar panels contribute to environmental sustainability?
Solar panels reduce reliance on fossil fuels, lower greenhouse gas emissions, and decrease overall environmental impact.
What is the carbon footprint of manufacturing solar panels?
While there is a carbon footprint associated with manufacturing, it is significantly lower compared to fossil fuel energy production over the panels' lifecycle.
Are solar panels recyclable?
Yes, solar panels are recyclable, and many components can be recovered and reused.
How much can solar panels reduce my home's carbon footprint?
Solar panels can significantly reduce your carbon footprint by generating clean, renewable energy.
Do solar panels require a lot of water to maintain?
Solar panels require minimal water for maintenance, primarily for cleaning.
