Products Description

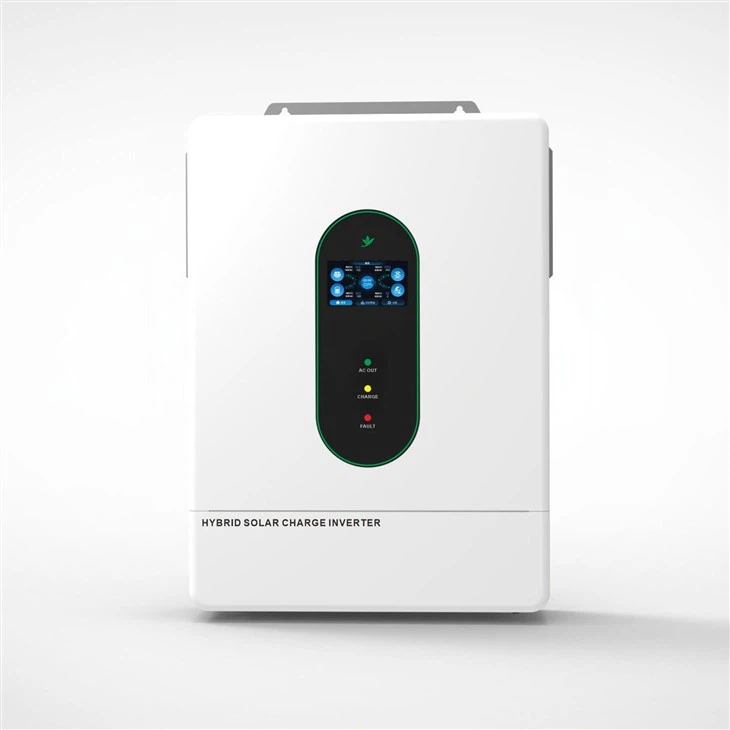

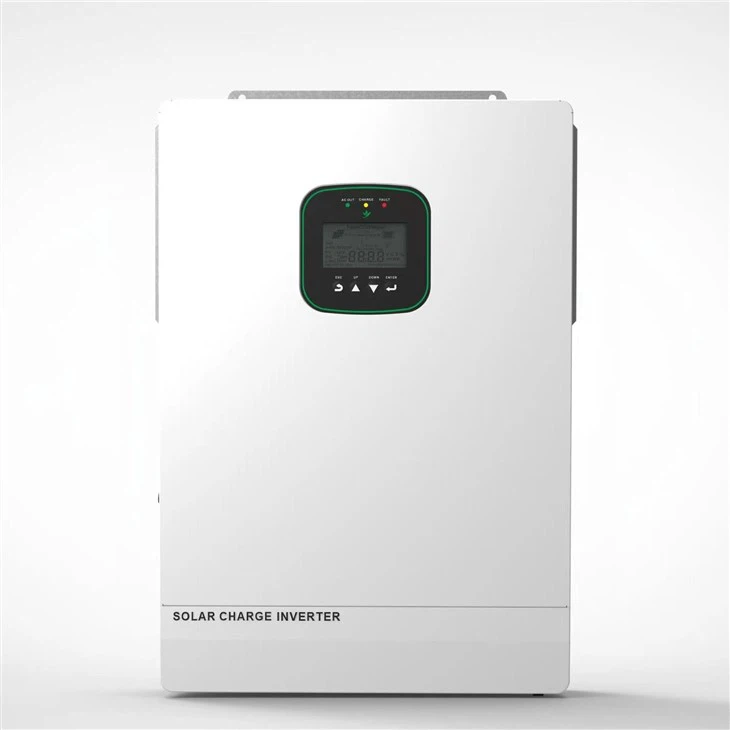

3 - 6 kw Hybrid Inverter

Compliance with American Standard Safety Regulations

Safety is a top priority, and this inverter fully complies with all relevant American standards and safety regulations. It incorporates multiple layers of protection, including overvoltage, undervoltage, overcurrent, and short-circuit protection. These safety features not only protect the inverter itself but also safeguard your entire electrical system and property, giving you peace of mind knowing that your energy solution meets the highest safety benchmarks.

Low-Noise Operation

Enjoy a quiet living or working environment as the inverter operates with minimal noise. Thanks to advanced cooling technologies and optimized mechanical design, it emits scarcely any audible sound during normal operation. This makes it an ideal choice for installations close to living spaces or noise-sensitive areas, eliminating the nuisance of loud humming or buzzing that some traditional inverters may produce.

Advanced Communication Interface Protocols

The inverter is equipped with a suite of advanced communication interface protocols such as Wi-Fi, Ethernet, and Bluetooth, along with industry-standard protocols like Modbus and SunSpec. These interfaces enable seamless connectivity with other smart energy devices, energy management systems, and smart meters. Data exchange occurs in real-time, allowing for remote monitoring, control, and optimization of the energy system, enhancing its overall intelligence and interoperability.

TYPE	SPI4836M80-300	SPI4865M80-300
INVERTER
Rated Output Power	3600W	6500W
Max.Peak Power	7200W	12000W
Rated Output Voltage	120Vac
Rated AC Frequency	50/60Hz
BATTERY
Battery Type	Li-ion/Lead-Acid
Rated Battery Voltage	48V
Max.MPPT Charging Current	200A
PV INPUT
Max.PV Array Power	4000W	4500w*2
Max.Input Current	22A	22A*2
MPPT Voltage Range	90-260Vdc
EFFICIENCY
MPPT Tracking Efficiency	99%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	415280100	540350120
Operating Temperature Range	-15~55℃
COMMUNICATION
Embedded interfaces	RS485/USB/ Dry contact
External Modules (Optional)	Wi-Fi/GPRS

product-1000-97

hybrid inverter071

Factory

Sustainable Manufacturing Practices

Our factory is deeply committed to sustainable manufacturing. The roof is adorned with solar panels, generating clean energy to power a significant portion of our operations, reducing our carbon footprint. Rainwater harvesting systems collect and recycle water for non-critical processes like equipment cooling and floor cleaning. Waste management is a top priority, with strict segregation and recycling protocols in place. We partner with local recycling facilities to ensure electronic waste, plastic, and metal scraps are given a new life. Additionally, energy-efficient motors and lighting throughout the facility cut down on electricity consumption, aligning our production with environmental stewardship.

FAQ

Does it work with a grid-tied system?

Yes, it functions excellently in a grid-tied system. It synchronizes perfectly with the utility grid, allowing you to sell surplus power back to the grid and earn credits, depending on your local utility policies. It continuously monitors grid conditions and adjusts its power output accordingly to maintain grid stability. This seamless integration enables you to make the most of your solar energy investment while staying connected to a reliable power source.

How do I install the inverter?

Installation of the inverter is designed to be straightforward, even for those with limited technical expertise. The product comes with a detailed installation manual that provides step-by-step instructions. Generally, it involves mounting the inverter in a suitable location, connecting the solar panels, batteries (if applicable), and the grid connection. However, for safety and proper operation, we recommend having a professional electrician perform the installation, especially for larger or more complex systems.
