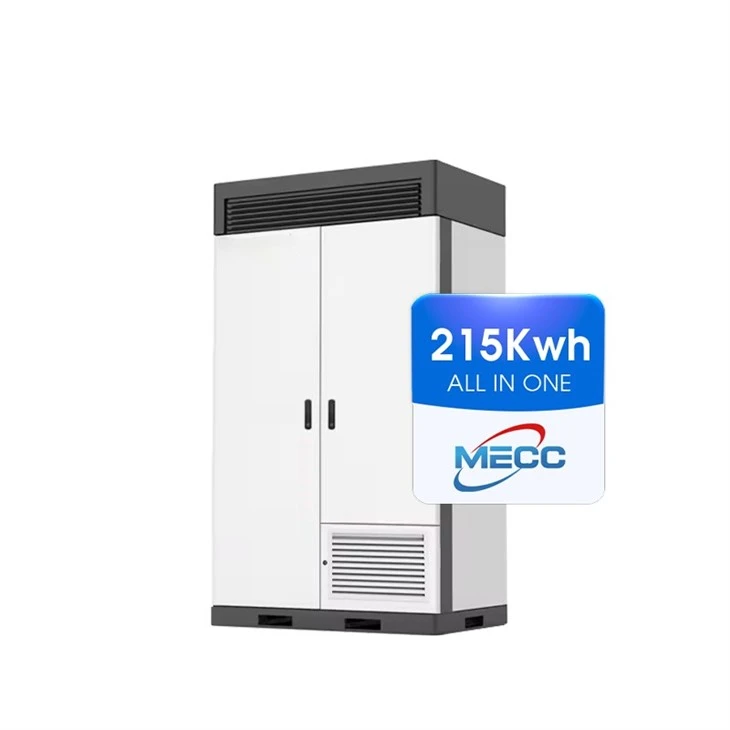

Commercial Solar System With 768V Voltage For Business

768V High-Voltage Efficiency for Commercial Scale: Commercial solar system built around a 768V LiFePO4 battery bank, engineered to minimize energy loss with high-voltage architecture. This design reduces current by 40% compared to 400V systems, cutting wiring heat loss by 30% and enabling efficient 1C charge/discharge—critical for powering large commercial loads like HVAC, retail refrigeration, and office complexes.

Products Description

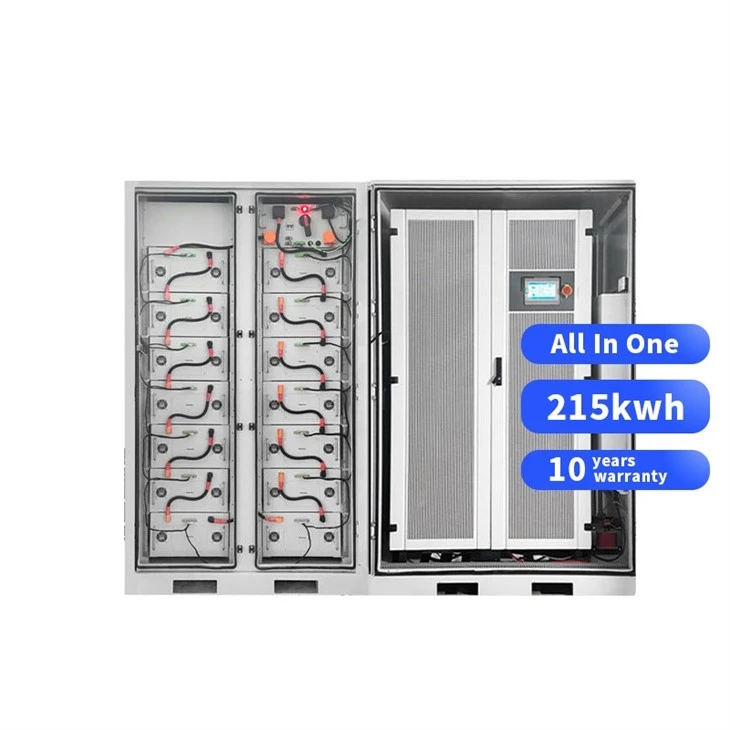

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container

215kWh+ Capacity for Peak Demand:
768V nominal voltage paired with high-capacity cells delivers 215kWh+ total energy (172kWh usable at 80% DoD), enough to sustain a 50,000 sq.ft shopping center or 200-room hotel through peak hours (9 AM–7 PM). Ensures consistent power for POS systems, elevators, and lighting without grid reliance during high-tariff periods.

768V-Optimized PCS for Seamless Grid Integration:
100kW bi-directional Power Conversion System (PCS) calibrated for 768V operation, boasting 98.5% efficiency. Supports 3-phase 400V/480V commercial grids with <5ms switching between solar, battery, and grid power-preventing downtime during outages (vital for supermarkets preserving perishables or clinics sustaining medical equipment).

Industrial-Grade Durability for Commercial Environments:
768V battery modules built with rugged LiFePO4 cells (6,000+ cycles/15+ year lifespan) at 25°C, maintaining 80% capacity after 10 years. IP65-rated enclosures resist dust, rain, and corrosion, suitable for rooftop, parking lot, or utility room installations-withstanding vibrations from busy commercial spaces (airports, malls).

Products parameter

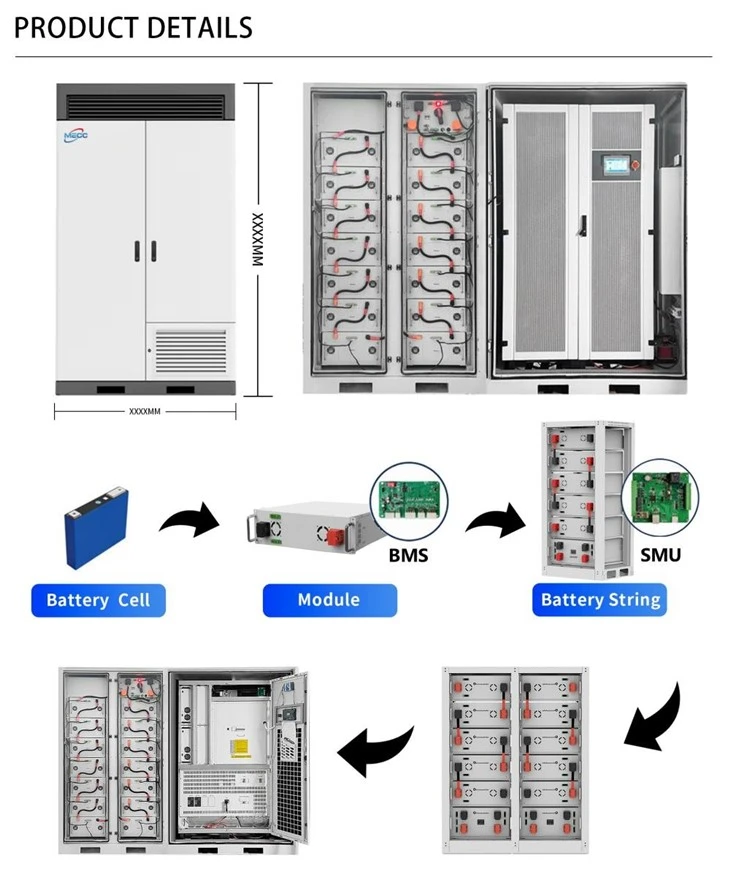

BATTERY PACK 1P16S
RATED VOLTAGE	51.2V
NOMINAL CAPACITY	280AH
PACK POWER	14.336KWH
WEIGHT	130KG
BATTERY SYSTEM 1P224S
RATED VOLTAGE	716.8V
NOMINAL CAPACITY	280AH
RATED CURRENT	140A
BATTERY POWER	215KWH
VOLTAGE RANGE	627.2-806.4V
MAX EFFICIENCY	≥95%
COOLING	FORCED AIR
OPTIMAL WORKING TEMPERATURE RANGE	-20°C-60°C
PROTECTION DEGREE	IP54
DIMENSION	225013001190MM
WEIGHT	2100KG
CERTIFICATES	CE, UN38.3,UL,ROHS, EMC, REACH
