Products Description

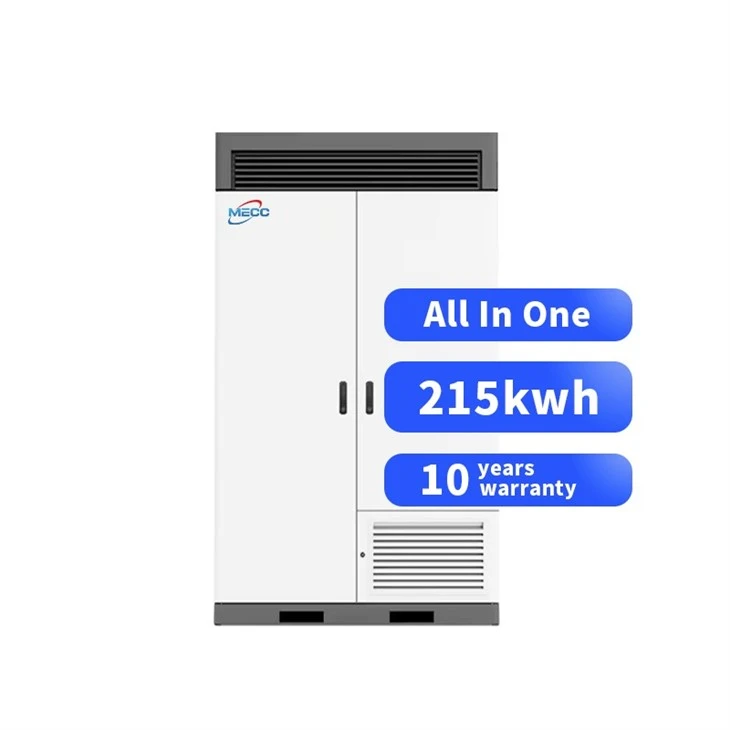

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container
- All-In-One Design
- Optional System Protection
- Flexible Configuration
Products parameter
|
BATTERY CELL |
|||
|
RATED VOLTAGE |
3.2V |
||
|
CAPACITY |
280AH |
||
|
BATTERY PACK 1P16S |
|||
|
RATED VOLTAGE |
51.2V |
||
|
NOMINAL CAPACITY |
280AH |
||
|
PACK POWER |
14.336KWH |
||
|
WEIGHT |
130KG |
||
|
BATTERY SYSTEM 1P224S |
|||
|
RATED VOLTAGE |
716.8V |
||
|
NOMINAL CAPACITY |
280AH |
||
|
RATED CURRENT |
140A |
||
|
BATTERY POWER |
215KWH |
||
|
VOLTAGE RANGE |
627.2-806.4V |
||
|
CONNECTING WAY |
1P224S / 1CLUSTER |
||
|
MAX EFFICIENCY |
≥95% |
||
|
COOLING |
FORCED AIR |
||
|
OPTIMAL WORKING TEMPERATURE RANGE |
-20°C-60°C |
||
|
PROTECTION DEGREE |
IP54 |
||
|
DIMENSION |
2250*1300*1190MM |
||
|
WEIGHT |
2100KG |
||
|
CERTIFICATES |
CE, UN38.3,UL,ROHS, EMC, REACH |
||
Full Customization
Customize the project according to your needs
Data controllability
Low loss and high safety with temperature control design
Waterproof class
Strong environmental adaptability with IP65 protection level
Voltage variation
Ability to withstand high andlow voltage variations
Technical Service
Professional technical support after -sales team
Certification
UI/CE/IEC
multiple Certification
Agricultural Electricity
Photovoltaic System
Greenhouse Lighting
Marine System
Prairie Madrigal
Plant Power
