Products Description

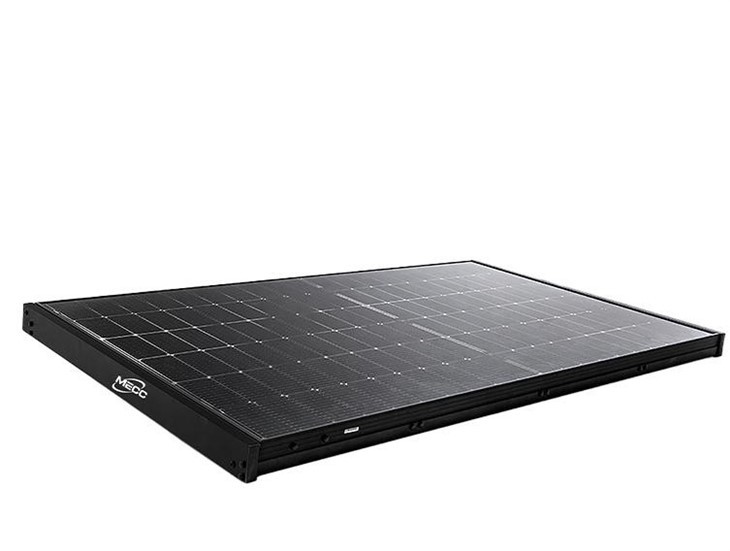

Solar Panel Frame
The frame of the solar panel in it is crucial. It is usually made of lightweight yet durable aluminum alloy. This material offers excellent corrosion resistance, protecting the panel from various weather conditions. The frame's design provides structural integrity, ensuring the panel can withstand wind, snow, and other external forces. It also has pre-drilled holes and grooves for easy mounting on the balcony railing or other support structures.
Photovoltaic Cells' Encapsulation Material
The encapsulation material surrounding the pv cells is vital. It is typically a type of transparent polymer, like ethylene-vinyl acetate (EVA). This material seals the cells, protecting them from moisture, dust, and other contaminants. It also helps in maintaining the electrical insulation of the cells. The EVA layer adheres firmly to the cells and the front glass sheet of the panel, ensuring long-term stability and performance of the solar panel.
Monocrystalline Silicon Growth Technology
The monocrystalline silicon used in the solar panels of the goods is typically grown using the Czochralski (CZ) method. In this process, a single crystal silicon seed is dipped into a molten pool of silicon and slowly pulled out while rotating. This results in a high-purity, single-crystalline structure with excellent semiconductor properties, enabling efficient conversion of sunlight into electricity.
|
Model
|
EVT600
|
|
Input
|
|
|
Input Power Range
|
180-550W*2
|
|
Operating Range
|
16-60V
|
|
Input Current
|
14A*2 |
|
Output Data
|
|
|
Normal Voltage
|
220/230V
|
|
Frequency
|
50/60Hz
|
|
Power
|
600W |
| Others | |
|
Efficiency
|
96.8%
|
|
Communication
|
PLCC
|
|
Warranty
|
15 years |
|
IP
|
IP67
|
|
Temperature
|
- 40 to 65℃
|
|
Weight
|
4kg
|
Factory
Factory Location and Surroundings
Our factory is strategically located in an industrial park with excellent transportation links. It is close to major highways and railway stations, facilitating the efficient import of raw materials and export of finished balcony photovoltaic systems. The surrounding area is well-planned, with a stable power supply and a reliable water source, ensuring uninterrupted production operations.
FAQ
Can the goods be integrated with a home security system?
Yes, it can be integrated in some cases. The power generated by the system can supply electricity to security cameras, motion sensors, and other security devices. However, it's essential to ensure that the power output and voltage of the photovoltaic system match the requirements of the security components. Some security systems may also need additional power conditioning or backup power sources to ensure continuous operation.
What is the effect of humidity on the system's performance?
High humidity can potentially affect it. Moisture in the air may cause corrosion of metal parts, such as the mounting brackets, connectors, and electrical contacts. It can also lead to the degradation of some insulation materials over time. To mitigate these effects, proper sealing and the use of corrosion-resistant materials are crucial. Additionally, maintaining good ventilation around the system can help reduce the impact of humidity.
