■ Conversion efficiency is high.
■ Multi bus technology.
■ Aluminum alloy frame
■ Excellent low light power generation performance.
■ Strong winds and snow loads.
■ Strong resistance to hot spots.
■ Strong adaptability to different harsh environments.
Products Description

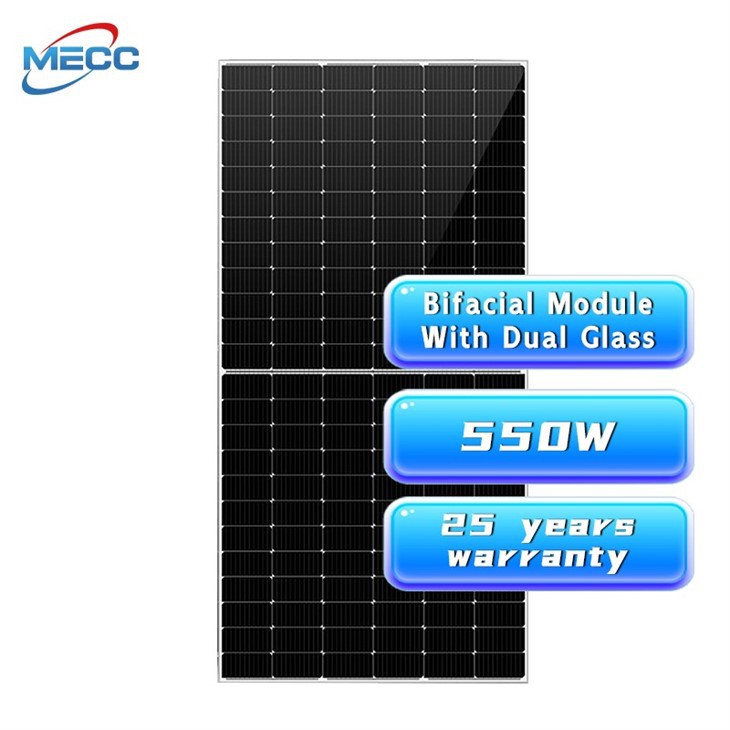

Super Power Solar Panel Mono Half-cut
Products parameters
|
|
|||||||||
|
Module |
530M-144~550M-144 |
||||||||
|
Maximum Power Pmax(W) |
530 |
535 |
540 |
545 |
550 |
||||
|
Maximum Power Voltage(Vmp/V) |
41.31 |
41.47 |
41.64 |
41.8 |
41.96 |
||||
|
Maximum Power Current(Imp/A) |
12.83 |
12.9 |
12.97 |
13.04 |
13.11 |
||||
|
Open Circuit Voltage(Voc/V) |
49.3 |
49.45 |
49.6 |
49.75 |
49.9 |
||||
|
Short Circuit Current(Isc/A) |
13.72 |
13.79 |
13.86 |
13.93 |
14 |
||||
|
Module Efficiency(%) |
20.5 |
20.7 |
20.9 |
21.1 |
21.3 |
||||
|
Power Tolerance(W) |
0~+5W |
||||||||
|
STC |
Irradiance 1000w/m², Cell Temperature 25C, Air Mass 1.5 |
||||||||
|
Remark |
The data in this directory does not refer to a single module. It's not part of the offer. They are only used for comparison between different module types. |
||||||||
|
|
|||||||||
Products Overview
| Product Specification | |
| Module Size | 2278*11134*35mm |
| Weight | 30kg |
| Cell Type | Half Cut N Type Mono |
| Junction Box | IP68 |
| Cable | 50cm 4mm2 cable or customized |
| Connector | PV Connector |
Solar energy contributes to cooling urban heat islands through reduced heat absorption.
The use of solar energy promotes greater energy efficiency in communities.
Solar panels support climate change mitigation efforts through clean energy production.
