■ Conversion efficiency is high.
■ Multi bus technology.
■ Aluminum alloy frame
■ Excellent low light power generation performance.
■ Strong winds and snow loads.
■ Strong resistance to hot spots.
■ Strong adaptability to different harsh environments.
Products Description

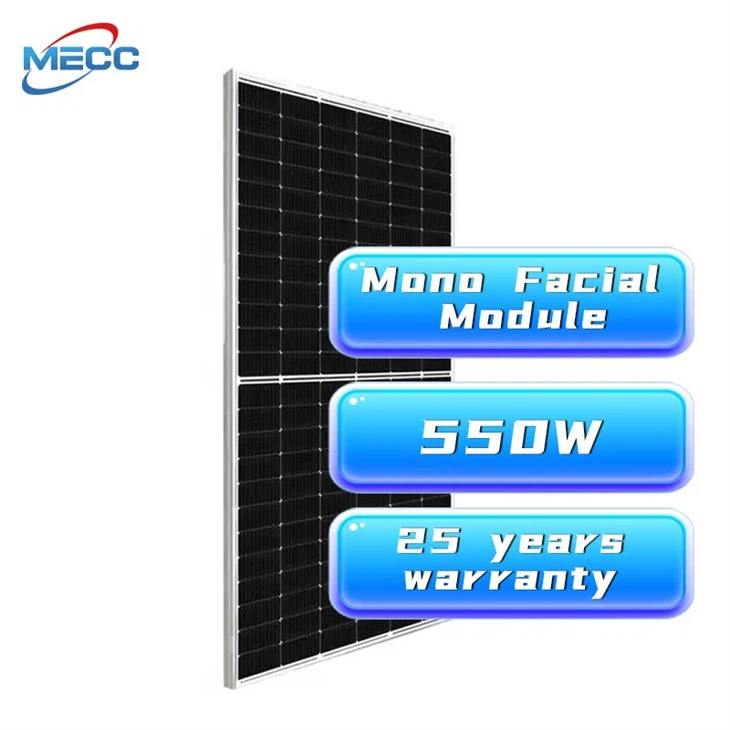

Super Power Solar Panel Mono Half-cut
Products parameters
|
|
|||||||||
|
Module |
530M-144~550M-144 |
||||||||
|
Maximum Power Pmax(W) |
530 |
535 |
540 |
545 |
550 |
||||
|
Maximum Power Voltage(Vmp/V) |
41.31 |
41.47 |
41.64 |
41.8 |
41.96 |
||||
|
Maximum Power Current(Imp/A) |
12.83 |
12.9 |
12.97 |
13.04 |
13.11 |
||||
|
Open Circuit Voltage(Voc/V) |
49.3 |
49.45 |
49.6 |
49.75 |
49.9 |
||||
|
Short Circuit Current(Isc/A) |
13.72 |
13.79 |
13.86 |
13.93 |
14 |
||||
|
Module Efficiency(%) |
20.5 |
20.7 |
20.9 |
21.1 |
21.3 |
||||
|
Power Tolerance(W) |
0~+5W |
||||||||
|
STC |
Irradiance 1000w/m², Cell Temperature 25C, Air Mass 1.5 |
||||||||
|
Remark |
The data in this directory does not refer to a single module. It's not part of the offer. They are only used for comparison between different module types. |
||||||||
|
|
|||||||||
Products Overview
| Product Specification | |
| Module Size | 2278*11134*35mm |
| Weight | 30kg |
| Cell Type | Half Cut N Type Mono |
| Junction Box | IP68 |
| Cable | 50cm 4mm2 cable or customized |
| Connector | PV Connector |
Many solar energy factories utilize solar tracking systems to optimize energy capture. By adjusting the angle of solar panels throughout the day, these systems enhance energy efficiency and production.
