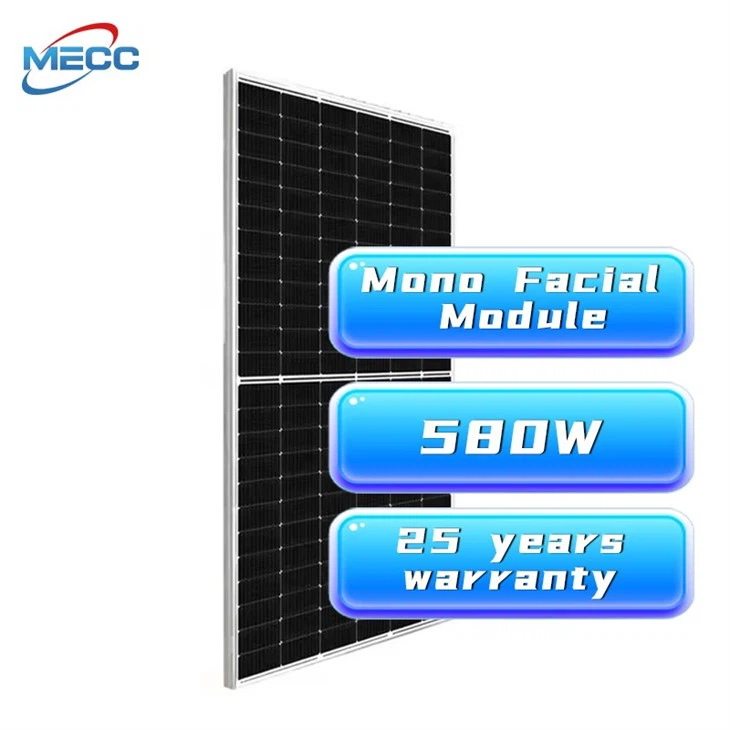

580W Half Cell Mono Solar Panel

580W Half Cell Mono Solar Panel

Products Description 580w panels are made with recyclable materials, promoting environmental sustainability. At the end of their lifespan, many of the components of the panels, such as the aluminum frames and certain types of semiconductors, can be recycled. This reduces waste and the...

Product Introduction
Products Description








  • 580w panels are made with recyclable materials, promoting environmental sustainability. At the end of their lifespan, many of the components of the panels, such as the aluminum frames and certain types of semiconductors, can be recycled. This reduces waste and the environmental impact associated with disposing of old panels, making them a more sustainable choice from cradle to grave.



  • They have a compact size, saving installation space. The compact design of 580w panels allows for more efficient use of available space, whether it's on a rooftop or in a ground-mounted installation. Their smaller footprint means that more panels can be installed in a limited area, increasing the overall power generation capacity without requiring a large expanse of land or roof space.






Products parameters




Module

WN 550-580W - 36MH

Max Power Pmax(W)

550 560 565 570 580

Max Power Voltage(Vmp/V)

41.50 41.77 41.92 42.07 42.37

Max Power Current(Imp/A)

13.26 13.41 13.48 13.55 13.69

Open Circuit Voltage(Voc/V)

50.21 50.47 50.60 50.74 51.02

Short Circuit Current(Isc/A)

14.00 14.15 14.23 14.31 14.47

Module Efficiency(%)

21.29 21.68 21.87 22.07 22.45

Power Tolerance(W)

0 ~ + 3 %
Operating Temperature
-40 °C ~ +85 °C
Max Series Fuse Rating
30 A



Products Overview


0101

p20241122164004e4410

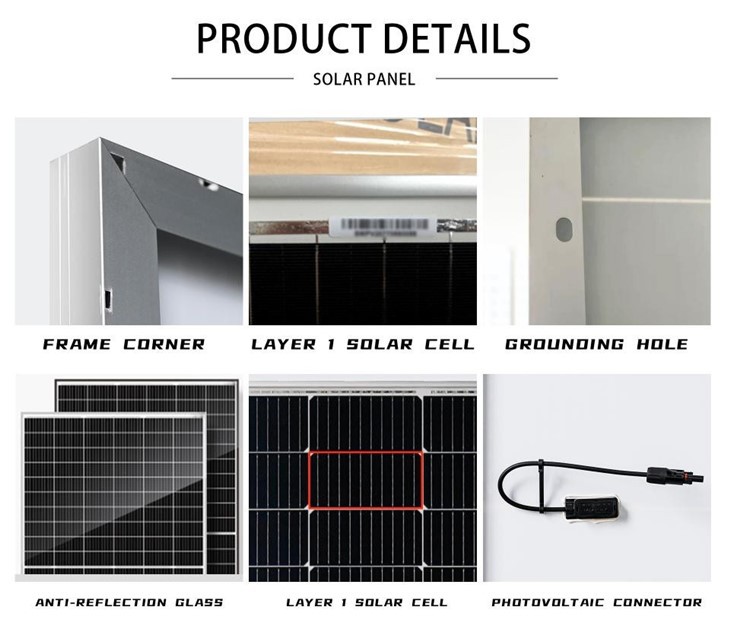

Product Specification
Module Size
2278×1134×30
Weight 29kg
Cell Type
N- type Mono
Junction Box IP68
Connector PV Connector



540 Watt Solar Panel 2

photobank 1 -

photobank 1

photobank 2 -

photobank 3 -

photobank 4 -

photobank 5 -

photobank 6 -

photobank 7 -

photobank 8 -

photobank 9 -

photobank 2

photobank 10 -

photobank 11 -

photobank 12 -

photobank 13 -

photobank 14 -

photobank 15 -

photobank

photobank - 2

photobank - 3

photobank - 4

photobank -



Technique



  • The backsheet of a panel may have a metallized layer. This layer can improve the electrical conductivity and grounding of the panel. It also helps to dissipate any static electricity that may build up during operation, reducing the risk of electrical discharges and potential damage.



  • The manufacturing process of 580w panels is subject to strict environmental regulations. Manufacturers must ensure that the production process does not cause excessive pollution or waste. They are required to implement measures to control emissions, manage waste disposal, and recycle materials whenever possible.

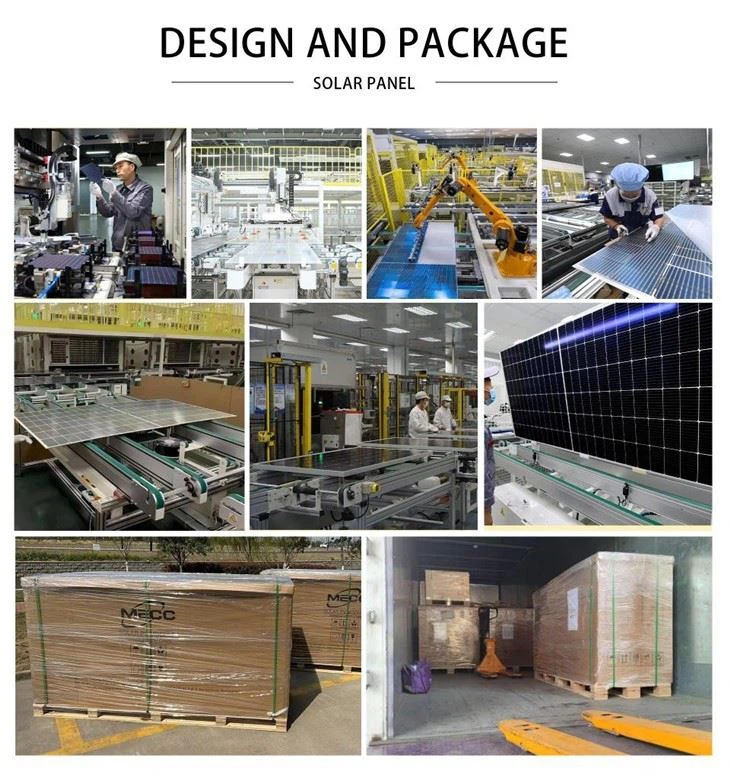

Factory





  • Our factory places a strong emphasis on environmental sustainability. We have implemented a comprehensive set of measures to minimize our ecological footprint. The production process is designed to be energy-efficient, with a significant portion of our energy needs being met by our own rooftop solar panel installations. Waste management is another area of focus, where we strive to recycle and reuse as much of the waste materials generated during manufacturing as possible. Additionally, we are constantly exploring ways to reduce the use of hazardous substances in our production processes and replace them with more environmentally friendly alternatives. By adhering to these sustainable practices, we not only contribute to the preservation of the planet but also set an example for the industry to follow.



  • The factory's logistics and supply chain management is a well-oiled machine. We have established strong relationships with a global network of reliable suppliers, ensuring a steady and timely supply of high-quality raw materials. Our in-house logistics team coordinates the transportation and storage of these materials with precision, minimizing inventory holding costs and ensuring a seamless flow of production. Once the solar panels are ready for shipment, we partner with leading logistics providers to ensure their safe and efficient delivery to customers around the world. Our packaging is designed to protect the panels during transit, while also being environmentally friendly and easy to handle.



  • Employee training and development is a top priority in our factory. We offer a comprehensive range of training programs, from basic technical skills to advanced manufacturing techniques and quality control procedures. Our employees have access to state-of-the-art training facilities and are mentored by experienced industry professionals. This continuous learning environment not only enhances the skills and knowledge of our workforce but also fosters a culture of innovation and excellence. We believe that investing in our employees is the key to our long-term success and the production of world-class panels.







FAQ





What is the cost of maintenance over the lifespan of the panel?



The cost of maintenance over the panel's lifespan is relatively low. Regular cleaning and occasional inspections may cost a few hundred dollars per year. Major repairs or replacements, if needed, can add to the cost, but with proper installation and care, these should be minimal. Overall, the maintenance cost is a small fraction of the initial investment and is outweighed by the long-term savings on electricity bills.





Are there any financing options available for purchasing the panel?



Yes, there are several financing options. These include solar loans, leases, and power purchase agreements (PPAs). Solar loans allow you to borrow money to purchase the panel and pay it back over time. Leases and PPAs enable you to use the panel without the large upfront cost. Instead, you pay a monthly fee for the electricity generated or the use of the panel. The choice of financing option depends on your financial situation and preferences.
