Lithium Rack Battery

48V 100AH Rack Mount lithium battery Efficient Energy Management Rack-mounted lithium batteries enable efficient energy management by storing excess energy and releasing it when needed. This helps optimize energy usage, reduce peak demand charges, and lower overall energy costs. High Performance...

48V 100AH Rack Mount lithium battery

Efficient Energy Management

Rack-mounted lithium batteries enable efficient energy management by storing excess energy and releasing it when needed. This helps optimize energy usage, reduce peak demand charges, and lower overall energy costs.

High Performance in Various Applications

These batteries deliver high performance in a wide range of applications, from residential and commercial energy storage to industrial and transportation uses. Their versatility makes them a popular choice for various energy storage needs.

Advanced Monitoring and Control Systems

Many rack-mounted lithium batteries come with advanced monitoring and control systems that provide real-time data on energy levels, performance metrics, and system health. This enables proactive maintenance and optimization of energy usage.

LithiumIron Phosphate (LFP) Battery

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.

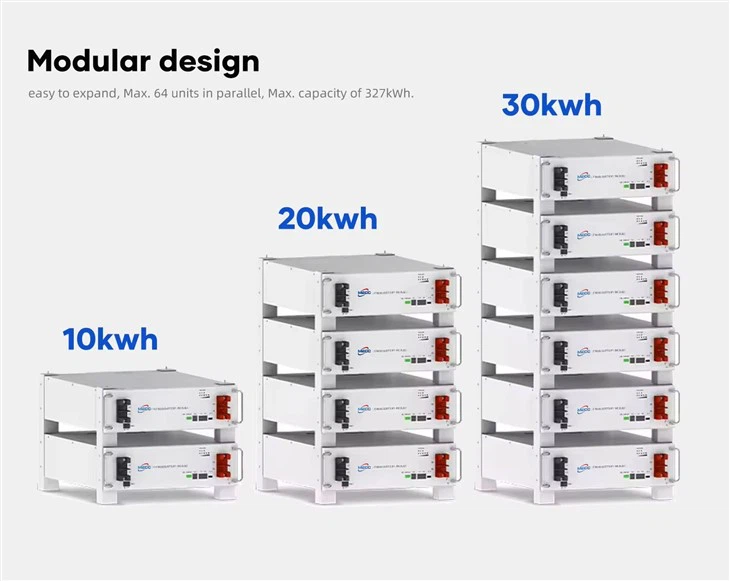

Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.

1 -

001

002

Which is designed for residential and
commercial energy storage applications.

2 -

003 -

Model	MECC-51.2-100	Weight Approximate(kg)	45
Main Parameter		Master LED Indicator	5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
Battery Chemistry	LiFePO4	IP Rating of Enclosure	IP20
Capacity (Ah)	100	Operating Temperature	Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)	Storage Temperature	0℃～35℃
Nominal Voltage (V)	51.2	Humidity	5%~95%
Operating Voltage(V)	43.2~57.6	Altitude	≤2000m
Energy (kWh)	5.12	Cycle Life	≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)	4.6	Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)	Recommend 50	Communication Port	CAN2.0, RS485
Other Parameter		Warranty Period	10 years
Recommend Depth of Discharge	90%	Energy Throughput	16MWh@70%EOL
Dimension (W/H/D, mm)	440133540	Certification	UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

product-1500-527

product-1500-723

FAQ

How does a rack-mounted lithium battery handle energy during peak demand?

During peak demand, a rack-mounted lithium battery releases stored energy to meet the increased load, reducing the need to draw additional power from the grid. This helps lower peak demand charges and ensures a stable power supply.

What is the role of a rack-mounted lithium battery in a residential setting?

In a residential setting, a rack-mounted lithium battery provides backup power during grid outages, supports energy management, and can be integrated with renewable energy systems. It reduces energy costs and enhances energy independence.

How does a rack-mounted lithium battery handle energy during low solar generation?

During low solar generation, a rack-mounted lithium battery releases stored energy to meet the load demand. If the battery is depleted, it can draw power from the grid, ensuring a continuous power supply.
