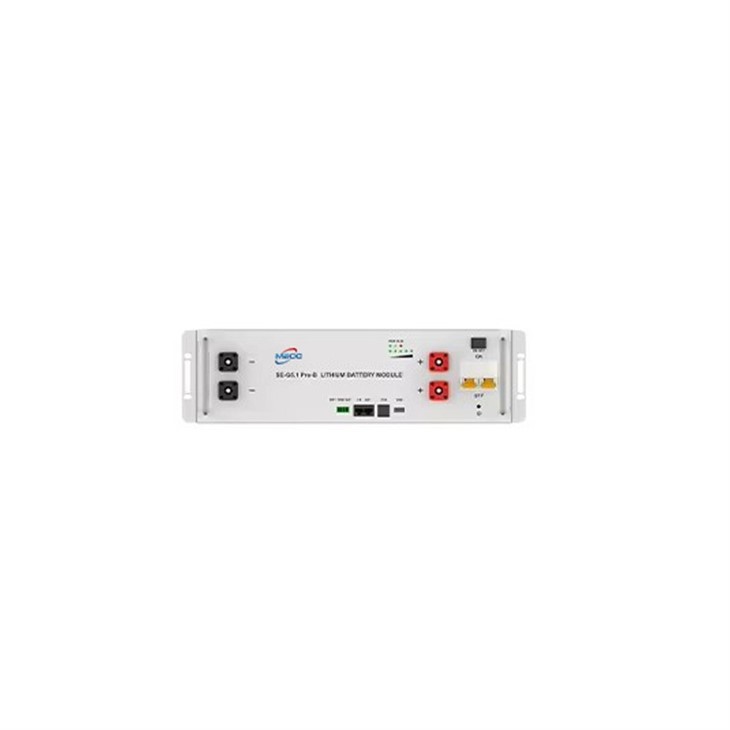

51.2V Rack Lithium Battery

51.2V 100AH Racked Mounted lithium battery Integration with Renewable Energy Systems These batteries are designed to work seamlessly with renewable energy systems, such as solar panels and wind turbines. They store excess energy generated during periods of high production and release it during...

51.2V 100AH Racked Mounted lithium battery

Integration with Renewable Energy Systems

These batteries are designed to work seamlessly with renewable energy systems, such as solar panels and wind turbines. They store excess energy generated during periods of high production and release it during periods of low generation or high demand.

High Energy Density and Compact Design

Rack-mounted lithium batteries offer high energy density, allowing for more energy storage in a smaller footprint. Their compact design makes them space-efficient and suitable for installations in tight spaces.

Long Lifespan and Low Maintenance

These batteries have a long lifespan, often exceeding thousands of cycles without significant degradation. They also require minimal maintenance, reducing the frequency of replacements and maintenance costs.

LithiumIron Phosphate (LFP) Battery

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.

1 -

001

002

Which is designed for residential and
commercial energy storage applications.

2 -

003 -

Model	MECC-51.2-100	Weight Approximate(kg)	45
Main Parameter		Master LED Indicator	5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
Battery Chemistry	LiFePO4	IP Rating of Enclosure	IP20
Capacity (Ah)	100	Operating Temperature	Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)	Storage Temperature	0℃～35℃
Nominal Voltage (V)	51.2	Humidity	5%~95%
Operating Voltage(V)	43.2~57.6	Altitude	≤2000m
Energy (kWh)	5.12	Cycle Life	≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)	4.6	Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)	Recommend 50	Communication Port	CAN2.0, RS485
Other Parameter		Warranty Period	10 years
Recommend Depth of Discharge	90%	Energy Throughput	16MWh@70%EOL
Dimension (W/H/D, mm)	440133540	Certification	UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

product-1500-527

product-1500-723

FAQ

How does a rack-mounted lithium battery handle energy storage?

A rack-mounted lithium battery handles energy storage by converting electrical energy into chemical energy and storing it in the battery cells. It can then release this energy when needed, providing a reliable power source.

Can rack-mounted lithium batteries be used in uninterruptible power supplies (UPS)?

Yes, rack-mounted lithium batteries are commonly used in uninterruptible power supplies (UPS). They provide immediate backup power during grid outages, ensuring continuous operation of critical equipment.

What is the role of a rack-mounted lithium battery in a data center?

In a data center, a rack-mounted lithium battery provides reliable backup power, ensuring continuous operation during grid outages. It also supports energy management and reduces peak demand charges.
