Product Introduction
51.2V 100AH Racked Mounted lithium battery
Rack-Mounted Lithium Battery Overview Rack-mounted lithium batteries are designed for efficient energy storage and management in various applications. These batteries offer high energy density, long cycle life, and fast charging capabilities, making them ideal for renewable energy systems, data centers, and industrial use. Their modular design allows for easy installation and scalability, ensuring reliable power supply and optimal performance.
Energy Density and Efficiency One of the key features of rack-mounted lithium batteries is their high energy density. This allows them to store more energy in a smaller footprint, making them space-efficient. Additionally, these batteries are highly efficient, converting stored energy into usable power with minimal loss, ensuring maximum utilization of energy resources.
Long Cycle Life and Durability Rack-mounted lithium batteries are known for their long cycle life, often exceeding thousands of cycles without significant degradation. This durability makes them a cost-effective solution for long-term energy storage needs, reducing the frequency of replacements and maintenance.
LithiumIron Phosphate (LFP) Battery
Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.

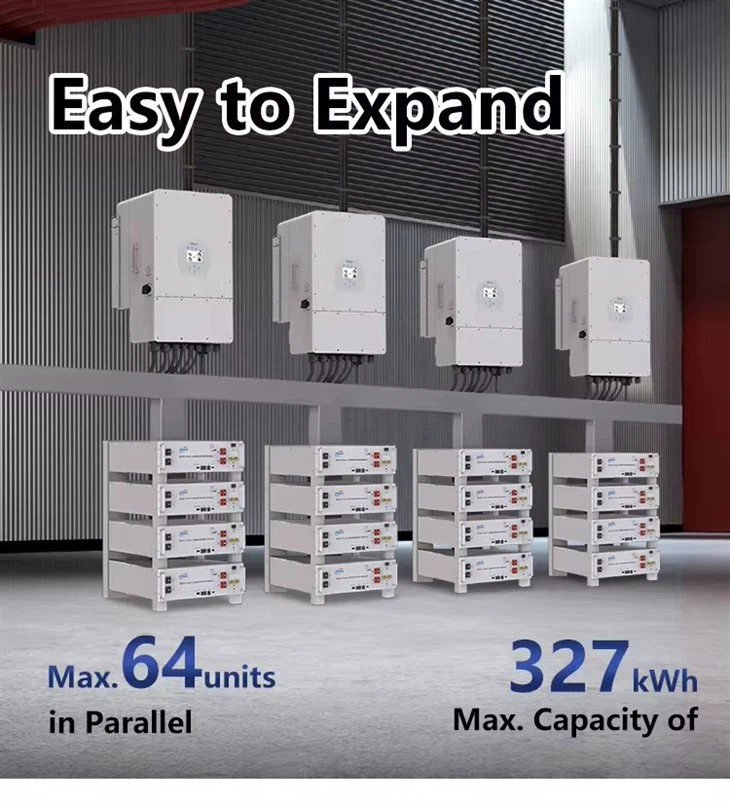

Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.
Which is designed for residential and
commercial energy storage applications.
Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Storage Temperature
0℃～35℃
Nominal Voltage (V)
51.2
Humidity
5%~95%
Operating Voltage(V)
43.2~57.6
Altitude
≤2000m
Energy (kWh)
5.12
Cycle Life
≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)
4.6
Installation
Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)
Recommend 50
Communication Port
CAN2.0, RS485
Other Parameter
Warranty Period
10 years
Recommend Depth of Discharge
90%
Energy Throughput
16MWh@70%EOL
Dimension (W/H/D, mm)
440*133*540
Certification
UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A
FAQ
What is the role of a rack-mounted lithium battery in a residential setting?
In a residential setting, a rack-mounted lithium battery provides backup power during grid outages, supports energy management, and can be integrated with renewable energy systems. It reduces energy costs and enhances energy independence.
How does a rack-mounted lithium battery handle energy during low solar generation?
During low solar generation, a rack-mounted lithium battery releases stored energy to meet the load demand. If the battery is depleted, it can draw power from the grid, ensuring a continuous power supply.
What is the role of a rack-mounted lithium battery in a renewable energy system?
In a renewable energy system, a rack-mounted lithium battery stores excess energy generated by solar panels or wind turbines. This stored energy can be used during periods of low generation or high demand, ensuring a stable and continuous power supply.
