48v Bms 10KWH 15KWH Lithium Stacked Battery

48v Bms 10KWH 15KWH Lithium Stacked Battery

Products Description 5-30KWH Stacked Lithium Batteries ■ High security :Grade A and Brand New. ■ Built-in BMS multiple protection. ■ Long life :6000 cycles. ■ High capacity :Parallel use of battery packs to meet the needs of large-capacity applications ■ 48V/51.2V 100AH/200AH Power wall 48V...

Product Introduction
Products Description

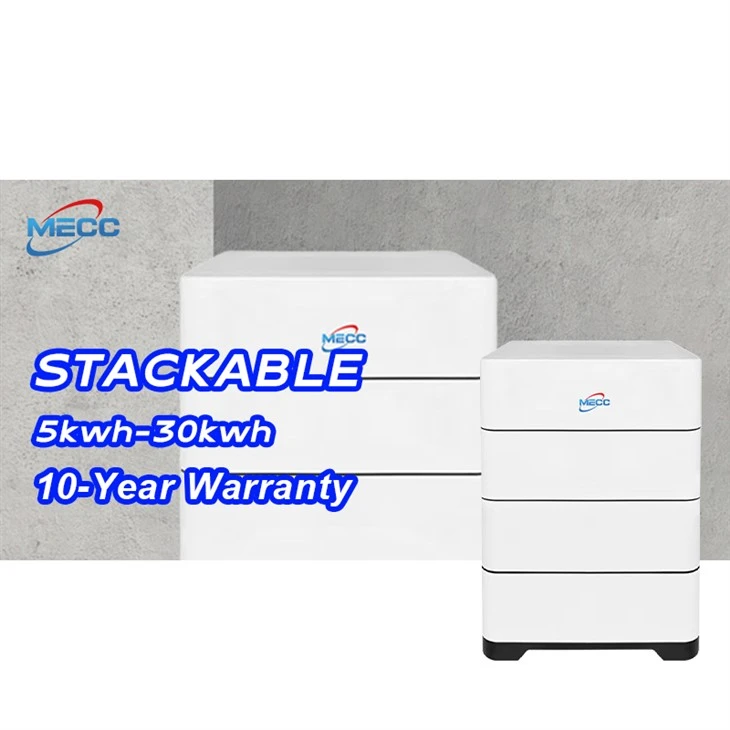

5-30KWH Stacked Lithium Batteries

High security:Grade A and Brand New.
Built-in BMS multiple protection.

Long life:6000 cycles.
High capacity:Parallel use of battery packs to meet the needs of large-capacity applications

48V/51.2V 100AH/200AH



Model 48100 48200
Specification 48V100Ah 51.2V100Ah 48V200Ah 51.2V200Ah
Combination 15S1P 16S1P 15S1P 16S1P
Capacity 4.8KWh 5.12KWh 9.6KWh 10.24KWh
Standard discharge current 50A 50A 50A 50A
Max. discharge current 100A 100A 100A 100A
Working voltage range 40.5 - 54VDC 43.2 - 57.6VDC 40.5 - 54VDC 43.2 - 57.6VDC
Standard Voltage 48VDC 51.2VDC 48VDC 51.2VDC
Max. charging current 50A 50A 100A 100A
Max. charging voltage 54V 57.6V 54V 57.6V
Cycle 3000 - 6000cycles @ DOD 80%/25°C/0.5C
Working humidity 65±20%RH
Operating temperature -10 - +50°C
Working altitude ≤2500m
Cooling method Natural cooling
Installation Stack installation
Protection level IP20
Max of parallel 15PCS
Warranty 5 - 10 Years
Communication Default: RS485/RS232/CAN Optional: WiFi/4G/Bluetooth
Certified CE ROHS FCC UN38.3 MSDS
Product Size 400*200*460mm 400*240*460mm
Package Size 460*230*545mm 460*270*545mm
Net weight 50kg 53kg 102kg 106kg
Gross weight 55kg 58kg 112kg 116kg





Power wall battery011

Power wall battery021





Power wall battery061

Power wall battery081


Power wall 48V 100AH

product-620-727
product-615-727
product-653-727




Stacked 48V 100AH

product-620-731
product-615-731
product-653-731




Vertical 48V 200AH




product-620-739
product-615-739
product-653-739

Power wall battery091

product-924-630
product-925-630
product-615-612
product-621-612
product-613-612
product-924-625
product-925-625

Power wall battery101

product-924-821
product-921-821
product-615-798
product-616-798
product-614-798


product-924-823
product-921-823


FAQ

- What are the main types of lithium batteries?

There are several main types including lithium - ion, lithium polymer, lithium iron phosphate, etc.

- How does a lithium battery work?

Lithium batteries work through the movement of lithium ions between the anode and cathode during charging and discharging.

- What are the advantages of lithium batteries compared to other battery types?

They have higher energy density, longer lifespan in some cases, and are relatively lightweight.

- What are the components of a lithium battery?

It mainly consists of anode, cathode, electrolyte, separator, etc.

- How is the capacity of a lithium battery measured?

It's usually measured in ampere - hours (Ah).

- What is the typical lifespan of a lithium battery?

It varies depending on usage and type, but generally several years under normal conditions.
