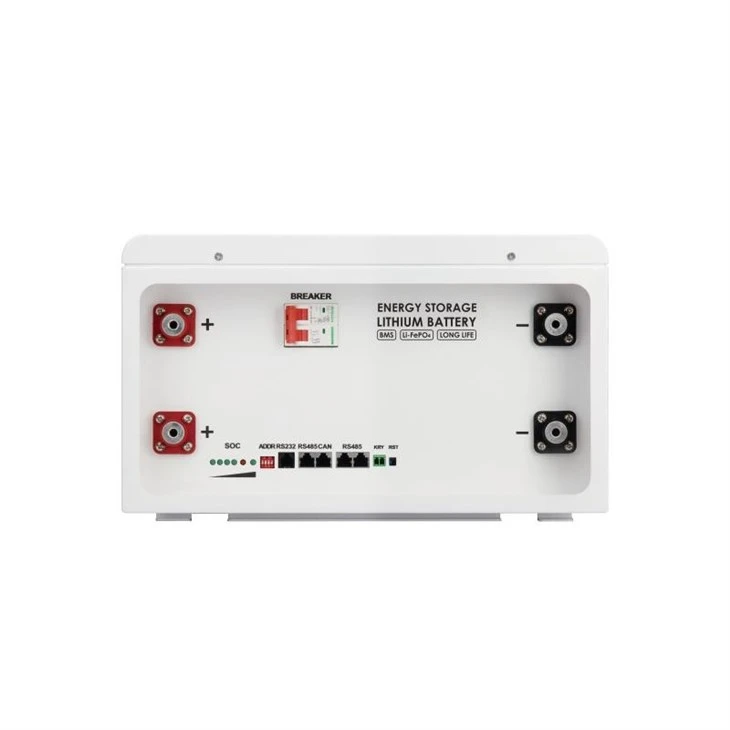

48v Bms 100AH Lithium Stacked Battery

48v Bms 100AH Lithium Stacked Battery

Products Description 5-30KWH Stacked Lithium Batteries ■ High security :Grade A and Brand New. ■ Built-in BMS multiple protection. ■ Long life :6000 cycles. ■ High capacity :Parallel use of battery packs to meet the needs of large-capacity applications ■ 48V/51.2V 100AH/200AH Power wall 48V...

Product Introduction
Products Description

5-30KWH Stacked Lithium Batteries

High security:Grade A and Brand New.
Built-in BMS multiple protection.

Long life:6000 cycles.
High capacity:Parallel use of battery packs to meet the needs of large-capacity applications

48V/51.2V 100AH/200AH



Model 48100 48200
Specification 48V100Ah 51.2V100Ah 48V200Ah 51.2V200Ah
Combination 15S1P 16S1P 15S1P 16S1P
Capacity 4.8KWh 5.12KWh 9.6KWh 10.24KWh
Standard discharge current 50A 50A 50A 50A
Max. discharge current 100A 100A 100A 100A
Working voltage range 40.5 - 54VDC 43.2 - 57.6VDC 40.5 - 54VDC 43.2 - 57.6VDC
Standard Voltage 48VDC 51.2VDC 48VDC 51.2VDC
Max. charging current 50A 50A 100A 100A
Max. charging voltage 54V 57.6V 54V 57.6V
Cycle 3000 - 6000cycles @ DOD 80%/25°C/0.5C
Working humidity 65±20%RH
Operating temperature -10 - +50°C
Working altitude ≤2500m
Cooling method Natural cooling
Installation Stack installation
Protection level IP20
Max of parallel 15PCS
Warranty 5 - 10 Years
Communication Default: RS485/RS232/CAN Optional: WiFi/4G/Bluetooth
Certified CE ROHS FCC UN38.3 MSDS
Product Size 400*200*460mm 400*240*460mm
Package Size 460*230*545mm 460*270*545mm
Net weight 50kg 53kg 102kg 106kg
Gross weight 55kg 58kg 112kg 116kg





Power wall battery011

Power wall battery021





Power wall battery061

Power wall battery081


Power wall 48V 100AH

product-620-727
product-615-727
product-653-727




Stacked 48V 100AH

product-620-731
product-615-731
product-653-731




Vertical 48V 200AH




product-620-739
product-615-739
product-653-739

Power wall battery091

product-924-630
product-925-630
product-615-612
product-621-612
product-613-612
product-924-625
product-925-625

Power wall battery101

product-924-821
product-921-821
product-615-798
product-616-798
product-614-798


product-924-823
product-921-823


FAQ

- Are there any commercial products using solid - state lithium batteries yet?

There are a few limited - release products, but it's not widespread.

- How do solid - state lithium batteries address the issue of dendrite formation?

The solid - state electrolyte can act as a physical barrier to dendrite growth.

- What is the function of a battery management system in lithium batteries?

It monitors and controls the battery's charging, discharging, and overall health.

- How does a BMS prevent overcharging and over - discharging?

It uses sensors and control algorithms to cut off the charging or discharging process when limits are reached.

- Can a BMS improve the lifespan of a lithium battery?

Yes, by protecting the battery from abnormal conditions.

- What information does a BMS monitor in a lithium battery?

It monitors voltage, current, temperature, and state of charge, among other parameters.
