Products Description

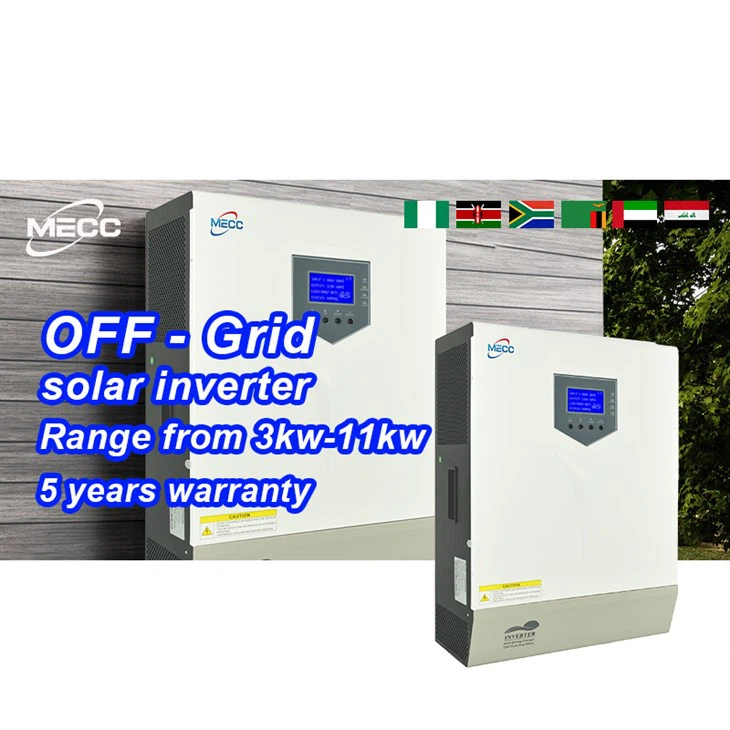

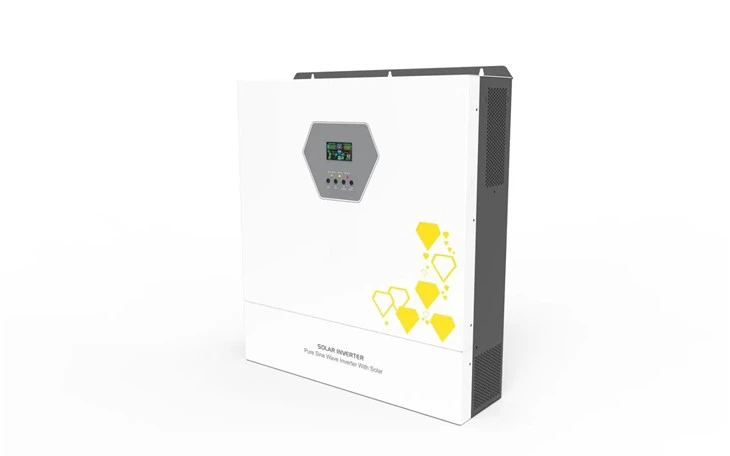

Off Grid Inverter

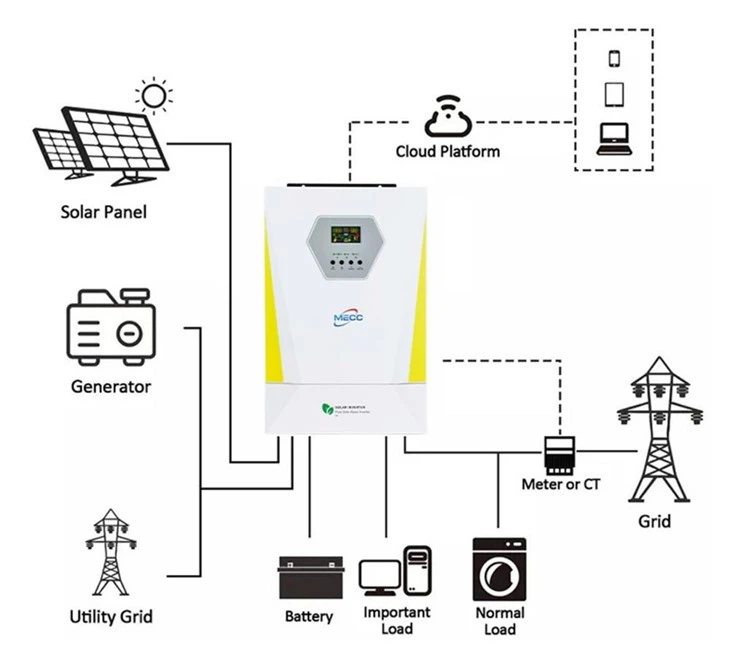

These off-grid inverters are designed to operate independently of the utility grid, making them ideal for remote locations or places where connecting to the grid is not feasible. Off-grid inverters often include features like surge protection, voltage regulation, and sometimes even battery charging capabilities to ensure reliable and efficient operation of the off-grid system.
Products parameter
|
ModeI |

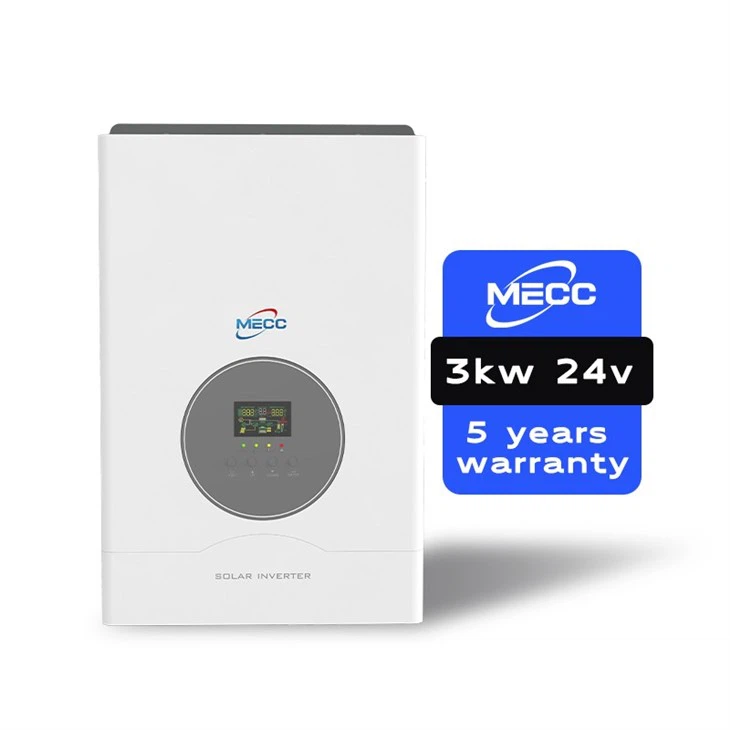

GD3024ML |
GD3024JMH |

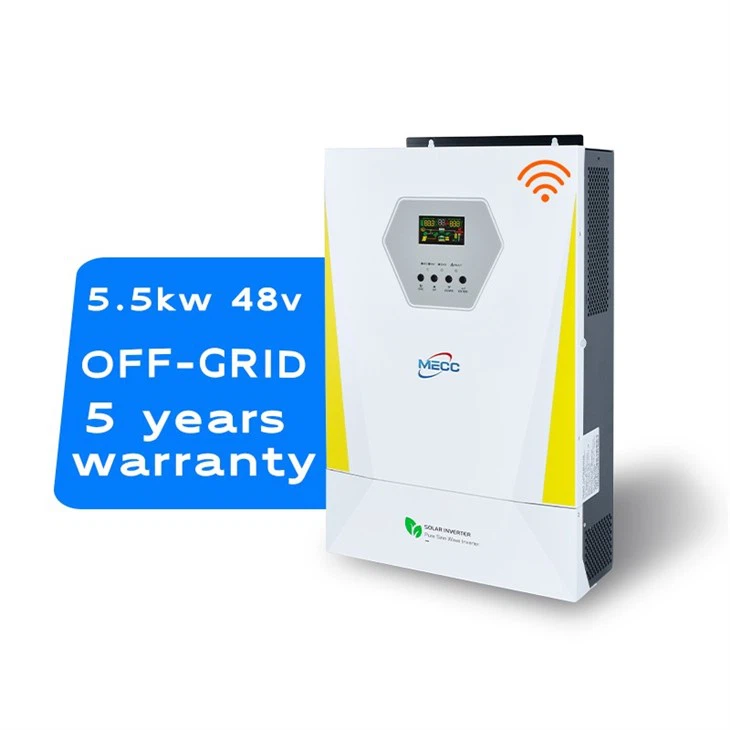

GD5548JMH |
GD11048MHB |
|
PV Input |
||||
|
PV maxinput power |
1500W |
3500W |
5500W |
5500W+5500W |
|
MPPT voltage range |
30~115Vdc |
120~430Vdc |
120~430Vdc |
120~450Vdc |
|
PV charging method |
MPPT*1 |
MPPT*1 |
MPPT*1 |
MPPT*2 |
|
Max PV input voltage |
145Vdc |
450Vdc |
450Vdc |
450Vdc |
|
Max PV charging current |
60A |
100A |
100A |
80A+80A |
|
Battery |
||||
|
Rated voltage |
24Vdc |
24Vdc |
48Vdc |
48Vdc |
|
Constant voltage charging voltage (Optional) |
28.2Vdc |
28.2Vdc |
56.4Vdc |
56.4Vdc |
|
Floating charge voltage (Optional) |
27Vdc |
27Vdc |
54Vdc |
54Vdc |
|
AC Input |
||||
|
Phase |
L+N+PE |
|||
|
Nominal Voltage |
208/220/230/240VAC |
|||
|
Voltage Range |
154-264VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode) |
|||
|
Frequency Range |
50Hz/60Hz(Adaptive) |
|||
|
AC Output |
||||
|
Rated Power |
3000W |
3000W |
5500W |
11000W |
|
Max power |
6000VA |
6000VA |
10000VA |
20000VA |
|
Output Voltage(AC) |
208/220/230/240VAC±5% |
|||
|
Max AC charging current |
60A |
60A |
100A |
80A+80A |
|
Output Frequency |
50/60Hz±0.1% |
|||
|
Waveform |
Pure sine wave |
|||
|
Peak efficiency(battery mode) |
>94% |
>94% |
>94% |
>94% |
|
Display&communication |
||||
|
LCD display |
Operating mode/load/input/output,etc. |
|||
|
Operating environment temperature |
0~40℃ |
|||
|
Operating environment humidity |
20%~95%(Non condensing) |
|||
|
Storage temperature |
-15~60℃ |
|||
|
Altitude |
The altitude should not exceed 1000m,derating above 1000m, up to 4000m,referto lEC62040 |
|||
|
Noise |
≤50db |
|||
|
Size L*W*H(mm) |
495*312*125 |
|||
|
Weight(KG) |
9.5 |
9.5 |
12.5 |
21.5 |
|
