WIFI 10kw Hybrid Solar Inverter

10kW Power Output: Delivers 10kW continuous AC power (surge capacity up to 20kW for 10 seconds) to handle heavy loads-central air conditioning, electric vehicle chargers, commercial refrigeration, and multiple household appliances. Compatible with single-phase (220V/240V) and 3-phase (380V) grids for versatile global use.

Dual MPPT Trackers: Two independent MPPT channels (max DC input 600V each) with 99.3% efficiency, optimizing power extraction from 20-25 x 500W solar panels. Each tracker adapts to shading, mixed panel orientations, or low light (e.g., dawn/dusk), boosting energy harvest by 30% compared to standard inverters.

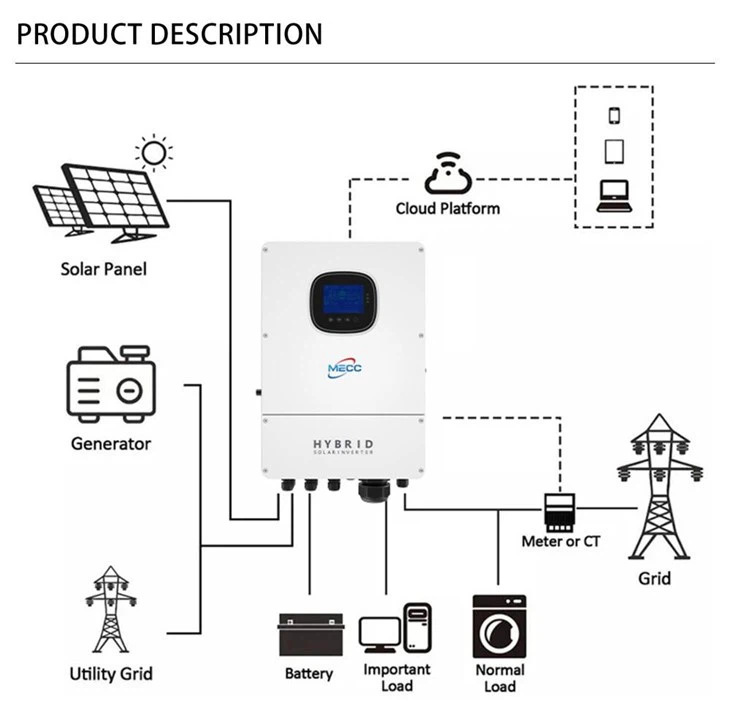

Hybrid Modes:

Grid-tied: Exports excess solar to the grid for net metering credits, reducing reliance on utility power.

Off-grid: Runs on solar + batteries for remote locations without grid access (e.g., rural farms, cabins).

Backup: Auto-switches to battery power in <10ms during outages, keeping critical systems (medical devices, security setups, home offices) operational.

WIFI & Smart Monitoring: Built-in WIFI connects to a cloud app, providing real-time data on solar production (kWh/day), battery SOC (State of Charge), grid consumption, and system errors. Remotely adjust settings-e.g., schedule battery charging during off-peak grid hours or set export limits to comply with local utility rules.

Battery Compatibility: Works with 48V/51.2V lithium-ion (LiFePO4, NMC) and lead-acid batteries, supporting up to 100kWh storage via parallel connections. Intelligent BMS integration prevents overcharging, deep discharge, and overheating, extending battery lifespan by 25-30%.
