The IP65 Hybrid Inverter 8KW is a high-power three-phase solar hybrid inverter built for outdoor all-weather installation. Featuring a professional IP65 waterproof and dustproof rating, this 16KW hybrid inverter can be mounted directly outdoors without extra protective shelters, perfectly adapting to rainy, snowy, dusty and high-temperature outdoor environments. Designed for residential villas, large households, commercial buildings, small factories and farm solar energy storage systems, it supports on-grid, off-grid and hybrid modes. It intelligently coordinates solar PV generation, battery energy storage and utility grid power to maximize self-consumption of solar energy, cut down monthly electricity costs, and provide reliable emergency backup power during unexpected grid outages.
1. High Performance
200% PV Oversizing & 110% AC Output: Supports up to 200% photovoltaic array oversizing and up to 110% AC output, enabling robust performance under heavy load conditions.
200% Peak EPS Power for 10s: Delivers 200% peak power for emergency power supply, ensuring critical loads remain operational during outages.
Max. 210A Charging/Discharging Current: Provides high-power battery handling for faster energy storage and retrieval.
80V Low Start-up Voltage: Ensures reliable operation even under low irradiance conditions, extending daily power generation hours.
Industry-leading Efficiency: Peak efficiency up to 96.00%, and MPPT efficiency ≥99%, maximizing solar energy utilization.
2. Assured Reliability
Battery Terminal Temperature Detection: Monitors battery health in real time to prevent overheating and ensure safe operation.
IP65 Protection Rating: Offers complete protection against dust and water, suitable for both indoor and outdoor installations.
Type II SPD on AC & DC Sides: Provides surge protection for both AC and DC circuits, safeguarding the system from voltage spikes.
Optional AFCI Protection: Reduces fire risks by detecting and mitigating arc faults in the PV system.
Comprehensive Certifications: Compliant with NRS 097-2-1, IEC61727, IEC62116, PEA, MEA, IEC62109-1/2, and IEC61000-6-1/-2, meeting global safety and EMC standards.
3. Smart Management
Smart Load Management: Optimizes energy distribution across connected loads to prioritize essential devices.
UPS-level Switchover Time: Grid-to-off-grid and off-grid-to-grid switchover time <4ms, ensuring uninterrupted power supply for sensitive equipment.
Self-adaption to BMS: Automatically adjusts charging/discharging strategies to match different lithium-ion battery BMS protocols.

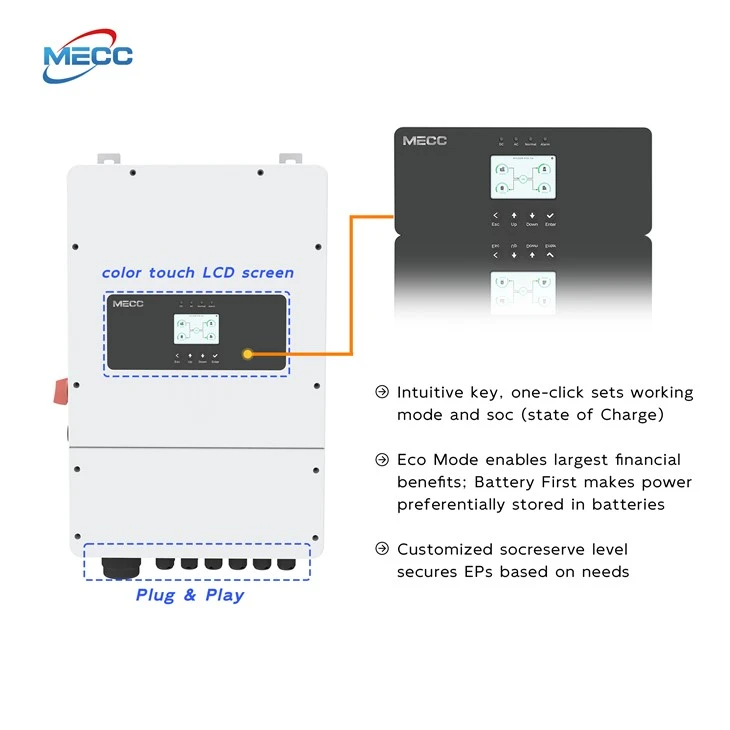

Multiple Communication Interfaces: Supports LED + LCD, CAN, RS485, CT, NTC, and WiFi for remote monitoring, configuration, and system integration.
WiFi & Upgrade Support: Enables OTA firmware updates and remote management for convenient after-sales service.
4. Flexible Adaptability
Max. 10pcs Parallel Operation: Enables scalable system design for on-grid and off-grid applications, supporting larger energy demands.
Generator Function Compatibility: Integrates seamlessly with generators for versatile backup power solutions.
Max. 28A Input per String: Optimized for high-power solar panels, reducing installation costs and complexity.
Wide Grid Compatibility: Supports rated AC voltages of 220/230Vac, with grid frequencies of 50Hz/60Hz, making it suitable for global markets.
Versatile Application Scenarios: Ideal for residential homes, farms, telecom stations, rural areas, islands, and pastures, adapting to diverse energy needs.
| Model | HI-IP6K-LV | HI-IP8K-LV | HI-IP10K-LV | HI-IP12K-LV |
|---|---|---|---|---|
| PV INPUT | ||||
| Max. PV Array Power | 12000W | 16000W | 20000W | 24000W |
| Max. PV Input Power | 9600W | 12800W | 16000W | 19200W |
| Max. PV Input Voltage | 510V | 510V | 510V | 510V |
| Rated Voltage | 360V | 360V | 360V | 360V |
| Start-up Voltage | 80V | 80V | 80V | 80V |
| MPPT Range | 90V – 425V | 90V – 425V | 90V – 425V | 90V – 425V |
| Max input Current per MPPT | 18 + 18A | 18 + 18A | 28 + 28A | 28 + 28A |
| Max. Short Circuit Current per MPPT | 27 + 27A | 27 + 27A | 42 + 42A | 42 + 42A |
| No.of MPPT/No.of String Per MPPT | 2/1+1 | 2/1+1 | 2/2+2 | 2/2+2 |
| BATTERY DATA | ||||
| Battery Type | Lead acid / Lithium | Lead acid / Lithium | Lead acid / Lithium | Lead acid / Lithium |
| Rated Voltage | 48V | 48V | 48V | 48V |
| Voltage Range | 40V–60V | 40V–60V | 40V–60V | 40V–60V |
| Max. Current | 135A | 190A | 200A | 210A |
| AC INPUT & OUT (ON-GRID) | ||||
| Rated Output Power | 6000W | 8000W | 10000W | 12000W |
| Max. Output Power | 6600VA | 8800VA | 11000VA | 13200VA |
| Max. Input Power | 6600VA | 8800VA | 11000VA | 13200VA |
| Grid Type | 220/230Vac, L/N/PE, 50/45-55, 60/55-65Hz, 0.85Un-1.1Un | 220/230Vac, L/N/PE, 50/45-55, 60/55-65Hz, 0.85Un-1.1Un | 220/230Vac, L/N/PE, 50/45-55, 60/55-65Hz, 0.85Un-1.1Un | 220/230Vac, L/N/PE, 50/45-55, 60/55-65Hz, 0.85Un-1.1Un |
| Max. Output Current | 28.7A | 38.3A | 43.5A | 52.2A |
| Max. Input Current | 35A | 44A | 45.5A | 54.6A |
| Power Factor | ~1(-0.8lagging…0.8leading) | ~1(-0.8lagging…0.8leading) | ~1(-0.8lagging…0.8leading) | ~1(-0.8lagging…0.8leading) |
| THDi | < 3% | < 3% | < 3% | < 3% |
| EPS (OFF-GRID) OUTPUT (WITH BATTERY) | ||||
| Rated Output Power | 6000W | 8000W | 10000W | 12000W |
| Rated EPS output voltage, frequency | 220 / 230 Vac, L / N / PE, 50 / 45 - 55, 60 / 55 - 65 Hz, 0.85 Un - 1.1 Un | 220 / 230 Vac, L / N / PE, 50 / 45 - 55, 60 / 55 - 65 Hz, 0.85 Un - 1.1 Un | 220 / 230 Vac, L / N / PE, 50 / 45 - 55, 60 / 55 - 65 Hz, 0.85 Un - 1.1 Un | 220 / 230 Vac, L / N / PE, 50 / 45 - 55, 60 / 55 - 65 Hz, 0.85 Un - 1.1 Un |
| Peak Power (off-grid) | 1.5 times of rated power 30 min | 1.5 times of rated power 30 min | 1.5 times of rated power 30 min | 1.5 times of rated power 30 min |
| On/Off grid switching time | < 4 ms | < 4 ms | < 4 ms | < 4 ms |
| EFFICIENCY | ||||
| Peak Efficiency | 96.00% | 96.00% | 96.00% | 96.00% |
| MPPT Efficiency | >99% | >99% | >99% | >99% |
| INTERFACE | ||||
| Communication Interface | LED + LCD / CAN, RS485, CT, NTC, WiFi | LED + LCD / CAN, RS485, CT, NTC, WiFi | LED + LCD / CAN, RS485, CT, NTC, WiFi | LED + LCD / CAN, RS485, CT, NTC, WiFi |
| Type of Cooling | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling |
| GENERAL DATA | ||||
| Size(LHW)/mm | 411 × 631 × 238 mm | 411 × 631 × 238 mm | 411 × 631 × 238 mm | 411 × 631 × 238 mm |
| Weight/kg | 30 kg | 30 kg | 30 kg | 30 kg |
| Operating Temperature Range | -25 ℃ ~ +60 ℃ (>45 ℃ derating) | -25 ℃ ~ +60 ℃ (>45 ℃ derating) | -25 ℃ ~ +60 ℃ (>45 ℃ derating) | -25 ℃ ~ +60 ℃ (>45 ℃ derating) |
| Storage temperature | -25℃ ~ +70℃ | -25℃ ~ +70℃ | -25℃ ~ +70℃ | -25℃ ~ +70℃ |
| Permissible Ambient Humidity | 5 ~ 95% (Non-condensing) | 5 ~ 95% (Non-condensing) | 5 ~ 95% (Non-condensing) | 5 ~ 95% (Non-condensing) |
| Permissible Altitude | < 3000 m | < 3000 m | < 3000 m | < 3000 m |
| Ingress protection | IP65 | IP65 | IP65 | IP65 |
| Noise | <45 dB | <45 dB | <45 dB | <45 dB |
| Inverter Topology | Transformerless for PV side / HF for battery side | Transformerless for PV side / HF for battery side | Transformerless for PV side / HF for battery side | Transformerless for PV side / HF for battery side |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) |
| Type of Cooling | Intelligent Redundant Fan-cooling | Intelligent Redundant Fan-cooling | Intelligent Redundant Fan-cooling | Intelligent Redundant Fan-cooling |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
