Products Description

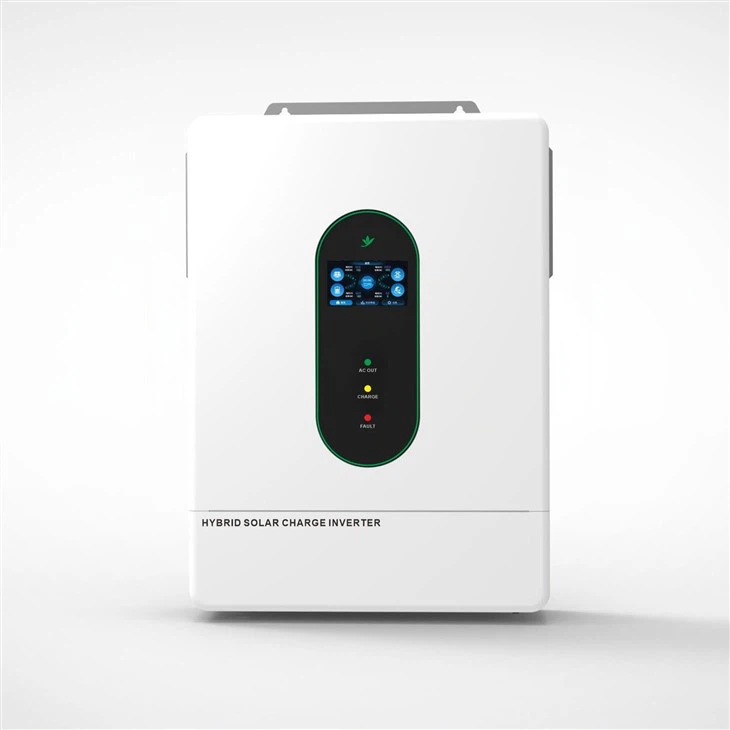

10-12kw Hybrid Inverter

Visualization of Energy Flow Analysis

The accompanying software or monitoring interface of the inverter provides a visual representation of the energy flow within your system. You can see at a glance how much power is being generated by the solar panels, stored in the batteries, consumed by your loads, and transferred to or from the grid. This intuitive visualization tool helps you better understand your energy usage patterns and make more informed decisions about energy conservation, system expansion, or load management.

Child Lock Function for Safety

For households with young children, safety is paramount. The inverter comes with a convenient child lock function. This feature disables any accessible controls on the device, preventing accidental tampering or adjustments that could pose a risk. It gives parents an added layer of security, ensuring that curious little hands can't disrupt the inverter's operation or endanger themselves while still allowing adults to easily unlock and manage the system when needed.

Clean Room Assembly for Sensitive Components

For certain sensitive components, like optical sensors or high-precision microelectronics, assembly takes place in a clean room environment. The clean room maintains extremely low levels of particulate matter, preventing contamination that could affect component performance or reliability. Specialized handling procedures and equipment are used to ensure the integrity of these critical parts.

TYPE	GES48100M200-500	GES48120M220-500
INVERTER
Rated Output Power	10000W	12000W
Max.Peak Power	15000W	18000W
Rated Output Voltage	120/240Vac(L1/L2/N/PE split phase)
Rated AC Frequency	50/60Hz
BATTERY
Battery Type	Li-ion/Lead-Acid
Rated Battery Voltage	48V
Max.MPPT Charging Current	200A
PV INPUT
Num. of MPPT Trackers	2
Max.PV Array Power	12000W
Max.Input Current	22/22A
MPPT Voltage Range	90Vdc~450Vdc
EFFICIENCY
MPPT Tracking Efficiency	99%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	620450132
Operating Temperature Range	-10~55℃,>45°C derated
COMMUNICATION
Embedded interfaces	RS485/USB/ Dry contact
External Modules (Optional)	Wi-Fi/GPRS

product-1000-97

hybrid inverter071

Factory

Data-Driven Decision Making

Every aspect of our factory operations is underpinned by data-driven decision making. From production planning to quality control, we collect and analyze vast amounts of data. Dashboards provide real-time insights into key performance indicators, allowing managers to spot trends, identify bottlenecks, and make informed decisions promptly. Data analytics teams conduct in-depth studies, uncovering hidden opportunities for improvement and driving continuous optimization across the factory.

FAQ

Can I adjust the inverter's charging and discharging settings for the battery?

Yes, you can customize the inverter's charging and discharging settings for the battery. Through the control interface, you can set parameters like maximum charging current, charging voltage limits, and discharge cut-off voltages. This flexibility allows you to adapt the battery management to your specific battery type, its age, and your energy usage patterns. For example, if you have a new lithium-ion battery, you might set a higher charging current for faster charging, while for an older battery, you could reduce the current to prolong its life.

What is the inverter's role in a net metering system?

In a net metering system, the inverter plays a crucial role. It enables accurate measurement and recording of the energy you generate from solar panels and feed back into the grid. The integrated energy meter ensures that the utility company can precisely track the surplus power you supply, which is then credited to your account, typically offsetting your electricity consumption during periods when you draw power from the grid. This seamless integration with net metering allows you to make the most of your solar investment and potentially reduce your overall energy bills.
