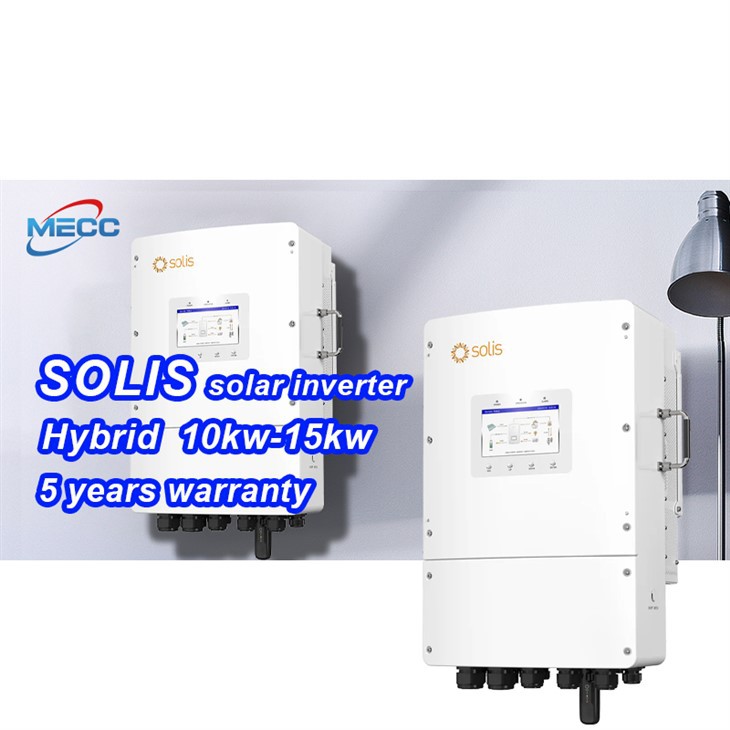

Hybrid 12kw 3 phase inverter

High conversion efficiency: It can efficiently convert DC power into three-phase AC power, with a general efficiency of about 98%, and the European efficiency level can also reach over 97%, reducing energy loss during the conversion process. For example, AEG's three-phase hybrid inverter has an efficiency of up to 98.2%, and the European efficiency level is 97.5%.

Wide input voltage range: The MPPT voltage range is relatively wide, such as some products with an MPPT voltage range of 120V-850V, which can adapt to different lighting conditions and output characteristics of solar panels, and more effectively collect solar energy.

Multiple MPPT channels: Generally, multiple Maximum Power Point Tracking (MPPT) channels are provided. For example, AEG's three-phase hybrid inverter provides three MPPT channels, which can track the maximum power point of different groups of solar panels and improve the overall power generation efficiency of the system.

Multiple operating modes: It has multiple operating modes, such as grid connected mode, off grid mode, and hybrid mode, which can be flexibly switched according to actual needs. It can be connected to the grid to integrate excess power into the grid, or independently supply load power in case of grid failure or absence. It can also achieve the combination of the two to improve the flexibility and reliability of energy utilization.

Model	S6-EH3P10K02-NV-YD-L	Battery type	Lead acid or lithium battery
Mains mode		Max. charge current	220A
Nominal input voltage	380/400V	Charge voltage range	40 –60Vdc
Frequency	50Hz/60Hz (Auto detection)	Solar charge
Max. efficiency	97.6%	PV operate voltage range	200Vdc~800Vdc
Inverter mode		MPPT voltage range	200Vdc~800Vdc
Output voltage waveform	Pure sine wave	Max. PV input power/current	16000W/40A
Nominal output power(VA)/(W)	10000W	Charge current range	220A
Nominal output voltage (Vac)	380/400V	Certification
Peak power	20000VA	EMC certification level	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 PEA\MEA, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Protection	IP66	Operate temperature range	-40 to +60℃
Battery voltage range	40.0Vdc~60Vdc	communicate	RS485/CAN
Mains charge		Humidity range	5% to 95%(Conformal coating protection)

Comparison Of Protection Levels

IP66 VS IP65

Dustproofcapability: Dustproof capability:

Completely dust-proof, no particles enter Completely dust-proof, no particles enter
Waterproofcapability: Waterproofcapability:

Protect against strong water column impact, twice Protect against low pressure water column impact
the water proof capacity of IPx5

Absolute advantage:
Dust-proof , IP66 can withstand strong currents, use is wider inthe environment of strong
convective weather like typhoon, rainstorm frequent have stronger adapt ability

-107 -

FAQ

Is a 12kW hybrid inverter suitable for large-scale commercial projects?
A 12kW hybrid inverter is typically more suitable for small commercial projects or larger household applications. For large commercial projects, a power of 12kW may be relatively small and difficult to meet the large-scale electricity demand. Large commercial venues generally require higher power inverters to support a large number of solar panels and complex power systems. However, if a commercial project has a certain stage or locality in electricity demand and can meet the demand through parallel or distributed configuration of multiple 12kW hybrid inverters, it can also be used after reasonable design and planning, but it is generally not the preferred solution. In this case, professional power engineers are required to conduct a detailed system evaluation and design to ensure the stability and efficiency of the system.

What are the installation space requirements for a 12kW hybrid inverter?
Generally speaking, a 12kW hybrid inverter has a relatively large volume and requires a certain amount of installation space. It is usually recommended to install in a well ventilated, dry, non corrosive gas, and suitable temperature environment, with sufficient space around for heat dissipation and maintenance. Specifically, at least 15-30 centimeters of space should be left around the inverter, and there should also be a certain gap between the top and bottom to ensure free air circulation and prevent heat accumulation. At the same time, avoid installing it in direct sunlight or near heat sources. If it is a wall mounted installation, the wall needs to be able to withstand the weight of the inverter, and generally requires the wall to have sufficient strength and stability. In addition, the installation location should be convenient for electrical connections and maintenance operations, and it is best to have nearby circuit breakers and distribution boxes that are easy to operate.
