Product Description

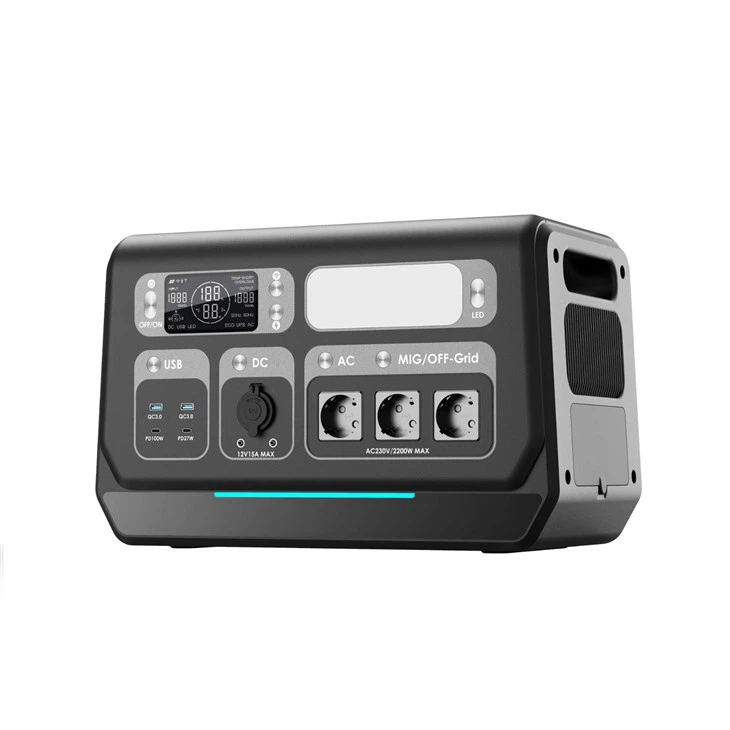

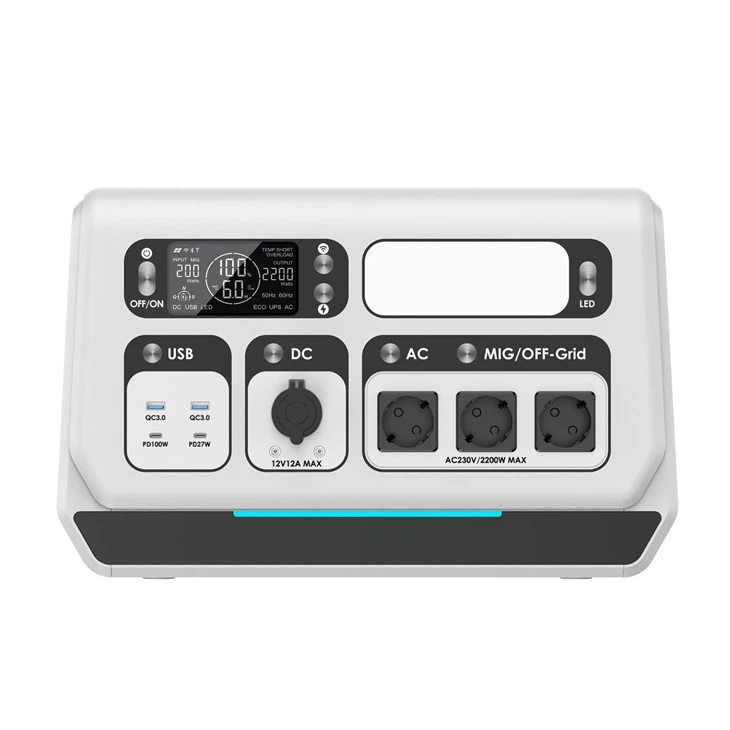

2200W LIFEPO4 Portable Emergency Power 2048WH-10240WH

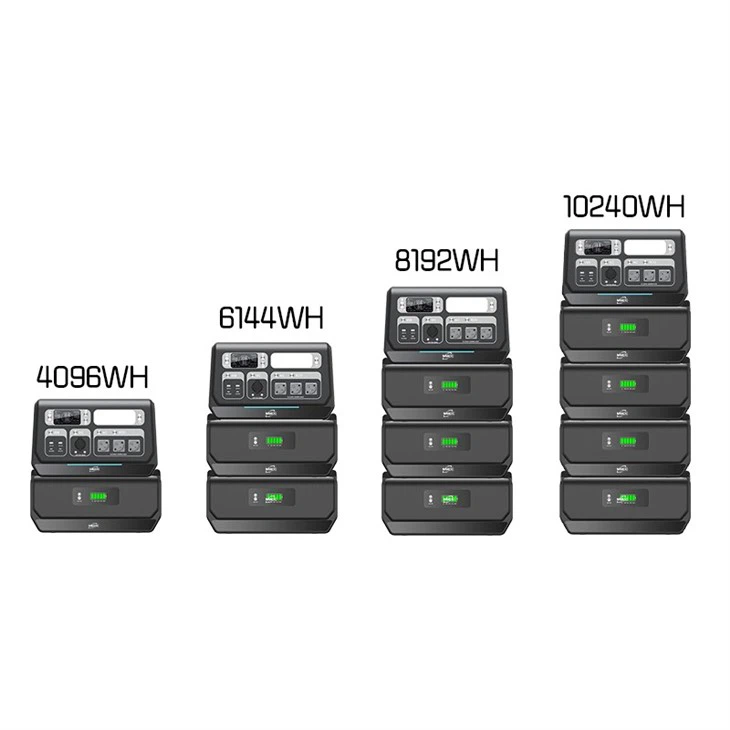

- Up to 10240WH Expandable Capacity
- LED Light; Rich output ports
- Customized In-APP Energy Management
- Solar energy input
- 10 year long lasting LFP battery
Product parameters
|
SPECIFICATION
|
||
|
Battery Power
|
2048Wh±5% Lithium iron phosphate Batteries
|
|
|
AC Input Charging
|
AC174~264V Bi-directional inverter charging power 1600W MAX
|
|
|
CAR Input Charging
|
DC12-24V/10A 240W Max
|
|
|
Solar Panel Input
|
PV18~145V/25A 1600W Max
|
|
|
DC Output
|
1x Cigarette Lighter 13.8V/12A Max
2x DC Rated Output 13.8V/5A Max Total 12A Max
|
|
|
AC Output
|
Pure Sine Wave Output
AC Continuous Output: 2200W Max
AC Max Output: 4400W@0.2 seconds
AC Voltage: 230VAC±10%
Output Frequency: 50Hz±5%
|
|
|
Micro-Inverter Connection Output
|
Germany: 200W/400W/600W/800W MAX
Adjustment of grid output power via APP
Other European countries: The equipment can support up to 2200W grid connected output (additional application needs to be submitted to relevant authorities)
|
|
|
AC Plug support
|
3x 3-pin- EU outlet
|
|
|
USB Output
|
USB-A1: Blue QC18w Max, 5V2.4A&9V2A&12V1.5A QC3.0
USB-A2: Blue OC18W Max, 5V2.4A&9V2A&12V1.5A QC3.0
USB-C1: PD100W Max, 5V3A&9V3A&12V3A&15V3A&20VSA PD3.0
USB-C2: PD27W Max, 5V3A&9V3A&12V2.25A&15V1.8A&20V1.35A
|
|
|
Bulb Type
|
3W Max,3 Levels (L/M/H)+ SOS
|
|
|
Operation temperature
|
0°C~40°C
|
|
|
Lifecycle
25'℃ 90%DOD Cycle Life
|
After 3500 cycles, Capacity retention>70% Initial Capacity (Charge and discharge power ≤ 1000W per time, under 25°C ambient temperature Cycle Life)
|
|
|
Charge While Discharge
|
Support
|
|
|
Product Size
|
465*260*295mm L*W*H
|
|
|
Product Weight
|
23kgs
|
|
|
MultiSafety Protections
|
a. Short-circuit protection b.Over-current protection
c.Over-voltage protection d.Low-voltage protection
e.Over-load Protection f. Over-temperature protection
|
|
|
Certification
|
VDE4105/CE/ROHS/UN38.3/MSDS/OCEAN/AIR shipment Report
|
|
By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection
The lightweight nature of the portable emergency power supply makes it an ideal companion for travel. It doesn't add significant weight to your luggage, allowing you to move around freely and comfortably. It is equipped with multiple charging ports, which means you can charge several devices simultaneously. These ports often include a variety of connectors to accommodate different types of electronics, from the latest smartphones with USB-C ports to older devices that still use traditional USB or even specialized connectors for certain gadgets.
FAQ
How long can it supply power?
The duration it can supply power depends on multiple factors. Firstly, the power consumption of the connected devices plays a crucial role. For instance, a device with a power rating of 50 watts will drain the battery at a slower rate compared to a 500-watt device. Secondly, the battery capacity of the power supply itself is a determining factor. As an example, if a power supply has a 2000 watt-hour capacity and is powering a 100-watt device, it could potentially supply power for about 20 hours. However, this is a simplified calculation, and actual runtime may be affected by factors like battery efficiency and power conversion losses.
Is it easy to install?
Most portable grid-connected emergency power supplies are designed with user-friendliness in mind for installation. They usually come with standard plug-in connections for both the grid input and device outputs. To install, one simply plugs the power supply into a regular electrical outlet in the grid. Then, the devices to be powered are plugged into the corresponding output ports of the power supply. Some models may also have additional features like wireless connectivity or smart home integration, which might require a simple setup process following the manufacturer's instructions, but overall, the basic installation is straightforward and can be done by most users without extensive technical knowledge.
