Products Description

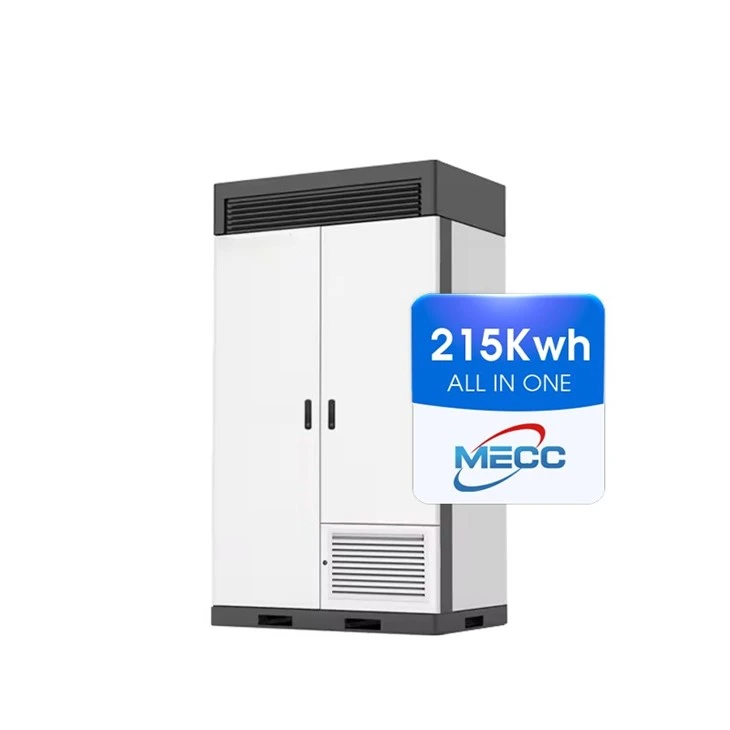

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container
They can store energy generated from cogeneration or combined heat and power (CHP) systems.
Products parameter
|
BATTERY PACK 1P16S |
|
|
RATED VOLTAGE |
51.2V |
|
NOMINAL CAPACITY |
280AH |
|
PACK POWER |
14.336KWH |
|
WEIGHT |
130KG |
|
BATTERY SYSTEM 1P224S |
|
|
RATED VOLTAGE |
716.8V |
|
NOMINAL CAPACITY |
280AH |
|
RATED CURRENT |
140A |
|
BATTERY POWER |
215KWH |
|
VOLTAGE RANGE |
627.2-806.4V |
|
MAX EFFICIENCY |
≥95% |
|
OPTIMAL WORKING TEMPERATURE RANGE |
-20°C-60°C |
|
PROTECTION DEGREE |
IP54 |
|
DIMENSION |
2250*1300*1190MM |
|
WEIGHT |
2100KG |
|
CERTIFICATES |
CE, UN38.3,UL,ROHS, EMC, REACH |
