Industrial Solar Energy System With 280AH Capacity

280Ah Large-Format Cells for Industrial-Level Storage: Industrial solar energy system powered by 280Ah LiFePO4 cells, delivering robust energy storage (e.g., 215kWh in 768V configurations) to meet the high demands of manufacturing plants, warehouses, and industrial facilities. These large-format cells provide stable power for heavy machinery, conveyor belts, and industrial HVAC systems, even during peak production hours (8 AM–6 PM).

Products Description

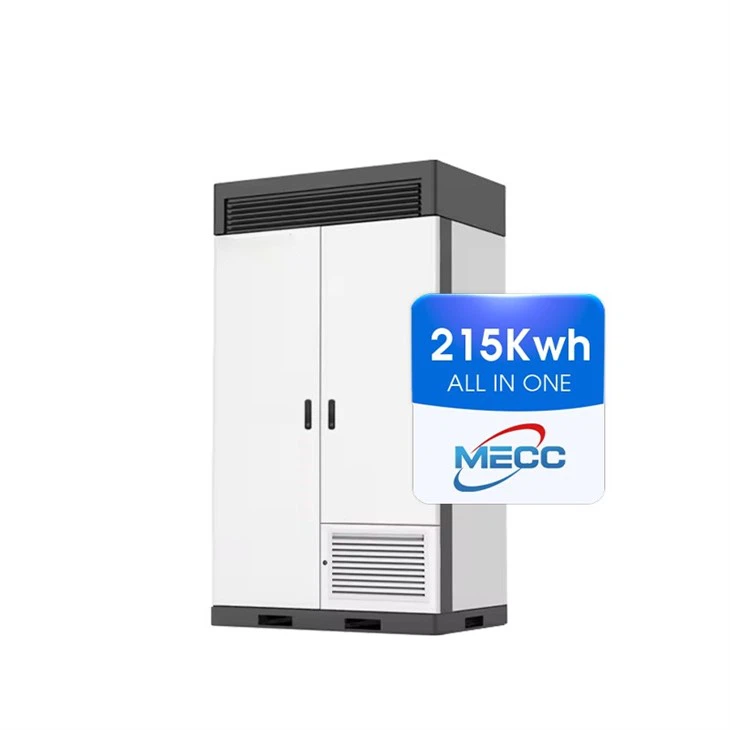

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container

280Ah Cell Durability for Industrial Longevity:
280Ah LiFePO4 cells engineered to withstand 6,000+ charge-discharge cycles (15+ year lifespan) at 25°C, retaining 80% capacity after a decade of daily deep discharges. Their large format reduces connection points by 50% vs. smaller 100Ah cells, lowering failure risks in vibration-prone industrial environments (factories, workshops) and minimizing maintenance downtime.

High-Efficiency Solar + 280Ah Storage Integration:
Combines high-performance solar panels (22-23% efficiency) with 280Ah battery storage, boosting renewable self-consumption from 50% (without storage) to 85%+. Stores excess solar energy during daylight hours for use in evenings or cloudy periods, reducing industrial grid electricity costs by 30–40% annually.

280Ah-Optimized Power Conversion:
100kW bi-directional PCS (Power Conversion System) calibrated for 280Ah cell performance, boasting 98.2% efficiency. Seamlessly converts stored DC energy to 3-phase AC (480V/600V) for industrial grids, with 1C charge/discharge capability (215kWh in 1 hour) to handle sudden load spikes (e.g., industrial motor startups, compressor cycles).

Advanced BMS for 280Ah Cell Health:
Industrial-grade Battery Management System (BMS) monitors 280Ah cells in real time, balancing voltage to ±3mV to prevent overcharging/over-discharging. Tracks temperature, current, and cell degradation, sending alerts for maintenance needs to extend lifespan. Ensures safe operation with FM-200 fire suppression and ground fault protection (NFPA 70E compliant).

Products parameter

BATTERY PACK 1P16S
RATED VOLTAGE	51.2V
NOMINAL CAPACITY	280AH
PACK POWER	14.336KWH
WEIGHT	130KG
BATTERY SYSTEM 1P224S
RATED VOLTAGE	716.8V
NOMINAL CAPACITY	280AH
RATED CURRENT	140A
BATTERY POWER	215KWH
VOLTAGE RANGE	627.2-806.4V
MAX EFFICIENCY	≥95%
COOLING	FORCED AIR
OPTIMAL WORKING TEMPERATURE RANGE	-20°C-60°C
PROTECTION DEGREE	IP54
DIMENSION	225013001190MM
WEIGHT	2100KG
CERTIFICATES	CE, UN38.3,UL,ROHS, EMC, REACH
