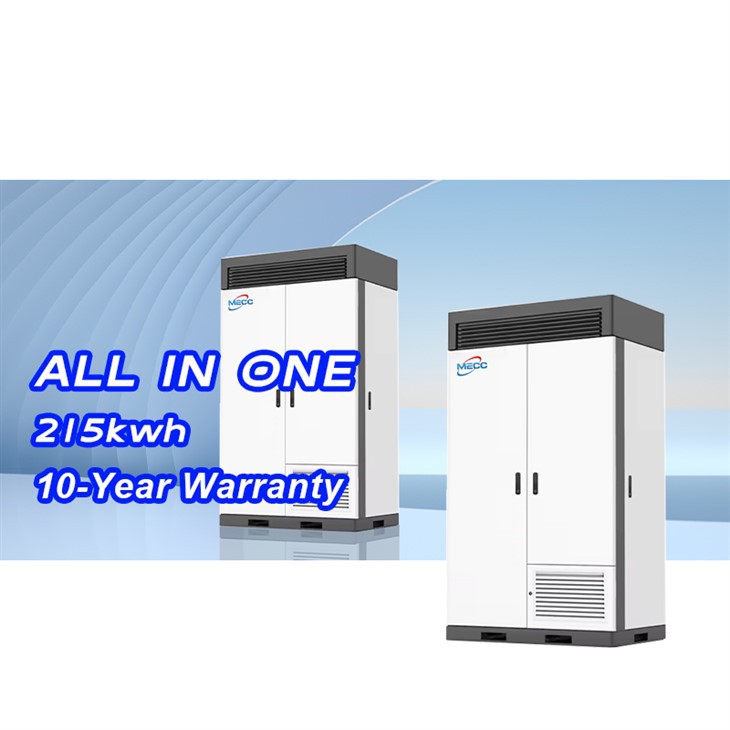

Energy Cabinet Commercial

1. Compact Design, Big Capacity

Space-Saving Form Factor: Slim cabinet design (typically 120cm × 60cm × 80cm) fits in utility closets, backrooms, or under stairwells-saving 50% floor space vs. traditional rack-mounted systems. Ideal for space-constrained commercial areas like cafes, convenience stores, or small offices.

Scalable Capacity: Configurable from 50kWh to 200kWh using LiFePO4 batteries (280Ah large-format cells), with 80% depth of discharge (e.g., 80kWh usable from 100kWh). Powers critical loads (POS systems, refrigeration, lighting) for 8–12 hours during outages.

2. High-Efficiency Energy Management

Integrated PCS: Built-in 50kW–100kW bi-directional Power Conversion System (PCS) with 98% efficiency, converting stored DC to 3-phase AC (400V/480V) for seamless grid integration.

Smart Charging/Discharging: Supports 0.5C–1C rates (e.g., 100kWh charged in 1 hour via solar or grid), with AI-driven algorithms to prioritize solar self-consumption (storing excess PV energy) and peak shaving (reducing high-tariff grid usage by 30–40%).

3. Durable & Safe for Commercial Spaces

LiFePO4 Longevity: 6,000+ cycles (15+ year lifespan) with 80% capacity retention, enduring daily commercial use. Non-flammable chemistry eliminates fire risks, making it safe for indoor, occupied areas.

Advanced Safety Features: Built-in BMS (Battery Management System) with cell balancing (±3mV), overcharge/over-discharge protection, and thermal runaway prevention. Includes smoke detectors and optional FM-200 fire suppression, compliant with UL 94 V-0 and NFPA 70E.















FAQ

How long does it take to fully charge?

The charging time is influenced by several variables. When connected to a standard 220V household outlet, which provides a relatively stable yet not overly potent power source, it can take around 6 to 8 hours to fully charge a mid-sized unit. This is because the device needs to manage the charging process carefully to safeguard the battery's health. It gradually ramps up the charge rate as the battery warms up and can handle more current, and slows it down near the end to prevent overcharging. If you opt for a higher-power charger, such as one that can supply double the amperage, the charging time could potentially be halved. Additionally, when combined with solar power, the charging time becomes more dynamic. On a sunny day with optimal solar panel efficiency, it could take anywhere from 4 to 10 hours, depending on the size of the panels and how much sunlight they're receiving. The device also has built-in smarts to balance the input from different sources and prioritize charging based on your preferences and the availability of power.
