Products Description

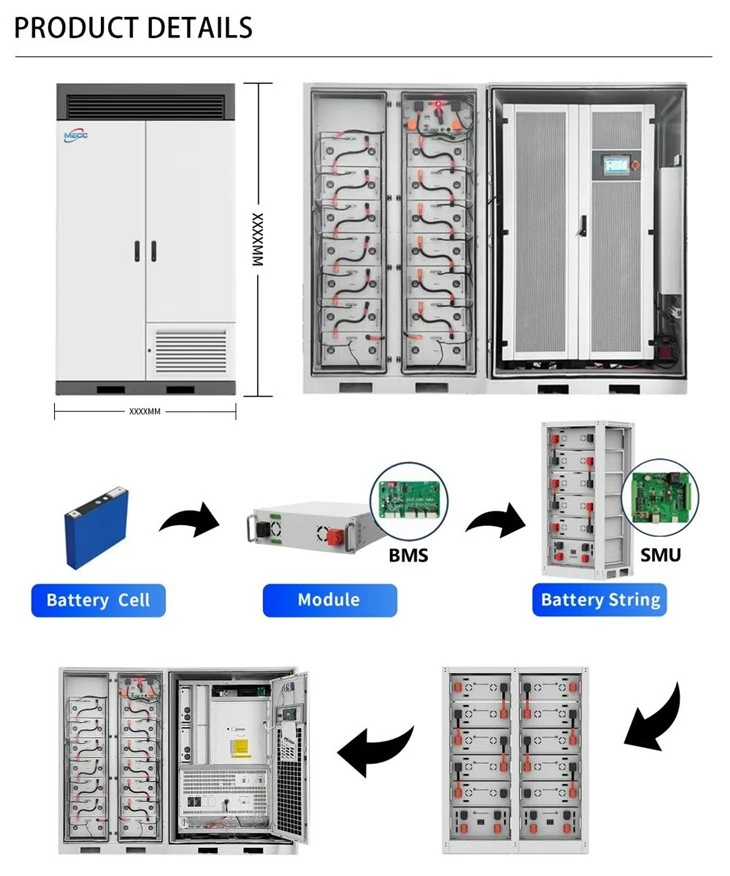

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container
- All-In-One Design
- Optional System Protection
- Flexible Configuration
Products parameter
|
BATTERY PACK 1P16S |
|
|
RATED VOLTAGE |
51.2V |
|
NOMINAL CAPACITY |
280AH |
|
PACK POWER |
14.336KWH |
|
WEIGHT |
130KG |
|
BATTERY SYSTEM 1P224S |
|
|
RATED VOLTAGE |
716.8V |
|
NOMINAL CAPACITY |
280AH |
|
RATED CURRENT |
140A |
|
BATTERY POWER |
215KWH |
|
VOLTAGE RANGE |
627.2-806.4V |
|
MAX EFFICIENCY |
≥95% |
|
COOLING |
FORCED AIR |
|
OPTIMAL WORKING TEMPERATURE RANGE |
-20°C-60°C |
|
PROTECTION DEGREE |
IP54 |
|
DIMENSION |
2250*1300*1190MM |
|
WEIGHT |
2100KG |
|
CERTIFICATES |
CE, UN38.3,UL,ROHS, EMC, REACH |
Full Customization
Data controllability
Waterproof class
Voltage variation
Technical Service
Certification
Agricultural Electricity
Photovoltaic System
Greenhouse Lighting
Marine System
Prairie Madrigal
Plant Power
Energy storage can reduce the need for additional power - conditioning equipment.
Industrial and commercial energy storage can improve the energy availability for continuous - process industries.
These systems can provide a more stable power supply for laboratory equipment.
