Enhanced Performance 15kw Hybrid Solar System

15kW High-Performance Inverter: Delivers 15kW continuous AC power (30kW surge capacity) with 98.2% efficiency—3% higher than standard hybrid inverters—minimizing energy loss during conversion. Advanced cooling technology maintains peak performance even at 104°F (40°C), ensuring reliable operation during heatwaves or high-demand periods.

Products Description

1~30KW Solar Energy Systems

Enhanced MPPT Technology: Equipped with 4 independent MPPT channels (each handling up to 6kW), optimizing energy capture from 25–26 x 590W dual-glass panels. This allows flexible panel placement (e.g., split across multiple roof angles or orientations), boosting daily yield by 15–20% compared to single-channel systems-critical for maximizing output in complex setups.

Superior Solar Harvest: 590W panels with 23.8% conversion efficiency (0.3% higher than standard models) and anti-reflective, anti-soiling glass generate 45–65kWh/day in sunny regions. Their low-light performance is enhanced by PERC (Passivated Emitter and Rear Cell) technology, capturing 10% more energy during dawn, dusk, or overcast conditions.

High-Capacity Battery Storage: 30–45kWh LiFePO4 battery with 85% depth of discharge (25.5–38.25kWh usable) and 4,000+ cycles (12+ year lifespan). Advanced BMS with active cell balancing ensures consistent performance, while fast-charging capability (up to 10kW) replenishes storage quickly during peak sunlight-ideal for short, intense solar windows.

Dual-Mode Optimization: Seamlessly switches between grid-tied (maximizing self-consumption and export) and backup modes, with 5ms outage detection to prevent disruptions. "Peak Shaving" mode automatically discharges batteries during high-tariff grid hours, cutting electricity costs by 20–25% in regions with time-of-use pricing.

product-1000-451

Years Solar Panel

Years PV Racking

Years Battery

Years Inverter

One-stop service, including free system design, installation manual & instructions and videos, after-sales accessories, online technical support, etc.

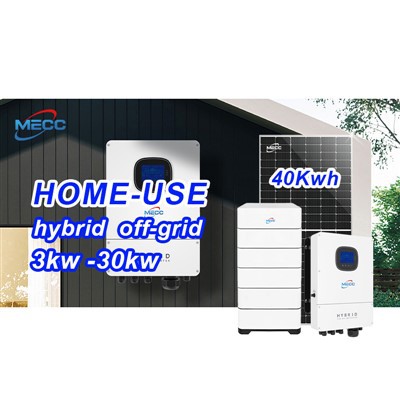

Home Use Hybrid Solar Energy Storage System
Item	Mecc-3kw	Mecc-5kw	Mecc-8kw	Mecc-10kw	Mecc-15kw	Mecc-20kw	Mecc-30kw
Mono Solar Panel 550W	6pcs	10pcs	16pcs	20pcs	30pcs	40pcs	60pcs
Hybrid Inverter/ Off-grid Inverter	110V/220V 220V 380V 50 - 60HZ Selectable 3KW 5KW 8KW 10kw 12kw 15kw 20kw 30kw Selectable
Panel Bracket	Ground mounts, roof mounts, a wide range of PV mounts to choose from
PV Combiner box	N in 1 out
MC4 Connector	4pairs		8pairs			16pairs
PV Cable	4M² 50M			4M² 100M
lithium Battery (power wall) (Can be added) (5KWH)	Lithium Battery Packs BMS/MBMS/EMS Protection; GEL/OPzV Batteries Optional
Cloud Monitoring System	1pcs
