Products Description

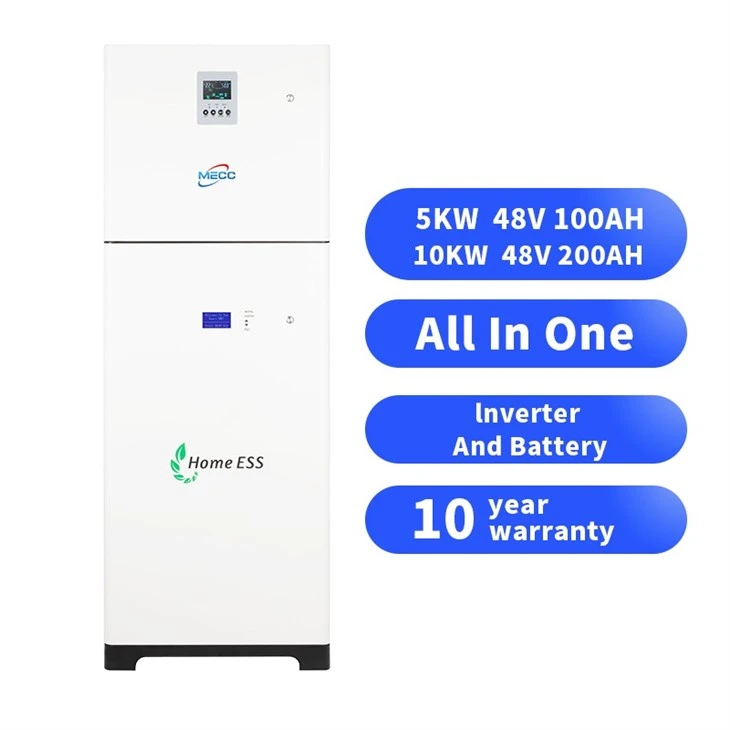

5-20KWH Energy Storage System ESS
5kW Power Output for Daily Household Needs
The All-In-One ESS Solar System delivers a continuous 5kW AC power (with surge capacity up to 10kW) to run essential and moderate-energy appliances, including refrigerators, air conditioners, TVs, lighting, and home office equipment. Perfect for small to medium households with daily energy consumption of 8–15kWh.
Solar-Powered Efficiency with MPPT Technology
Equipped with an advanced MPPT (Maximum Power Point Tracking) solar charge controller (efficiency up to 98%), which optimizes energy capture from solar panels even in low-light, cloudy, or shaded conditions. This boosts daily solar yield by 10–15% compared to standard systems, maximizing use of free renewable energy.
High-Capacity Battery for 24/7 Power Security
Lithium-Ion (LiFePO4) Battery: Features a 10–15kWh capacity with 3,000+ charge cycles (10+ year lifespan), storing excess solar energy generated during the day for nighttime use or grid outages.
Deep Discharge Capability: Safely discharges up to 80% of its capacity, providing 12–24 hours of backup power for critical loads (e.g., medical devices, security systems) during blackouts.
Intelligent BMS: A built-in Battery Management System prevents overcharging, deep discharge, short circuits, and thermal runaway, extending battery life and ensuring safe operation.
Hybrid Flexibility: Solar, Grid, and Backup Modes
Solar Priority Mode: Automatically uses solar energy first, minimizing grid dependency and reducing monthly electricity bills by 30–60%.
Grid Backup Mode: Seamlessly switches to battery power in milliseconds during grid outages, ensuring uninterrupted operation for essential appliances.
Peak Shaving: Reduces costs by drawing stored energy during high-tariff grid hours (e.g., evenings), avoiding expensive peak-time rates.
Products parameter
|
Product model |
BP100S16-F |
BP200S16-F |
|
Cell type |
battery cell-3.2V100Ah |
|
|
Rated capacity |
100Ah |
200Ah |
|
Rated total energy |
5.12kWh |
10.24kWh |
|
Rated voltage |
51.2V |
|
|
Voltage range |
43.2~58.4V |
|
|
|
||
|
Maximum output power |
5000W |
|
|
Solar charging current |
0~80A |
|
ALL IN ONE DESIGN
01
REMOTE CONTROL
02
EASY INSTALLATION
03
BACKUP PROTECTION
04
SAFE RELIABLE
05
Solar energy factories promote water conservation by providing an energy source that requires minimal water usage. This attribute is especially crucial in arid regions where water resources are limited.
