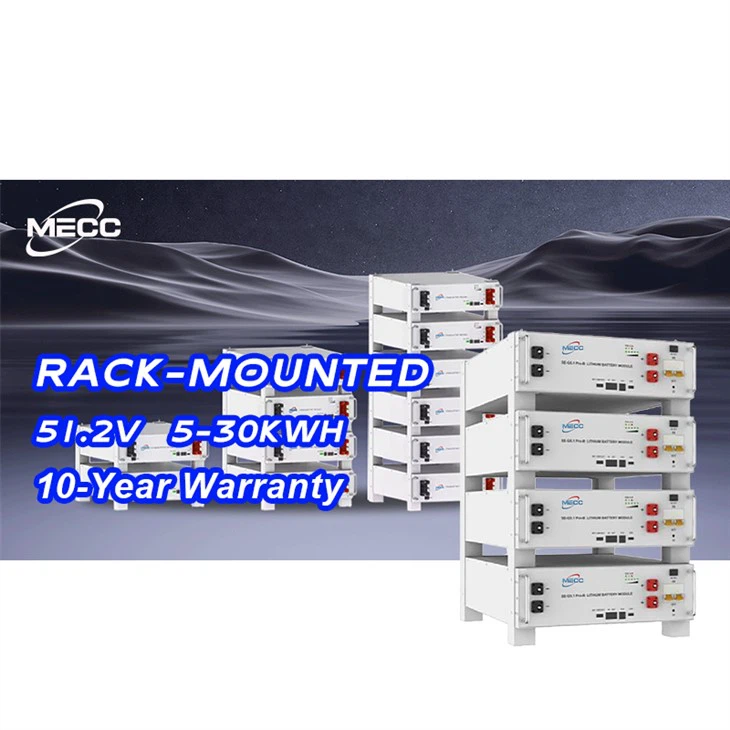

51.2V 100AH Rack Mounted lifepo4 battery

Rack batteries are easy to maintain, a feature that is highly valued by businesses and organizations. Their modular design allows for simple replacement of individual components. If a particular battery module fails or shows signs of degradation, it can be quickly and easily removed from the rack and replaced with a new one. This reduces maintenance time significantly compared to non modular battery systems, where a single faulty component may require the entire battery to be replaced.

In a large scale energy storage facility, maintenance staff can quickly identify and replace a malfunctioning module without having to shut down the entire system. This not only saves time but also reduces maintenance costs. With less downtime required for maintenance, the overall availability of the energy storage system is increased, ensuring that it can continue to provide reliable power when needed. Moreover, the simplicity of maintenance makes it an attractive option for businesses with limited technical resources, as less specialized training is required to carry out basic maintenance tasks.

It provides a high level of flexibility in terms of integration with other energy systems. It can be seamlessly integrated with renewable energy sources such as solar panels and wind turbines. In a solar powered building, for instance, the rack battery can store excess energy generated during the day when the sun is shining brightly. This stored energy can then be used at night or during periods of low sunlight to power the building's electrical systems.

It can be integrated with the main power grid in a way that allows for grid support functions. For example, during peak demand periods, the battery can discharge power into the grid, helping to relieve the load and stabilize the grid voltage. On the other hand, during off peak periods, it can charge from the grid at a lower cost, storing energy for later use. This flexibility in integration makes it a valuable asset in the transition towards a more sustainable and resilient energy infrastructure.

LithiumIron Phosphate (LFP) Battery

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.

1 -

001

002

Which is designed for residential and
commercial energy storage applications.

2 -

003 -

Model	MECC-51.2-100	Weight Approximate(kg)	45
Main Parameter		Master LED Indicator	5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
Battery Chemistry	LiFePO4	IP Rating of Enclosure	IP20
Capacity (Ah)	100	Operating Temperature	Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)	Storage Temperature	0℃～35℃
Nominal Voltage (V)	51.2	Humidity	5%~95%
Operating Voltage(V)	43.2~57.6	Altitude	≤2000m
Energy (kWh)	5.12	Cycle Life	≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)	4.6	Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)	Recommend 50	Communication Port	CAN2.0, RS485
Other Parameter		Warranty Period	10 years
Recommend Depth of Discharge	90%	Energy Throughput	16MWh@70%EOL
Dimension (W/H/D, mm)	440133540	Certification	UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

product-1500-527

product-1500-723

FAQ

Q: How often does the battery need maintenance?
A: The product has relatively low maintenance requirements. A monthly visual inspection is recommended to check for any signs of physical damage, such as cracks in the battery casing or loose connections. Every quarter, more in depth checks can be carried out, including measuring the voltage of individual cells, monitoring the temperature of the battery during operation, and ensuring the proper functioning of the battery management system. In high usage environments, these checks may be more frequent. But overall, compared to some traditional battery systems, it demands less regular maintenance, allowing for more continuous and reliable operation.

Q: Can I perform maintenance on it myself?
A: Basic maintenance tasks on the product can be performed by trained personnel. Visual inspections, checking for loose connections, and monitoring basic parameters like voltage can be done with some general knowledge of electrical systems. However, more complex tasks such as replacing individual battery modules or performing in depth diagnostic tests on the battery management system are best left to professional technicians. These tasks require specialized knowledge and tools to ensure the safety of the operator and the proper functioning of the battery system. Professional maintenance also helps in accurately identifying and resolving potential issues early.
