Name: China Lithium Ion Battery Rack Manufacturers Suppliers - Custom Lithium Ion Battery Rack - Chuangxun Energy
Brand: MECC
SKU: 260139878

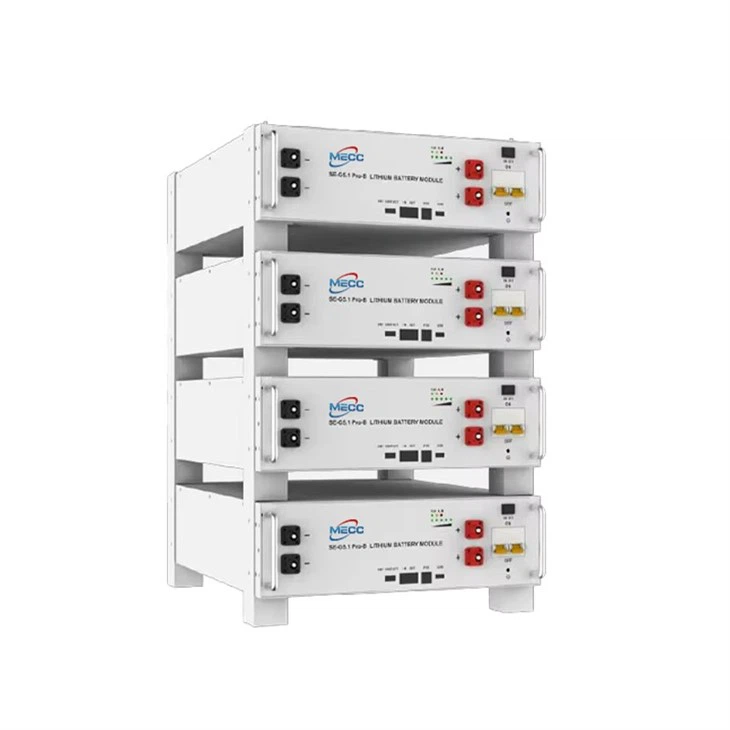

MECC 51.2V 100AH Racked Mount lithium battery

The rack battery is designed with environmental considerations in mind. Lithium ion technology, which forms the core of these batteries, is more eco-friendly compared to some traditional battery chemistries. During the production process, lithium ion battery manufacturing generally produces fewer emissions compared to lead acid batteries, for example. Lead acid battery production involves the use of toxic lead, which can pose environmental and health risks if not properly managed.

In terms of use, lithium ion batteries have a higher energy efficiency, meaning they can store and deliver more energy per unit of raw materials used. This results in less waste generation over their lifespan. Additionally, at the end of their useful life, lithium ion batteries can be recycled more effectively, with many components being reused in the production of new batteries. This reduces the overall environmental impact of the battery and aligns with the growing global trend towards sustainable energy solutions.

It has excellent temperature tolerance, allowing it to operate effectively in a wide range of temperatures. This makes it suitable for deployment in various climates. In frigid outdoor telecommunication stations, where temperatures can drop well below freezing, the rack battery can maintain its performance. Specialized thermal management systems within the battery help regulate its temperature, preventing the electrolyte from freezing and ensuring that the chemical reactions within the battery can occur smoothly.

In warm indoor data centers, where the ambient temperature can be relatively high due to the heat generated by servers and other equipment, the battery can also function properly. The high temperature tolerance of the rack battery ensures that it does not overheat, which could lead to reduced performance and potential damage. This adaptability to different temperature conditions makes it a versatile energy storage solution for a variety of applications across different geographical locations.

LithiumIron Phosphate (LFP) Battery

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.

1 -

001

002

Which is designed for residential and
commercial energy storage applications.

2 -

003 -

Model	MECC-51.2-100	Weight Approximate(kg)	45
Main Parameter		Master LED Indicator	5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
Battery Chemistry	LiFePO4	IP Rating of Enclosure	IP20
Capacity (Ah)	100	Operating Temperature	Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)	Storage Temperature	0℃～35℃
Nominal Voltage (V)	51.2	Humidity	5%~95%
Operating Voltage(V)	43.2~57.6	Altitude	≤2000m
Energy (kWh)	5.12	Cycle Life	≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)	4.6	Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)	Recommend 50	Communication Port	CAN2.0, RS485
Other Parameter		Warranty Period	10 years
Recommend Depth of Discharge	90%	Energy Throughput	16MWh@70%EOL
Dimension (W/H/D, mm)	440133540	Certification	UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

product-1500-527

product-1500-723

FAQ

Q: Is the installation of the product complex?
A: The installation of the product is not overly complex. It's designed with a modular and standardized rack mount format. This means that the individual components can be easily assembled and installed into the equipment rack. Clear and detailed installation guidelines are provided, which assist installers in properly connecting the battery modules, electrical wiring, and any associated control systems. While some basic technical knowledge is beneficial, it doesn't require highly specialized skills. In many cases, a small team with general electrical knowledge can complete the installation in a reasonable amount of time, even in large scale installations.

Q: Do I need special tools for installing it?
A: Generally, only basic hand tools are required for installing the product. You'll likely need a set of wrenches for tightening bolts and nuts that secure the battery modules to the rack. A screwdriver may be needed for attaching covers or accessing certain components. For electrical connections, wire strippers and crimping tools might be used to ensure proper and secure connections. However, for large scale systems where the battery racks are heavy, additional equipment like forklifts or hoists may be required to safely move and position the components. But these are more for handling the physical weight rather than specialized installation tools.
