Rack-Mounted Lithium Battery Overview Rack-mounted lifepo4 batteries are designed for efficient energy storage and management in various applications. These batteries offer high energy density, long cycle life, and fast charging capabilities, making them ideal for renewable energy systems, data centers, and industrial use. Their modular design allows for easy installation and scalability, ensuring reliable power supply and optimal performance.
Energy Density and Efficiency One of the key features of rack-mounted lithium batteries is their high energy density. This allows them to store more energy in a smaller footprint, making them space-efficient. Additionally, these batteries are highly efficient, converting stored energy into usable power with minimal loss, ensuring maximum utilization of energy resources.
Long Cycle Life and Durability Rack-mounted lithium batteries are known for their long cycle life, often exceeding thousands of cycles without significant degradation. This durability makes them a cost-effective solution for long-term energy storage needs, reducing the frequency of replacements and maintenance.
LithiumIron Phosphate (LFP) Battery
Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.
Which is designed for residential and
commercial energy storage applications.
Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Storage Temperature
0℃～35℃
Nominal Voltage (V)
51.2
Humidity
5%~95%
Operating Voltage(V)
43.2~57.6
Altitude
≤2000m
Energy (kWh)
5.12
Cycle Life
≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)
4.6
Installation
Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)
Recommend 50
Communication Port
CAN2.0, RS485
Other Parameter
Warranty Period
10 years
Recommend Depth of Discharge
90%
Energy Throughput
16MWh@70%EOL

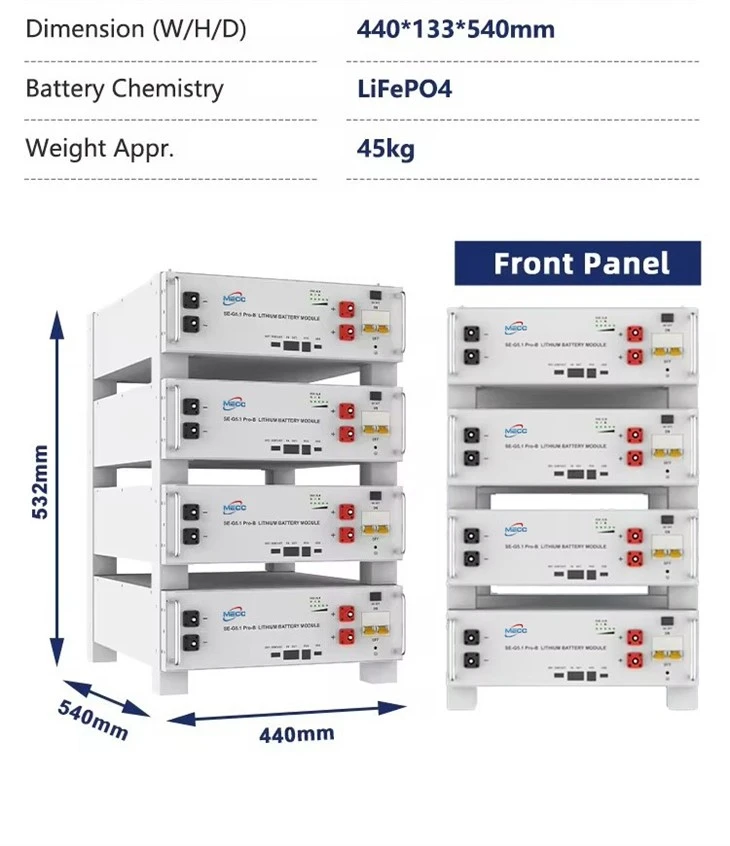

Dimension (W/H/D, mm)
440*133*540
Certification
UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A
FAQ
What are the main advantages of lithium rack batteries over other types of batteries?
Lithium rack batteries offer higher energy density, enabling more power storage in a compact space. They also have a longer cycle life, reducing the need for frequent replacements. Additionally, they typically have a lower self discharge rate, maintain a stable voltage during discharge, and are more environmentally friendly as they contain no harmful heavy metals like lead.
How do lithium rack batteries contribute to energy efficiency in a system?
With their high energy density, they can store more energy with less weight and volume, reducing the energy wasted in moving or supporting the battery itself. Their efficient charging and discharging processes, often with the help of advanced battery management systems, minimize energy losses during these operations, thus contributing to overall system energy efficiency.
What is the typical lifespan of a lithium rack battery?
The lifespan of a lithium rack battery can vary depending on factors such as usage patterns, charging and discharging rates, and operating conditions. On average, under normal usage, they can last for 10 - 15 years or have 2000 - 5000 charge discharge cycles.
