1mwh 2mwh Battery-energy-storage-system

 1Mwh 2Mwh battery energy storage system Container

Optimized for Utility-scale Grid Services, the system supports Frequency Regulation (FR), Peak Shifting, and Black Start capabilities. Its sub-millisecond response time allows grid operators to manage intermittent renewable energy from solar and wind farms efficiently.

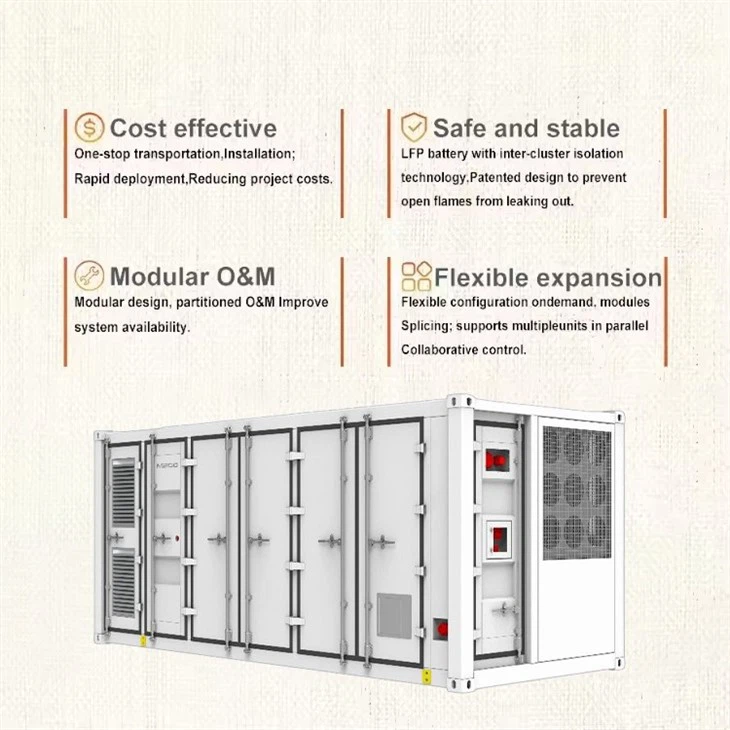

The All-in-one 20ft High-Cube Container architecture packs 2MWh of energy into a compact footprint, featuring integrated PCS, HVAC, and fire systems. This Modular Power Block design allows for rapid multi-MW scaling by simply paralleling additional containers.

Designed with Five-level Safety Protection, our container integrates cell-level monitoring (BMS), pack-level protection, and Zone-based Fire Suppression (Perfluorohexanone).

By achieving a 90% Round-trip Efficiency (RTE) and utilizing cloud-based O&M (Operation & Maintenance), our 1MW/2MWh system significantly lowers the Levelized Cost of Energy (LCOE), offering a superior long-term ROI for large-scale energy arbitrage and renewable integration.

FAQ

Why is liquid cooling becoming the industry standard for 2MWh BESS containers?

 Liquid cooling is replacing air cooling because it provides superior thermal consistency. In a 2MWh system, maintaining a temperature variance of <3°C between cells is critical to preventing thermal runaway and maximizing battery life. Liquid-cooled systems increase energy density by up to 30% and reduce auxiliary power consumption by 15-20%, leading to a significantly lower Levelized Cost of Storage (LCOS).

How does a 1MW/2MWh BESS support Grid Frequency Regulation?

Large-scale BESS systems like the 1MW/2MWh container respond to grid frequency deviations in milliseconds. When frequency drops, the BESS injects power (discharge); when it rises, the BESS absorbs excess energy (charge). This rapid response is essential for stabilizing power grids with high penetrations of intermittent renewable energy like solar and wind.

Can a 1MW/2MWh system perform a "Black Start" for a microgrid?

Yes. Equipped with a grid-forming inverter (PCS), a 1MW/2MWh BESS can act as the reference voltage source to restart a microgrid following a total blackout. It provides the initial power and frequency synchronization needed to bring other generators (like solar or diesel) back online without an external grid connection.

What is the footprint of a standard 1MW/2MWh energy storage container?

Modern high-density designs typically utilize a Standard 20ft High-Cube Container. By integrating the batteries, PCS, HVAC, and fire systems into this standardized footprint, developers can achieve a high energy-to-space ratio, simplifying logistics and reducing the required foundation work at the project site.

How does the Round-Trip Efficiency (RTE) impact the ROI of a 2MWh BESS?

RTE measures the energy recovered from the BESS relative to the energy used to charge it. Our 1MW/2MWh systems target an RTE of >90%. A higher RTE means less energy is lost as heat, which translates directly into higher revenues during energy arbitrage (buying low, selling high) and lower cooling costs, shortening the investment payback period.
