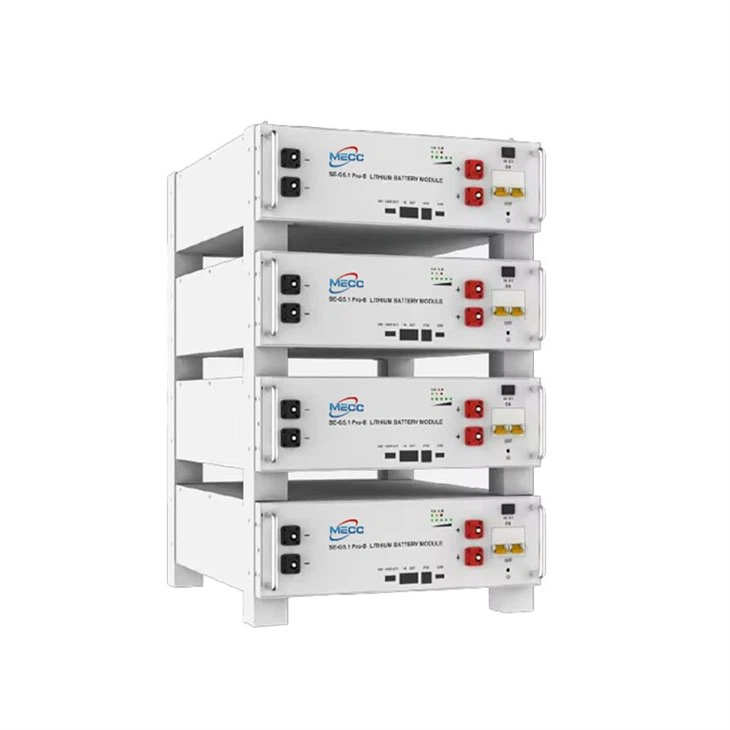

5kwh 24 48v 100AH server rack lifepo4 battery

High energy density: capable of storing 5kWh of energy in a relatively small volume and weight, providing a more efficient energy storage solution compared to some traditional batteries, such as some products with an energy density of around 105Wh/kg.

Voltage stability: The rated voltage is 48V, which can provide stable voltage output for the load and ensure the normal operation of the connected equipment.

Long cycle life: Generally, it can achieve more than 3000 complete charge and discharge cycles, and some products can even reach 6000 cycles. Even under 80% deep discharge, it can maintain a long service life, reduce battery replacement frequency, and lower usage costs.

High safety: Lithium iron phosphate has stable chemical properties and can effectively prevent the battery from exploding or burning during use. Even in extreme situations such as high impact, overcharging, and short circuits, it still has high safety.

Lightweight: about 40% of the same capacity lead-acid battery, easy to handle and install, very advantageous for applications that require frequent movement or weight requirements.

LithiumIron Phosphate (LFP) Battery

Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.

1 -

001

002

Which is designed for residential and
commercial energy storage applications.

2 -

003 -

Model	MECC-51.2-100	Weight Approximate(kg)	45
Main Parameter		Master LED Indicator	5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
Battery Chemistry	LiFePO4	IP Rating of Enclosure	IP20
Capacity (Ah)	100	Operating Temperature	Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)	Storage Temperature	0℃～35℃
Nominal Voltage (V)	51.2	Humidity	5%~95%
Operating Voltage(V)	43.2~57.6	Altitude	≤2000m
Energy (kWh)	5.12	Cycle Life	≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)	4.6	Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)	Recommend 50	Communication Port	CAN2.0, RS485
Other Parameter		Warranty Period	10 years
Recommend Depth of Discharge	90%	Energy Throughput	16MWh@70%EOL
Dimension (W/H/D, mm)	440133540	Certification	UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

product-1500-527

product-1500-723

FAQ

Q: What types of inverters are compatible with the 5kWh 48V rack LiFePO4 battery?
A: Most 48V rated inverters with appropriate power handling capabilities are compatible. For a 5kWh battery, an inverter with a rated power close to the maximum power you intend to draw from the battery is ideal. For example, if you plan to use the battery to power a 3kW load, an inverter with a rated power of 3 - 4kW would be suitable. However, always check the inverter's specifications to ensure it can work with a 48V DC input from a LiFePO4 battery. Some inverters may have specific requirements or compatibility issues with certain battery chemistries, so it's crucial to verify this before installation.

Q: What maintenance is required for the 5kWh 48V rack LiFePO4 battery to ensure long term performance?
A: LiFePO4 batteries generally require minimal maintenance. However, it's important to keep the battery within its recommended operating temperature range, which is typically between - 20°C and 60°C for discharge and 0°C and 60°C for charging. Regularly check the battery's connections to ensure they are tight and free from corrosion. Although LiFePO4 batteries have a low self discharge rate, if the battery is not in use for an extended period, it's advisable to charge it to around 50 - 70% state of charge and store it in a cool, dry place. Also, monitor the battery's performance using the built in battery management system (BMS) to detect any early signs of degradation or malfunction.
