Model |
48100 |
48200 |
|
Specification |
48V100Ah |
51.2V200Ah |
|
Combination |
15S1P |
16S1P |
|
Capacity |
4.8KWh |
10.24KWh |
|
Standard discharge current |
50A |
50A |
|
Max. discharge current |
100A |
100A |
|
Standard Voltage |
48VDC |
51.2VDC |
|
Max. charging current |
50A |
100A |
|
Cycle |
3000~6000cycles @DOD 80%/25℃/0 . 5C |
|
|
Working humidity |
65±20%RH |
|
|
Operating temperature |
-10~+50℃ |
|
|
Working altitude |
≤2500m |
|
|
Cooling method |
Natural cooling |
|
|
Installation |
Wall mount/Stacked |
|
|
Protection level |
IP20 |
|
|
Warranty |
5~ 10 Years |
|
|
Communication |
Default： RS485/RS232/CAN Optional ：WiFi/4G/Bluetooth |
|
|
Certified |
CE ROHS FCC UN38 .3 MSDS |
|
-
Safer:
Cobalt free lithium phosphate (LFP) batteries: safe, long-lasting, efficient, and high power density. Intelligent BMS provides comprehensive protection.
-
Reliable:
Supports high discharge power, IP65, natural cooling, wide temperature range: -20 ° C to 55 ° C
-
Flexible:
Modular design, easy to expand, up to 32 units in parallel, with a maximum capacity of 196kWh. Suitable for residential and commercial applications to increase occupancy rates.
-
Convenient:
The battery module has automatic networking, automatic IP addressing, easy maintenance, remote monitoring and upgrading, and supports USB drive firmware upgrade.

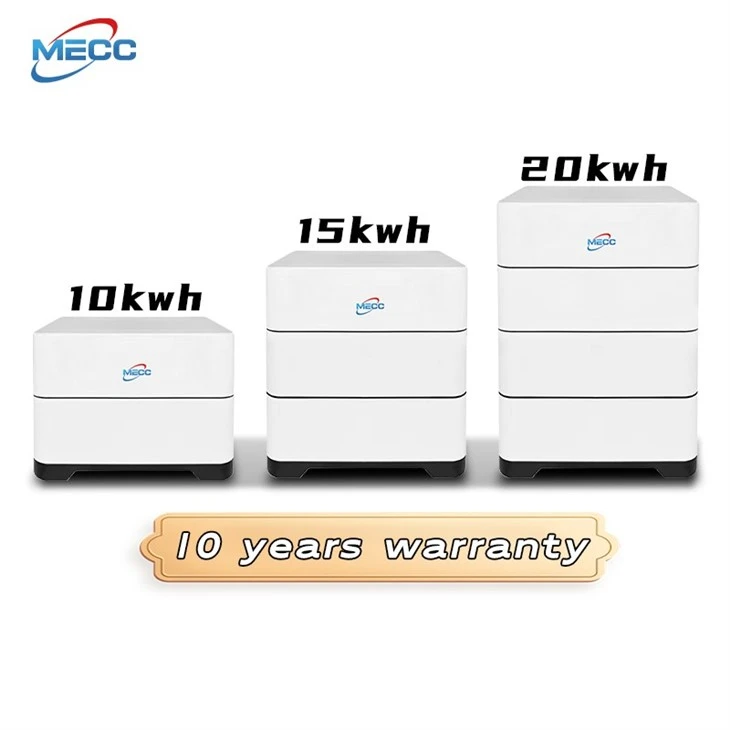

Power wall 48V 100AH
Stacked 48V 100AH
Vertical 48V 200AH
Their modularity supports growth in energy storage capacities as needed.
LiFePO4 batteries are suitable for electric bicycles and scooters.
They provide a cost - effective solution for energy storage compared to traditional methods.
