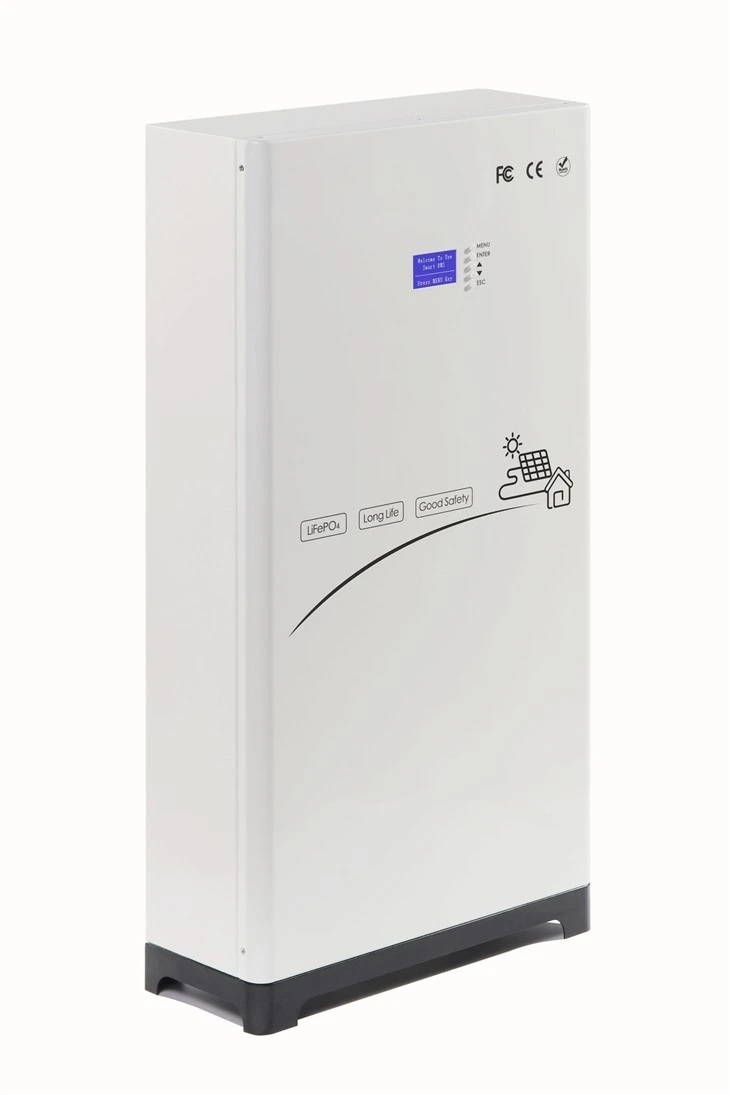

10KWH Power Wall Battery

■ Built-in BMS multiple protection.

■ Long life：6000 cycles.

TIPS

We are a Chinese factory that specializes in producing high-quality Power Wall Battery products.
We have advanced technology, advanced equipment and strict production process, and the quality is guaranteed.
We are committed to being a responsible corporate citizen and giving back to our local communities whenever possible.

Model	48100	48200
Specification	48V100Ah	51.2V200Ah
Combination	15S1P	16S1P
Capacity	4.8KWh	10.24KWh
Standard discharge current	50A	50A
Max. discharge current	100A	100A
Working voltage range	40.5-54VDC	40.5-54VDC
Standard Voltage	48VDC	51.2VDC
Max. charging current	50A	100A
Max. charging voltage	54V	54V
Cycle	3000~6000cycles @DOD 80%/25℃/0 . 5C
Working humidity	65±20%RH
Operating temperature	-10~+50℃
Working altitude	≤2500m
Cooling method	Natural cooling
Installation	Wall mount/Stacked
Protection level	IP20
Max of parallel	15PCS
Warranty	5~ 10 Years
Communication	Default： RS485/RS232/CAN Optional ：WiFi/4G/Bluetooth
Certified	CE ROHS FCC UN38 .3 MSDS
Product Size/mm	400230 585	400230 610
Package Size/mm	500290 630	460250 650
Net weight/kg	42	102
Gross weight/kg	50	112

Power wall battery011

Power wall battery021

Safer:

Cobalt free lithium phosphate (LFP) batteries: safe, long-lasting, efficient, and high power density. Intelligent BMS provides comprehensive protection.
Reliable:
Flexible:

Modular design, easy to expand, up to 32 units in parallel, with a maximum capacity of 196kWh. Suitable for residential and commercial applications to increase occupancy rates.
Convenient:

The battery module has automatic networking, automatic IP addressing, easy maintenance, remote monitoring and upgrading, and supports USB drive firmware upgrade.

Power wall battery061

Power wall battery081

Power wall battery091

Power wall battery101

FAQ

What is the difference between a string inverter and a microinverter?

String inverters manage multiple panels at once, while microinverters are installed on each panel for individual optimization.

Can solar panels be installed on a building with a skylight?

Yes, we can design installations that work around skylights to ensure optimal performance.

How do you handle installation on complex roof structures?

Our team is experienced in handling complex roof structures and will design a solution that maximizes efficiency and aesthetics.

What is a solar battery, and do I need one?

A solar battery stores excess energy for use during non-sunny periods. Whether you need one depends on your energy usage and goals.

Can I use solar panels to power electric vehicles (EVs)?

Yes, solar panels can generate electricity to charge EVs, reducing your overall energy costs.
