48V hybrid inverter 7kw 10kw

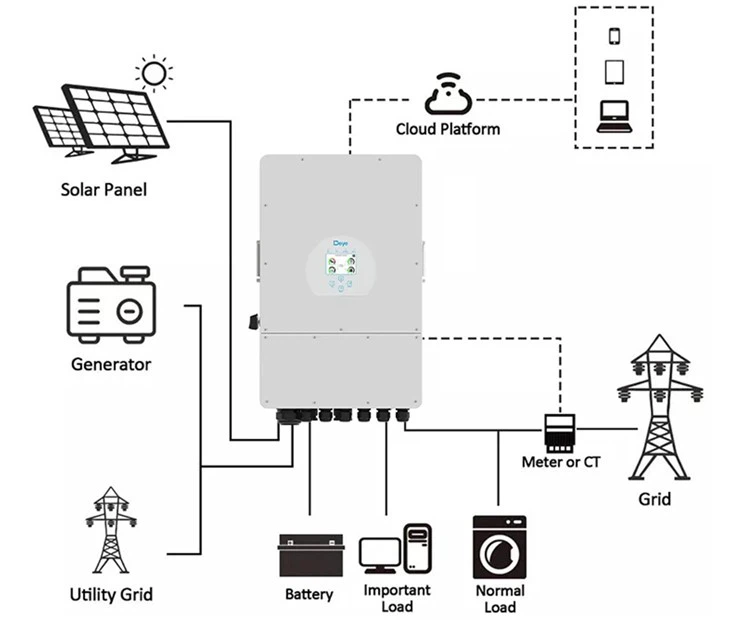

Flexible power supply mode: It can be connected to the public grid to integrate the excess electricity generated by solar panels into the grid, or automatically switch to off grid mode when the grid is cut off, using stored electricity to continue supplying power to the load, providing users with more reliable power guarantee, especially suitable for scenarios that require high power continuity, such as households, small businesses, etc.

Efficient energy conversion: Advanced power conversion technology is commonly used, which has high conversion efficiency. It can efficiently convert the direct current generated by solar panels into alternating current to meet the needs of different loads, while reducing energy loss during the conversion process and improving the utilization efficiency of solar energy. For example, the conversion efficiency of some high-quality hybrid grid connected solar inverters can reach over 90%.

Maximum Power Point Tracking (MPPT): With MPPT function, it can monitor the voltage and current of solar panels in real time, automatically adjust the operating point, and ensure that the panels always operate at maximum power output state. Even under constantly changing lighting conditions, it can ensure that the system obtains as much electricity as possible, thereby improving the performance of the entire photovoltaic power generation system.

Intelligent battery management: If equipped with energy storage batteries, the hybrid inverter also has intelligent battery management function, which can accurately control the charging and discharging process of the battery, prevent overcharging and overdischarging, extend the service life of the battery, and allocate electricity reasonably according to the battery status and load requirements, optimizing the operating cost of the system.

Model	SUN-10K	AC Output Power	10000W
Battery	Lead-acid / Li-lon	Frequency and Voltage	50/60Hz; 230/400V
Battery Voltage	40~60V	Efficiency	＞97%
DC Input Power	13000W	Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
MPPT	200-650V	Communication	RS485; CAN
PV Input Current	26+13	Protection	IP65

PRODUCT DESCRIPTION

hybrid2 -

PRODUCT PACKING

FAQ

How does a hybrid inverter work during a power outage?
In the event of a power outage in the grid, the hybrid inverter will quickly detect the power outage and automatically switch to off grid mode. At this point, if the system is connected to an energy storage battery, the inverter will convert the DC power in the battery into AC power to continuously supply power to the connected load, ensuring the normal operation of critical equipment such as refrigerators and lighting devices in the home. But if there is no energy storage battery or the battery is depleted, and the power grid has not been restored, the inverter will not be able to supply power to the load.

Can hybrid inverters be compatible with different brands and specifications of solar panels?
Most hybrid inverters are designed to be compatible with a variety of different brands and specifications of solar panels. However, before actual installation, it is necessary to check the technical specifications of the inverter to confirm its acceptable input voltage range, current range, and other parameters. Generally speaking, as long as the output parameters of the solar panel are within the range specified by the inverter, compatibility can be achieved. But if the parameters of the mixed battery panels differ too much, it may affect the maximum power point tracking (MPPT) function of the inverter and reduce the overall power generation efficiency of the system.

Do we need professionals to install hybrid inverters?
It is strongly recommended that professionals install hybrid inverters. Because the installation process involves electrical connections, it is not only necessary to ensure the correct wiring connections between the solar panels, inverters, batteries (if any), and the power grid, but also to follow strict electrical safety regulations to prevent dangerous situations such as short circuits and leakage. Professional personnel also possess relevant knowledge and experience, capable of debugging and optimizing the system to ensure optimal performance of the inverter. They can also assist users in completing grid connection applications and other related procedures, ensuring the legal and compliant operation of the entire photovoltaic power generation system.
