Products Description

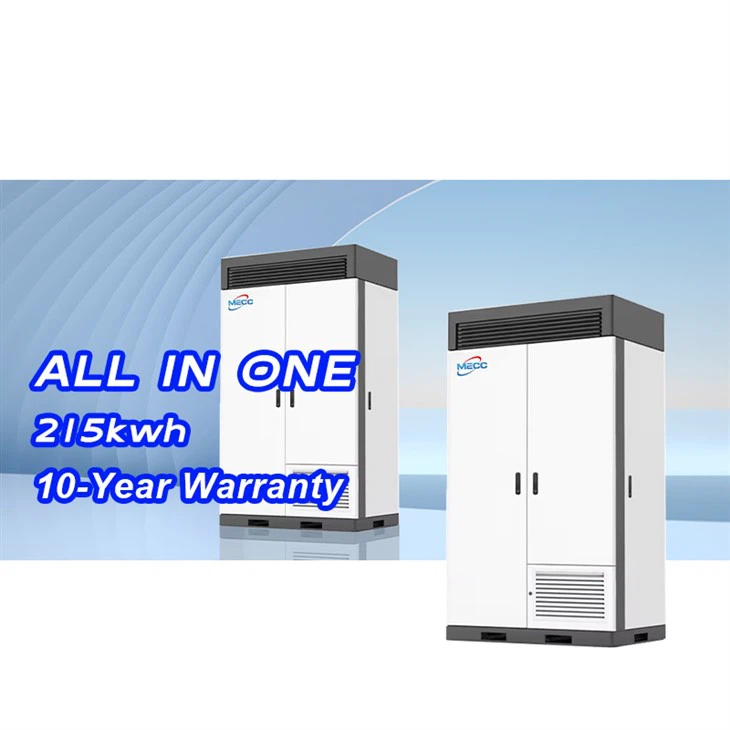

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container

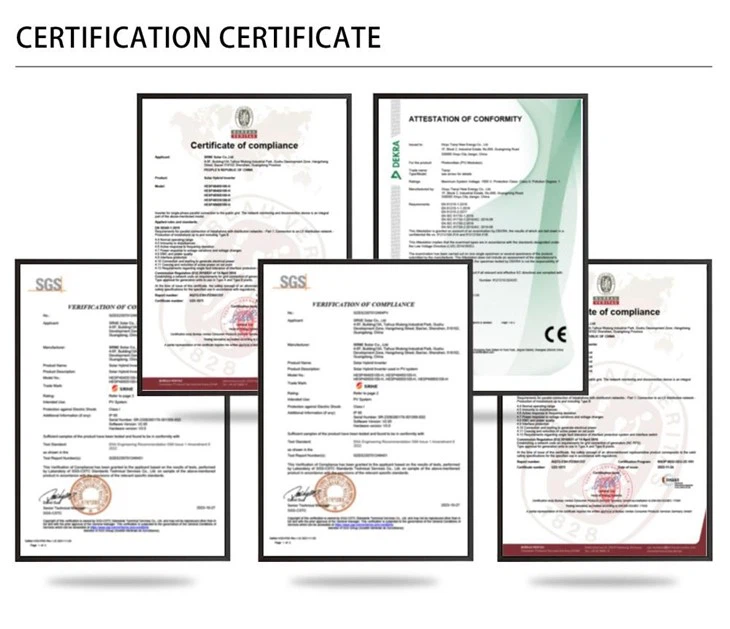

1. Certified Quality & Compliance

Global Certifications: UL 1741 (inverter safety), IEC 61730 (PV module reliability), and UL 9540 (energy storage safety) certified, ensuring compliance with industrial and commercial electrical codes in North America, Europe, and Asia.

ISO Standards: Manufactured under ISO 9001 (quality management) and ISO 14001 (environmental management) systems, with traceable component sourcing (e.g., Tier 1 LiFePO4 cells) to guarantee consistency.

Third-Party Testing: Passed extreme condition trials-vibration (IEC 60068-2-6), thermal shock (-40°F to 185°F), and salt mist (IEC 60068-2-11)-validating durability in harsh industrial and coastal commercial environments.

2. High-Grade Components for Longevity

LiFePO4 Cells: Uses A-grade 280Ah Lithium Iron Phosphate cells with <3% capacity variance (vs. industry average of 5%), ensuring uniform performance. Tested to 6,000+ cycles (15+ year lifespan) with 80% capacity retention, outperforming lower-grade cells by 2–3x in cycle life.

PV Modules: Mono/polycrystalline panels with 22-23% efficiency, featuring anti-reflective glass and corrosion-resistant aluminum frames. Backed by a 25-year linear performance warranty (90% capacity at 10 years, 80% at 25 years).

PCS & BMS: Industrial-grade Power Conversion System (98.5% efficiency) and Battery Management System (BMS) with redundant sensors, preventing overcharging/short circuits and ensuring stable operation for decades.

Products parameter

BATTERY PACK 1P16S
RATED VOLTAGE	51.2V
NOMINAL CAPACITY	280AH
PACK POWER	14.336KWH
WEIGHT	130KG
BATTERY SYSTEM 1P224S
RATED VOLTAGE	716.8V
NOMINAL CAPACITY	280AH
RATED CURRENT	140A
BATTERY POWER	215KWH
VOLTAGE RANGE	627.2-806.4V
MAX EFFICIENCY	≥95%
OPTIMAL WORKING TEMPERATURE RANGE	-20°C-60°C
PROTECTION DEGREE	IP54
DIMENSION	225013001190MM
WEIGHT	2100KG
CERTIFICATES	CE, UN38.3,UL,ROHS, EMC, REACH
