Environmental Benefits Rack-mounted lithium batteries contribute to environmental sustainability by supporting the use of renewable energy sources and reducing reliance on fossil fuels. Their efficient energy storage and management capabilities help minimize energy waste and carbon emissions.
Advanced Monitoring and Control Many rack-mounted lithium batteries come with advanced monitoring and control systems, allowing users to track energy levels, performance metrics, and system health in real-time. This enables proactive maintenance and optimization of energy usage.
Integration with Smart Grids These batteries can be integrated into smart grid systems, enabling intelligent energy management and grid stabilization. They can respond to grid signals, providing demand response services and supporting the integration of distributed energy resources.
LithiumIron Phosphate (LFP) Battery
Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Support high discharge power. IP20, natural cooling, wide temperature range: -20 to 55℃.
Modular design, easy to expand, Max.64 units in parallel, Max. capacity of 327kwh.
Which is designed for residential and
commercial energy storage applications.
Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Storage Temperature
0℃～35℃
Nominal Voltage (V)
51.2
Humidity
5%~95%
Operating Voltage(V)
43.2~57.6
Altitude
≤2000m
Energy (kWh)
5.12
Cycle Life
≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)
Usable Energy (kWh)
4.6
Installation
Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Charge/Discharge Current (A)
Recommend 50
Communication Port
CAN2.0, RS485
Other Parameter
Warranty Period
10 years
Recommend Depth of Discharge
90%
Energy Throughput
16MWh@70%EOL

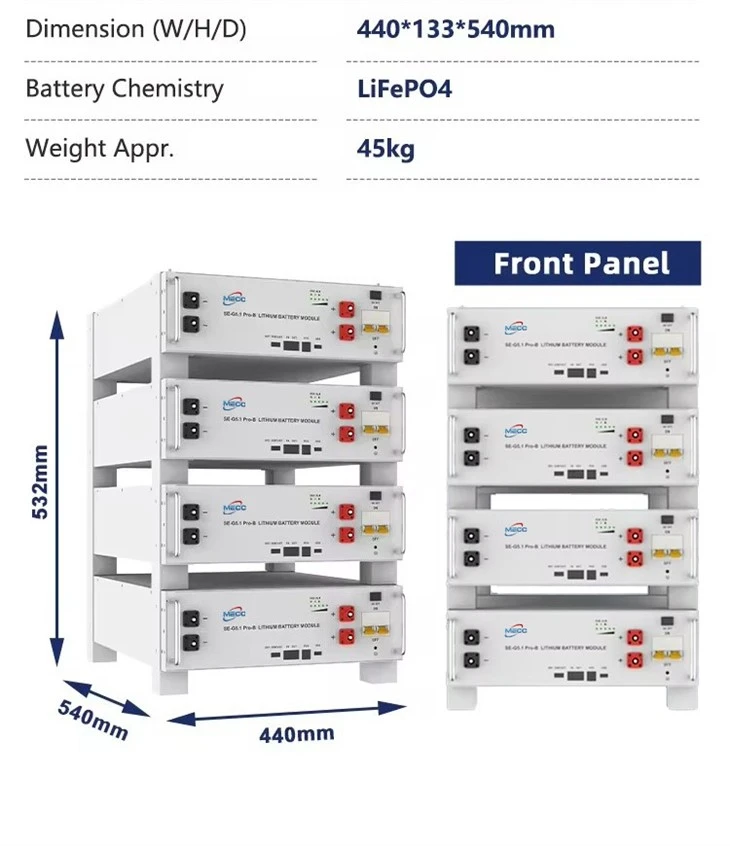

Dimension (W/H/D, mm)
440*133*540
Certification
UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A
FAQ
How do I install a lithium racked battery?
Installation should be carried out following the manufacturer's instructions. Ensure that the installation area is well ventilated to prevent heat buildup. Connect the battery to the appropriate power source and load using the correct cables and connectors. Make sure all connections are secure to avoid loose connections that could cause electrical arcing or poor performance. In some cases, professional installation may be required, especially for larger or more complex systems.
Can lithium racked batteries be recycled?
Yes, lithium rack batteries are recyclable. Recycling lithium ion batteries helps recover valuable materials such as lithium, cobalt, nickel, and copper. Many regions have established recycling programs for lithium based batteries to reduce environmental impact and conserve resources. It is important to dispose of used lithium rack batteries through proper recycling channels.
How do lithium racked batteries perform in terms of power output stability?
Lithium rack batteries generally offer good power output stability. Their voltage remains relatively constant during the discharge process until they reach a low state of charge. The battery management system also helps maintain stable power output by regulating the current flow and preventing sudden drops in voltage due to factors like internal resistance changes or uneven cell performance.
