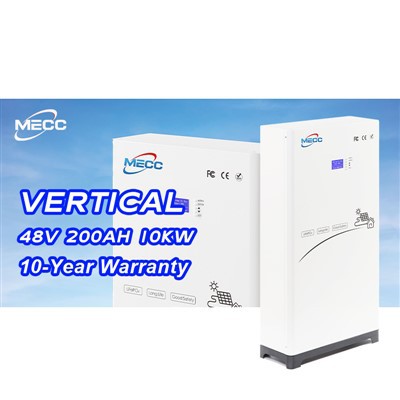

5/10KWH Power Wall Batteries

■ High security：Grade A and Brand New.
■ Built-in BMS multiple protection.

■ Long life：6000 cycles.
■ High capacity：Parallel use of battery packs to meet the needs of large-capacity applications

■ 48V/51.2V 100AH/200AH

Model	48100	48200
Specification	48V100Ah	51.2V200Ah
Combination	15S1P	16S1P
Capacity	4.8KWh	10.24KWh
Standard discharge current	50A	50A
Max. discharge current	100A	100A
Working voltage range	40.5-54VDC	40.5-54VDC
Standard Voltage	48VDC	51.2VDC
Max. charging current	50A	100A
Max. charging voltage	54V	54V
Cycle	3000~6000cycles @DOD 80%/25℃/0 . 5C
Working humidity	65±20%RH
Operating temperature	-10~+50℃
Working altitude	≤2500m
Cooling method	Natural cooling
Installation	Wall mount/Stacked
Protection level	IP20
Max of parallel	15PCS
Warranty	5~ 10 Years
Communication	Default： RS485/RS232/CAN Optional ：WiFi/4G/Bluetooth
Certified	CE ROHS FCC UN38 .3 MSDS
Product Size/mm	400230 585	400230 610
Package Size/mm	500290 630	460250 650
Net weight/kg	42	102
Gross weight/kg	50	112

Power wall battery011

Power wall battery021

Safer:

Cobalt free lithium phosphate (LFP) batteries: safe, long-lasting, efficient, and high power density. Intelligent BMS provides comprehensive protection.
Reliable:

Supports high discharge power, IP65, natural cooling, wide temperature range: -20 ° C to 55 ° C
Flexible:

Modular design, easy to expand, up to 32 units in parallel, with a maximum capacity of 196kWh. Suitable for residential and commercial applications to increase occupancy rates.
Convenient:

The battery module has automatic networking, automatic IP addressing, easy maintenance, remote monitoring and upgrading, and supports USB drive firmware upgrade.
