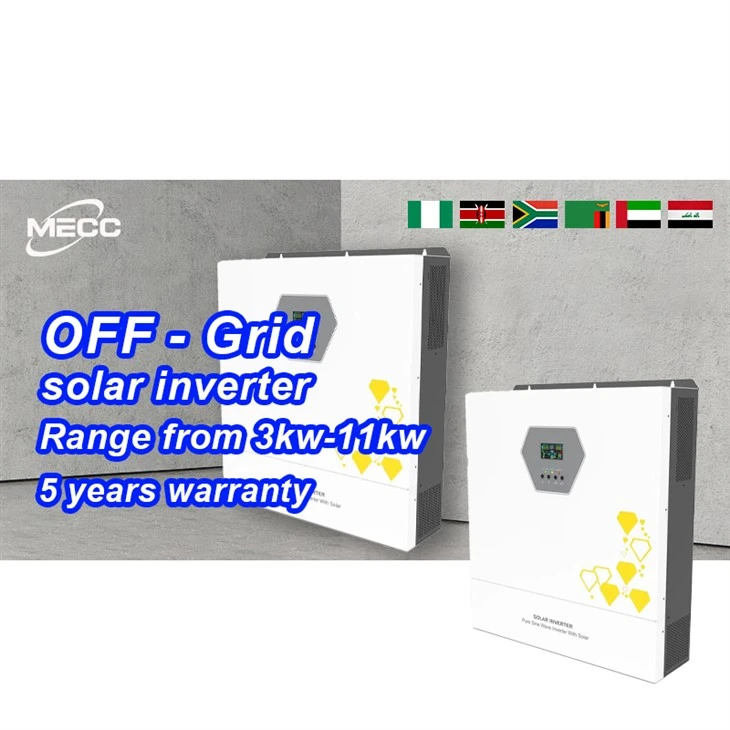

MPPT With WIFI 5.5kw Off Grid Inverter

Off Grid Charge Inverter is essential component in off-grid solar power systems. The inverters convert DC (direct current) electricity generated by solar panels or stored in batteries into AC (alternating current) electricity that can be used to power household appliances and electronics.

Product Introduction

Products Description

Off Grid Inverter

Off - grid inverters can efficiently integrate with solar panels, wind turbines, and other renewable energy technologies.

They often support battery storage systems, allowing for energy use during non - generating hours.

Off - grid systems can be expanded as energy needs grow, making them adaptable for various applications.

Products parameter

ModeI	GD3024ML	GD3024JMH	GD5548JMH	GD11048MHB
PV Input
PV maxinput power	1500W	3500W	5500W	5500W+5500W
MPPT voltage range	30~115Vdc	120~430Vdc	120~430Vdc	120~450Vdc
PV charging method	MPPT*1	MPPT*1	MPPT*1	MPPT*2
Max PV input voltage	145Vdc	450Vdc	450Vdc	450Vdc
Max PV charging current	60A	100A	100A	80A+80A
Battery
Rated voltage	24Vdc	24Vdc	48Vdc	48Vdc
Constant voltage charging voltage (Optional)	28.2Vdc	28.2Vdc	56.4Vdc	56.4Vdc
Floating charge voltage (Optional)	27Vdc	27Vdc	54Vdc	54Vdc
AC Input
Phase	L+N+PE
Nominal Voltage	208/220/230/240VAC
Voltage Range	154-264VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode)
Frequency Range	50Hz/60Hz(Adaptive)
AC Output
Rated Power	3000W	3000W	5500W	11000W
Max power	6000VA	6000VA	10000VA	20000VA
Output Voltage(AC)	208/220/230/240VAC±5%
Max AC charging current	60A	60A	100A	80A+80A
Output Frequency	50/60Hz±0.1%
Waveform	Pure sine wave
Peak efficiency(battery mode)	>94%	>94%	>94%	>94%
Display&communication
LCD display	Operating mode/load/input/output,etc.
Operating environment temperature	0~40℃
Operating environment humidity	20%~95%(Non condensing)
Storage temperature	-15~60℃
Noise	≤50db
Size LWH(mm)	495312125
Weight(KG)	9.5	9.5	12.5	21.5
