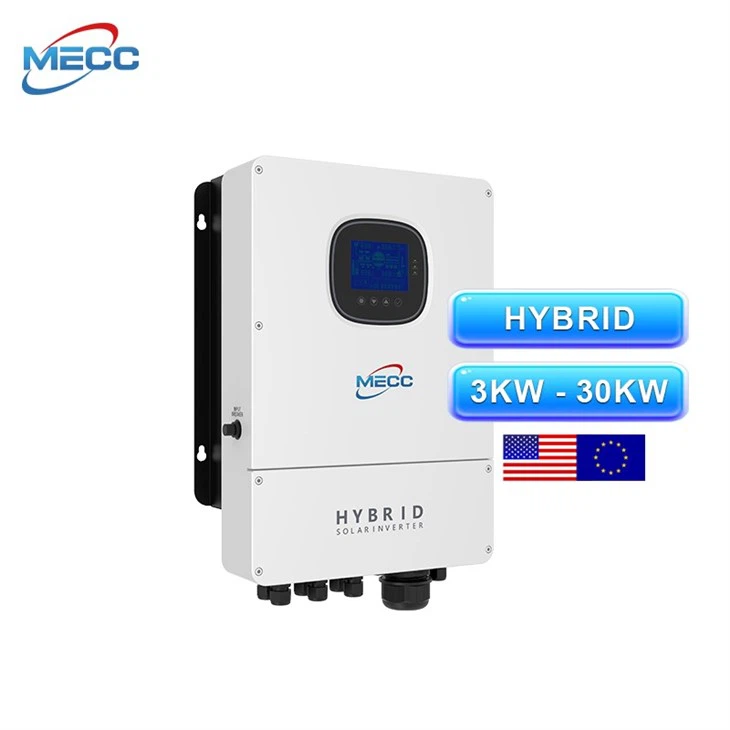

30kW Power Output: Delivers 30kW continuous AC power (surge capacity up to 60kW for 10 seconds) to handle industrial-grade loads-large HVAC systems, electric vehicle charging stations, commercial refrigeration, and manufacturing equipment. Compatible with 3-phase (380V/400V) grids, ensuring balanced power distribution across phases for stable operation.
Triple MPPT Trackers: Three independent MPPT channels (max DC input 800V each) with 99.4% efficiency, optimizing power extraction from 50-60 x 550W solar panels. Each tracker adapts to shading, mixed panel orientations, or uneven light (e.g., large rooftops with structural obstructions), ensuring no energy is wasted.
Hybrid Operational Modes:
Grid-Tied: Exports excess solar power to the grid for net metering credits, reducing reliance on utility electricity and lowering operational costs.
Off-Grid: Runs solely on solar + battery storage, ideal for remote commercial sites (e.g., farms, mining camps) without grid access.
Backup: Auto-switches to battery power in <10ms during grid outages, keeping critical systems (servers, medical facilities, production lines) operational to avoid downtime.
Battery Compatibility: Works with 48V/192V lithium-ion (LiFePO4, NMC) and large-scale lead-acid batteries, supporting up to 500kWh storage via parallel/series connections. Intelligent BMS (Battery Management System) integration prevents overcharging, deep discharge, and thermal issues, extending battery lifespan by 30%.
HYBRID SOLAR INVERTERS AVAILABLE
HYBRID SOLAR SYSTEMS HAVE THE ADVANTAGES OF BOTH ON-GRID AND OFF-GRID
ALL DEVICES ARE CONNECTED TO HYBRID SOLAR INVERTERS
THEREFORE, THE HYBRID INVERTER IS THE MOST IMPORTANT EQUIPMENT IN THE SYSTEM.

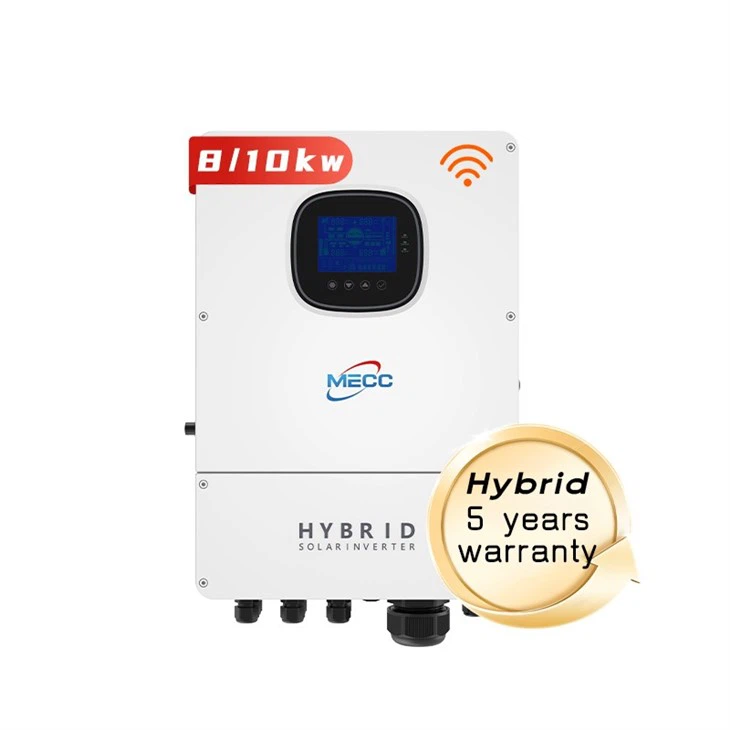

| MODEL | SPI-8K-U | SPI-10K-U |
|---|---|---|
| INVERTER | ||
| Rated Output Power | 8000W | 10000W |
| Max.Peak Power | 16000W | 20000W |
| Rated Output Voltage | 120/240Vac(L1/L2/N/PE split phase) | |
| Rated AC Frequency | 50/60Hz | |
| BATTERY | ||
| Battery Type | Li-ion/Lead-Acid /User Defined | |
| Rated Battery Voltage | 48V | |
| Max.MPPT Charging Current | 200A | |
| PV INPUT | ||
| Num. of MPPT Trackers | 2 | |
| Max.PV Array Power | 11000W | |
| Max.Input Current | 22/22A | |
| MPPT Voltage Range | 125~425Vdc | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.9% | |
| Max. Battery Inverter Efficiency | 92% | |
| GENERAL | ||
| Dimensions | 620*435*130mm(2*1.4*0.4ft) | |
| Operating Temperature Range | -10~55℃℃,>45°C derated | |
| Protection Degree | IP20, indoor Only | |
| COMMUNICATION | ||

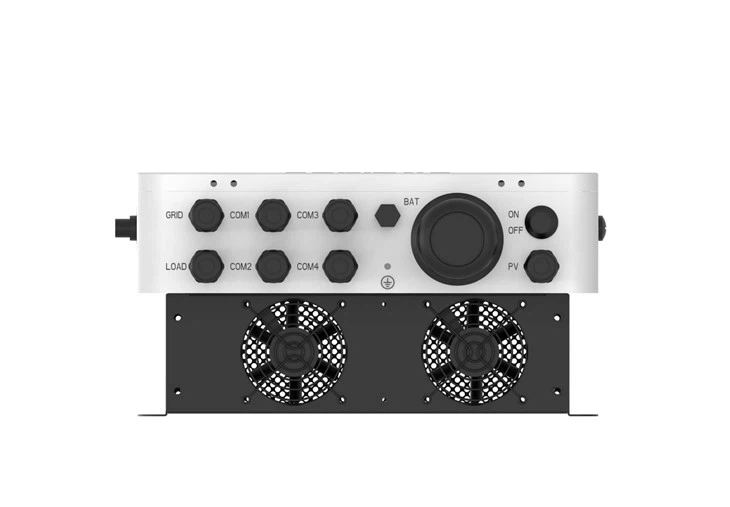

| Embedded interfaces | RS485/CAN/USB/ Dry contact | |
| External Modules (Optional) | Wi-Fi/GPRS | |
| CERITIFACATION | ||
| Safety | IEC62109-1,IEC62109-2,UL1741 | |
| RoHS | Yes | |
| EMC | EN61000-6-1,EN61000-6-3,FCC 15 class B | |
