Hybrid Solar Inverter 12kw MPPT

Products Description 10-12kw Hybrid Inverter Flexible Support for Battery Topologies Whether you prefer a simple single-battery setup or a more complex multi-battery configuration with series or parallel connections, the inverter has you covered. It offers flexible support for various battery...

Products Description

10-12kw Hybrid Inverter

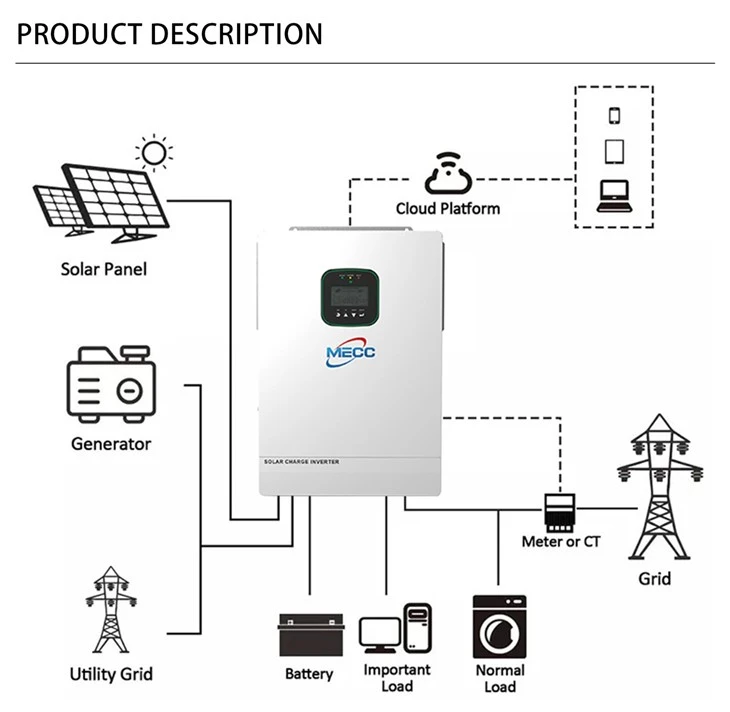

Flexible Support for Battery Topologies

Whether you prefer a simple single-battery setup or a more complex multi-battery configuration with series or parallel connections, the inverter has you covered. It offers flexible support for various battery topologies, allowing you to design an energy storage system that best suits your space, budget, and power requirements. This versatility in battery compatibility gives you the freedom to customize your renewable energy solution for optimal performance.

Convenient Mobile Installation Options

For those on the go or in need of a temporary power solution, the inverter offers convenient mobile installation options. It can be easily mounted on trailers, RVs, or boats, providing portable power generation and storage capabilities. Whether you're embarking on a road trip, camping adventure, or sailing voyage, it enables you to harness solar energy and enjoy the comforts of electricity wherever you are.

Automated Optical Inspection (AOI)

During PCB production, automated optical inspection systems are used. Cameras capture high-resolution images of the boards, and advanced image processing software analyzes them for solder defects, misaligned components, and other visual anomalies. AOI provides a non-contact, rapid inspection method that complements electrical testing, catching issues that might otherwise be overlooked.

TYPE	GES48100M200-500	GES48120M220-500
INVERTER
Rated Output Power	10000W	12000W
Max.Peak Power	15000W	18000W
Rated Output Voltage	120/240Vac(L1/L2/N/PE split phase)
Rated AC Frequency	50/60Hz
BATTERY
Battery Type	Li-ion/Lead-Acid
Rated Battery Voltage	48V
Max.MPPT Charging Current	200A
PV INPUT
Num. of MPPT Trackers	2
Max.PV Array Power	12000W
Max.Input Current	22/22A
MPPT Voltage Range	90Vdc~450Vdc
EFFICIENCY
MPPT Tracking Efficiency	99%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	620450132
Operating Temperature Range	-10~55℃,>45°C derated
COMMUNICATION
Embedded interfaces	RS485/USB/ Dry contact
External Modules (Optional)	Wi-Fi/GPRS

product-1000-97

hybrid inverter071

Factory

Employee Incentive and Recognition Programs

To boost morale and productivity, we've instituted robust employee incentive and recognition programs. Performance-based bonuses reward outstanding achievements in quality, productivity, and innovation. Monthly "Employee of the Month" awards spotlight individuals who've gone above and beyond, with their stories shared across the factory. Long-service awards honor loyalty, and suggestions that lead to process improvements are handsomely rewarded. These initiatives foster a culture of excellence, where employees feel valued and motivated to contribute their best.

FAQ

Can I upgrade the inverter's firmware myself?

Yes, you can upgrade the inverter's firmware yourself in most cases. The inverter is designed with a user-friendly firmware update process. Through the dedicated mobile app or web portal, you'll receive notifications when new firmware versions are available. You can then follow the step-by-step instructions provided to download and install the update. However, it's crucial to ensure a stable internet connection during the process and not interrupt the update to avoid potential issues.

What is the inverter's response time to load changes?

The inverter has a remarkably fast response time to load changes. It can instantaneously adjust its output to match a new load demand within milliseconds. This rapid reaction prevents voltage sags or surges that could harm your sensitive electronics. Whether you suddenly turn on a high-power appliance or experience a drop in overall load, the inverter quickly stabilizes the power supply, ensuring seamless operation of your devices.
