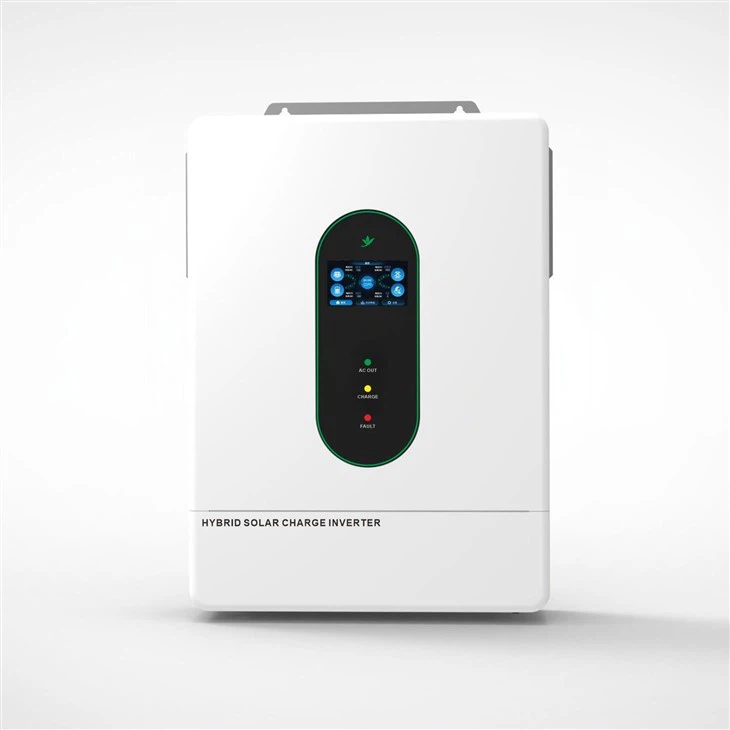

Hybrid 12kw Solar Inverter MPPT

Hybrid 12kw Solar Inverter MPPT

12kW High-Capacity Hybrid Performance: Delivers 12kW continuous power (18kW peak) to integrate solar arrays (up to 15kW PV input), battery storage, and grid, ideal for large residential complexes, small commercial buildings, or industrial workshops with high energy demands.

Product Introduction
Products Description
10-12kw Hybrid Inverter



Triple MPPT Trackers (99.9% Efficiency): Equipped with 3 independent MPPT trackers, each optimizing energy capture from separate PV strings. Adapts to partial shading, mixed orientations (e.g., rooftop + ground-mounted panels), or varying sunlight, boosting daily solar yield by 10–18% vs. dual-MPPT models.





Wide PV Input Range: Each MPPT supports 100V–600V DC input, compatible with diverse solar panel configurations (series/parallel setups). Accommodates up to 15kW total PV input, allowing 25% oversizing to maximize energy harvest during peak sunlight hours.





Rapid MPPT Response: Adjusts to changing light conditions in <80ms, minimizing power loss during cloud cover, moving shadows, or sudden weather shifts. Ensures stable output even in fluctuating environments.

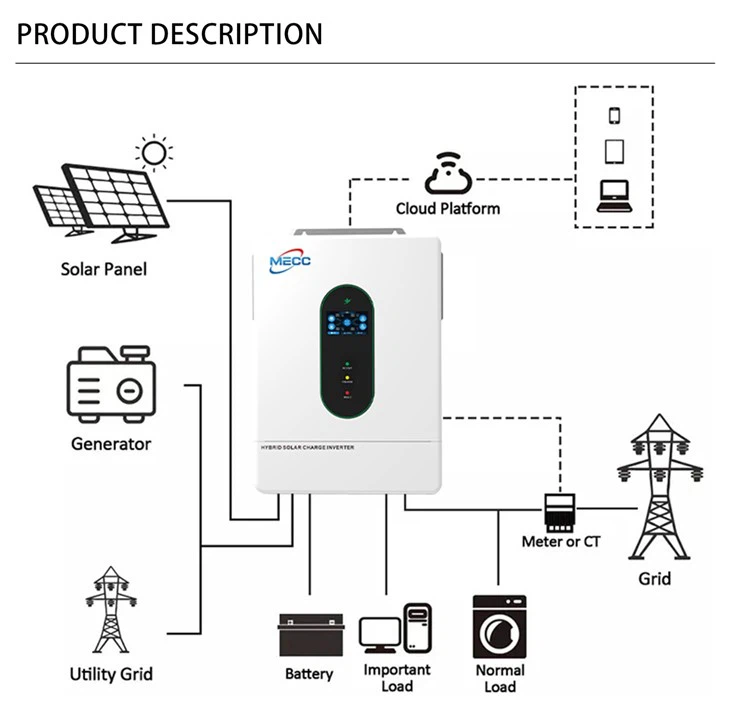

Hybrid Grid/Off-Grid Flexibility: Operates in grid-tied mode (exports excess solar to the grid for net metering) and switches to battery backup in <10ms during outages. Powers critical loads (HVAC systems, industrial machinery, medical equipment) without interruption.





Broad Battery Compatibility: Works with 48V/96V LiFePO4, lead-acid, and lithium-ion batteries (supports 10kWh–60kWh storage). MPPTs prioritize solar energy for battery charging, reducing grid reliance and extending battery lifespan to 6,000+ cycles.







01



TYPE
GES48100M200-500
GES48120M220-500
INVERTER
Rated Output Power 10000W 12000W
Max.Peak Power 15000W 18000W
Rated Output Voltage 120/240Vac(L1/L2/N/PE split phase)
Rated AC Frequency 50/60Hz
BATTERY
Battery Type Li-ion/Lead-Acid
Rated Battery Voltage 48V
Max.MPPT Charging Current 200A
PV INPUT
Num. of MPPT Trackers 2
Max.PV Array Power 12000W
Max.Input Current 22/22A
MPPT Voltage Range
90Vdc~450Vdc
EFFICIENCY
MPPT Tracking Efficiency 99%
Max. Battery Inverter Efficiency 92%
GENERAL
Dimensions
620*450*132
Operating Temperature Range -10~55℃,>45°C derated
COMMUNICATION
Embedded interfaces RS485/USB/ Dry contact
External Modules (Optional) Wi-Fi/GPRS



02



product-1000-97



product-1042-794
product-804-392

product-804-402

product-616-604
product-618-604
product-612-604




hybrid inverter071


Factory


Employee Wellness Facilities

A healthy workforce is a productive one, which is why our factory houses comprehensive employee wellness facilities. A fully equipped gym with personal trainers offers exercise classes and fitness programs tailored to shift schedules. There's a relaxation lounge with massage chairs and quiet zones for meditation. Nutritional counseling and healthy cafeteria options round out the offerings. We also provide mental health support, with on-site counselors available for confidential consultations, ensuring our employees' holistic well-being.





FAQ



What is the inverter's standby power consumption?

The inverter is designed with low standby power consumption in mind. In standby mode, when it's not actively converting power but remaining ready to operate, it typically consumes only a few watts of electricity. This minimal draw ensures that you don't waste energy when the solar panels aren't generating sufficient power or during periods of low demand. The exact standby power consumption value can be found in the product specifications, and it contributes to maximizing the overall energy efficiency of your system.



How does the inverter protect against electromagnetic interference?

To protect against electromagnetic interference (EMI), the inverter incorporates several design features. It has shielding materials built into its enclosure to block external EMI from affecting its internal circuitry. Additionally, filters are installed on the power input and output lines to attenuate any unwanted electrical noise. The circuit board layout is also carefully designed to minimize the potential for EMI generation and susceptibility. These measures ensure that the inverter operates smoothly without causing or being affected by interference from nearby electronic devices, maintaining the integrity of your power supply and other connected equipment.
