AC Output Waveform Quality
It produces a high-quality AC output waveform, close to a pure sine wave. This is essential for powering sensitive electronic equipment without introducing harmonic distortion, which can cause overheating, reduced efficiency, or malfunction in appliances like computers, televisions, and audio systems.
Anti-Islanding Protection
To ensure the safety of utility workers and the integrity of the grid, the goods has anti-islanding protection. This mechanism detects when the grid is down and quickly stops power generation to prevent the formation of an "island" of power that could pose risks to those working on the grid.
Firmware Development and Updating Process
The inverter's firmware is developed using industry-standard programming languages. Engineers write code to control all aspects of the inverter's operation. During the development cycle, extensive debugging and testing are carried out. For firmware updates, an over-the-air (OTA) update mechanism is implemented. This allows users to receive and install new firmware versions wirelessly, ensuring their inverters stay current with the latest features and bug fixes.
| TYPE |
GES48100M
|
GES48120M
|
| INVERTER |
|
|
| Rated Output Power |
10000W |
12000W |
| Max.Peak Power |
15000W |
18000W |
| Rated Output Voltage |
120/240Vac(L1/L2/N/PE split phase) |
| Rated AC Frequency |
50/60Hz |
| BATTERY |
|
|
| Rated Voltage |
48V |
| Max.MPPT Charging Current |
200A |
| PV INPUT |
|
|
| Num. of MPPT Trackers |
2 |
| Max.PV Array Power |
12000W |
| Max.Input Current |
22/22A |
| MPPT Voltage Range |
90Vdc~450Vdc
|
| EFFICIENCY |
|
|
| MPPT Tracking Efficiency |
99% |
| Max. Efficiency |
92% |
Factory Safety and Emergency Response Systems
Safety is a top priority in our factory. We have comprehensive safety protocols in place, including mandatory safety gear for employees, clearly marked walkways and emergency exits. Fire suppression systems, smoke detectors, and first-aid stations are strategically located. Regular safety drills are conducted to ensure employees know how to respond in case of an emergency.
FAQ
Can the inverter be used with thin-film pv panels?
Yes, it can be used with thin-film solar panels. The inverter has adjustable input parameters to accommodate the different voltage and current characteristics of thin-film panels. It can optimize the power generation from these panels using its MPPT technology. However, it's important to note that the efficiency of thin-film panels may be lower compared to monocrystalline or polycrystalline panels, and the inverter needs to be properly configured to get the best performance.
What is the process for installing it?

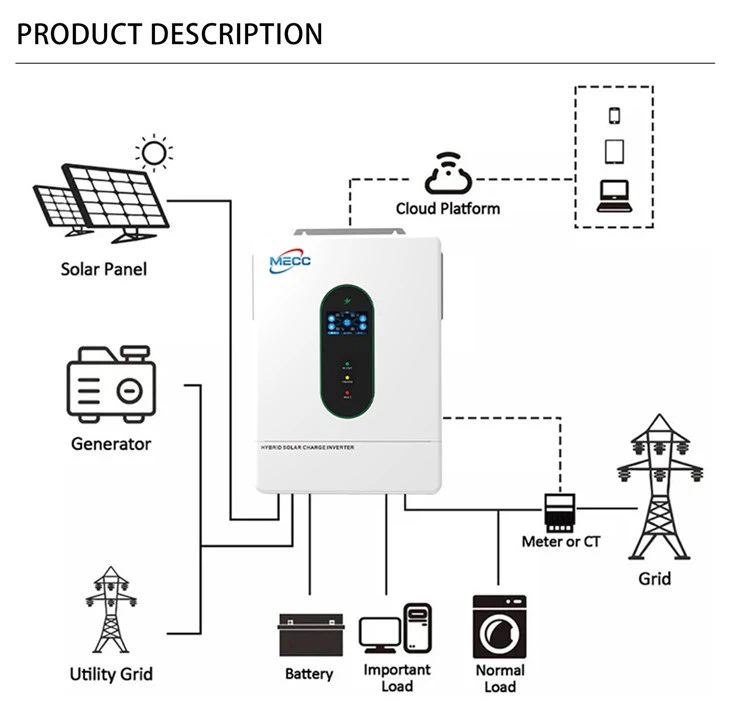

The installation process typically involves several steps. First, you need to choose an appropriate installation location with proper ventilation, access to the grid, and proximity to the solar panels and batteries. Then, mount the inverter using the provided brackets and hardware. Connect the solar panels to the inverter's DC input terminals, following the correct polarity. Connect the batteries to the appropriate terminals, also ensuring correct polarity. Finally, connect the inverter to the grid using the AC output terminals and follow the local electrical codes for proper grounding and wiring. It's recommended to have a professional installer perform the installation if you're not familiar with electrical work.
