Product Description

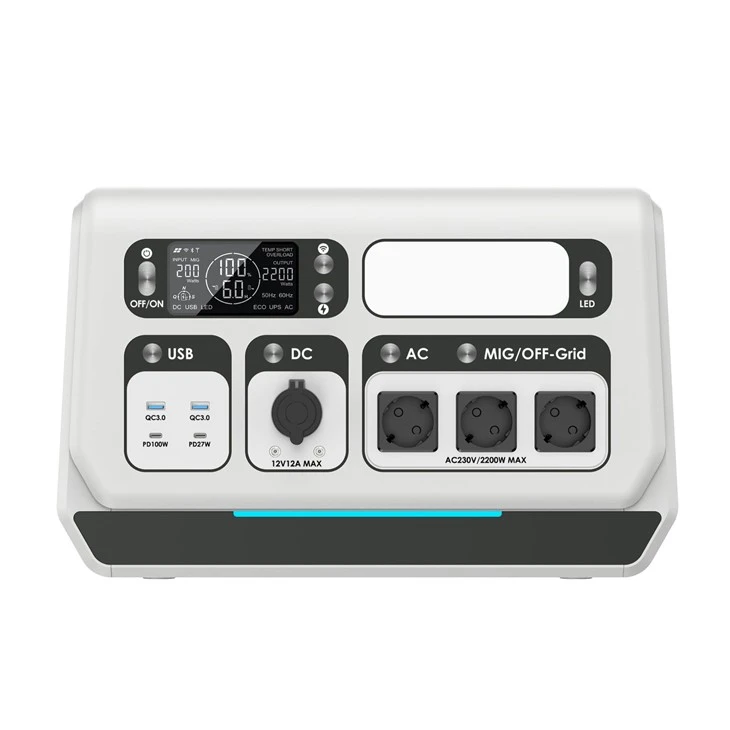

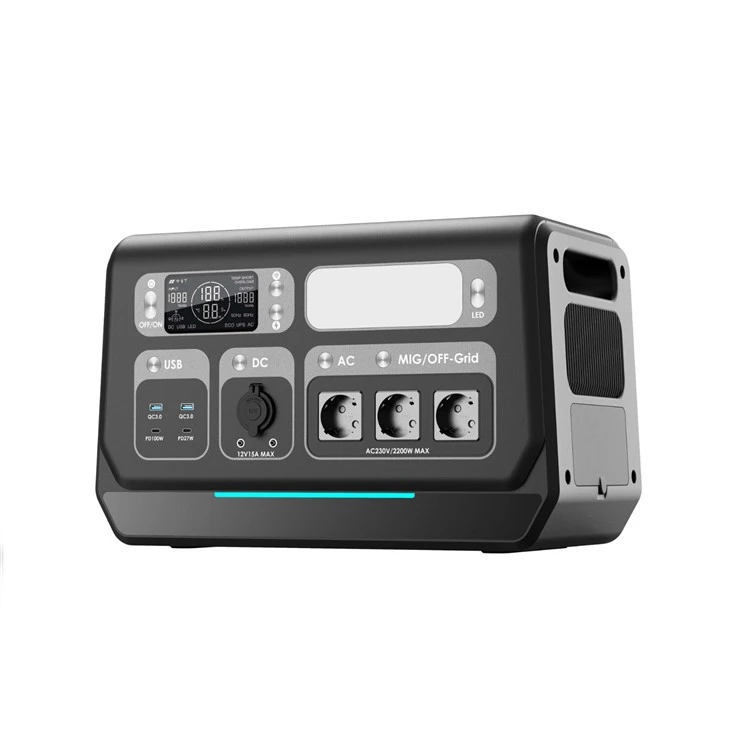

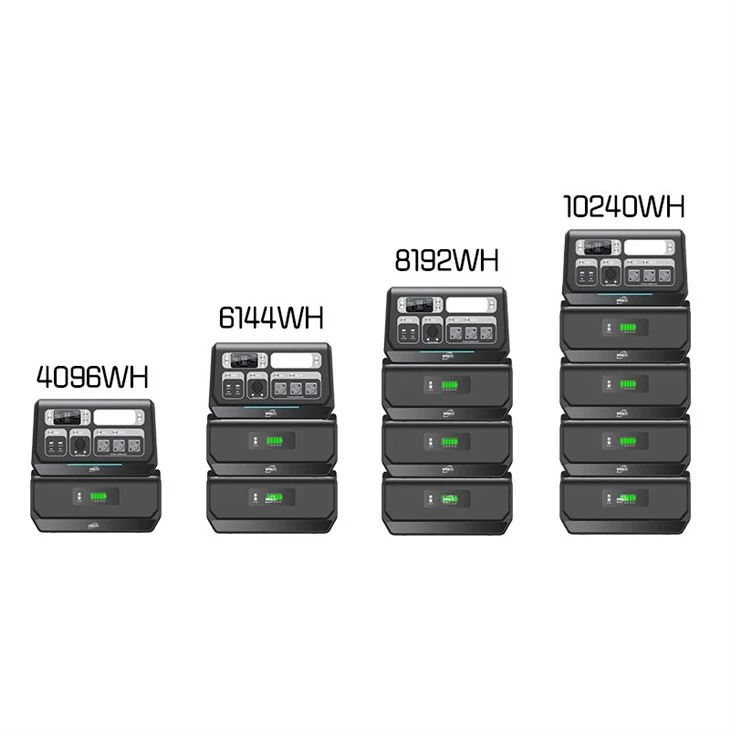

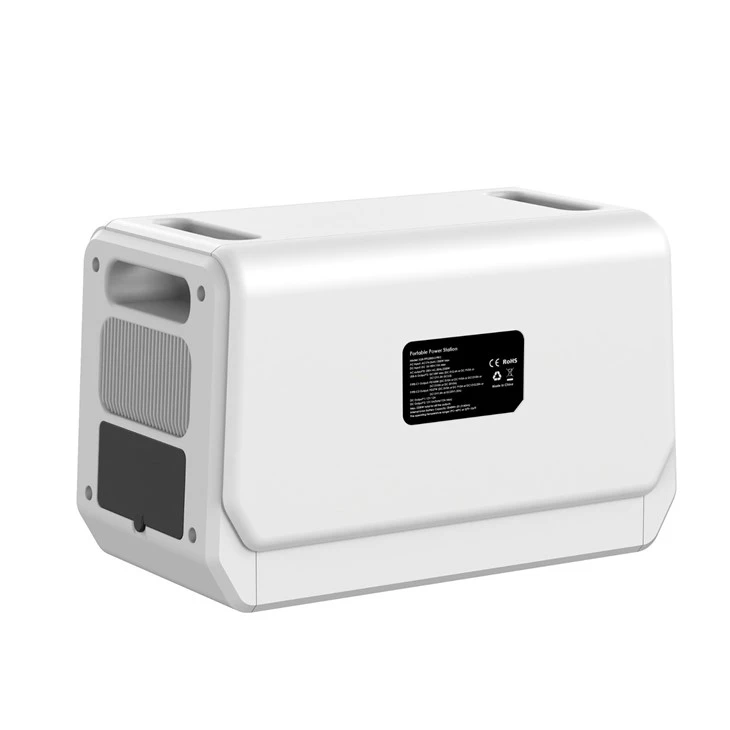

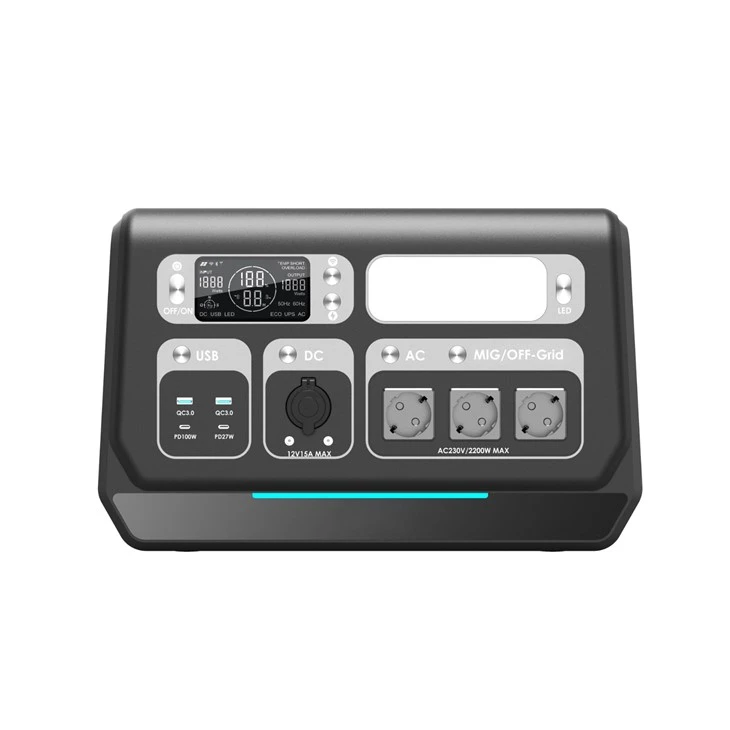

2200W LIFEPO4 Portable Emergency Power 2048WH-10240WH
2048Wh Capacity for Grid Balance:
Stores 2048Wh of energy to offset grid usage-charges during off-peak hours (lower tariffs) and discharges during high-tariff periods, cutting electricity bills by 20–30% for households. Powers essentials for 8–12 hours during grid outages.
230V Grid Connectivity for Global Use:
Designed for 230V grids (Europe, Asia, global markets), with plug-and-play integration. Recharges fully in 8–10 hours via standard 230V outlets; automatically syncs with grid frequency for stable power delivery.
Portable & Maneuverable Design:
Weighs ~26kg with built-in wheels and a telescopic handle, easy to move between rooms, garages, or outdoor spaces. Compact size (≈45×30×35cm) fits in storage closets when not in use.
Multi-Port Charging for All Devices:
4× 230V AC outlets, 2× USB-C PD (100W), 4× USB-A (5V/2.4A), 1× 12V car port, and 1× DC5521 port-charging smartphones, laptops, and appliances alongside grid-connected devices.
LiFePO4 Longevity for Daily Grid Use:
3000+ charge cycles (8+ year lifespan) with 80% capacity retention, enduring daily grid-tied operation (off-peak charging, peak discharging) without rapid degradation.
Product parameters
|
SPECIFICATION
|
||
|
Battery Power
|
2048Wh±5% Lithium iron phosphate Batteries
|
|
|
AC Input Charging
|
AC174~264V Bi-directional inverter charging power 1600W MAX
|
|
|
CAR Input Charging
|
DC12-24V/10A 240W Max
|
|
|
Solar Panel Input
|
PV18~145V/25A 1600W Max
|
|
|
DC Output
|
1x Cigarette Lighter 13.8V/12A Max
2x DC Rated Output 13.8V/5A Max Total 12A Max
|
|
|
AC Output
|
Pure Sine Wave Output
AC Continuous Output: 2200W Max
AC Max Output: 4400W@0.2 seconds
AC Voltage: 230VAC±10%
Output Frequency: 50Hz±5%
|
|
|
Micro-Inverter Connection Output
|
Germany: 200W/400W/600W/800W MAX
Adjustment of grid output power via APP
Other European countries: The equipment can support up to 2200W grid connected output (additional application needs to be submitted to relevant authorities)
|
|
|
AC Plug support
|
3x 3-pin- EU outlet
|
|
|
USB Output
|
USB-A1: Blue QC18w Max, 5V2.4A&9V2A&12V1.5A QC3.0
USB-A2: Blue OC18W Max, 5V2.4A&9V2A&12V1.5A QC3.0
USB-C1: PD100W Max, 5V3A&9V3A&12V3A&15V3A&20VSA PD3.0
USB-C2: PD27W Max, 5V3A&9V3A&12V2.25A&15V1.8A&20V1.35A
|
|
|
Bulb Type
|
3W Max,3 Levels (L/M/H)+ SOS
|
|
|
Operation temperature
|
0°C~40°C
|
|
|
Lifecycle
25'℃ 90%DOD Cycle Life
|
After 3500 cycles, Capacity retention>70% Initial Capacity (Charge and discharge power ≤ 1000W per time, under 25°C ambient temperature Cycle Life)
|
|
|
Charge While Discharge
|
Support
|
|
|
Product Size
|
465*260*295mm L*W*H
|
|
|
Product Weight
|
23kgs
|
|
|
MultiSafety Protections
|
a. Short-circuit protection b.Over-current protection
c.Over-voltage protection d.Low-voltage protection
e.Over-load Protection f. Over-temperature protection
|
|
|
Certification
|
VDE4105/CE/ROHS/UN38.3/MSDS/OCEAN/AIR shipment Report
|
|
By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection
If it is equipped with the option to be charged via solar panels, it becomes a sustainable power solution, especially useful in areas with abundant sunlight. It is completely safe to use, thanks to its comprehensive protection mechanisms. It is a valuable asset in field work, ensuring that essential tools and equipment can operate without interruption. It plays a crucial role in maintaining communication during emergencies, which is essential for seeking help or staying in touch with family and friends.
FAQ
What is the maximum power output?
The maximum power output varies by model. Smaller and more basic models might have a maximum power output of a few hundred watts, which is sufficient for powering a single or a few low-power devices simultaneously. Mid-range models typically have a maximum power output ranging from 1000 to 3000 watts, enabling them to handle a combination of medium-power devices such as a laptop, a few lights, and a small fan. Larger and more powerful units can have a maximum power output of several kilowatts, allowing them to power high-power appliances like refrigerators, microwaves, and even some power tools for short periods. The maximum power output determines the types and number of devices that the power supply can support effectively.
Can it be used to power a refrigerator?
It depends on the power consumption of the refrigerator and the capacity of the emergency power supply. Smaller refrigerators with lower power ratings, such as mini-fridges or some energy-efficient models, can be powered for a limited time. For example, a mini-fridge with a power consumption of around 50 watts might be powered for several hours by a mid-range portable grid-connected emergency power supply. However, larger refrigerators with higher power requirements, especially those with compressors that draw significant power during startup, may only be powered for a short duration or may not be supported at all by some smaller power supplies.
